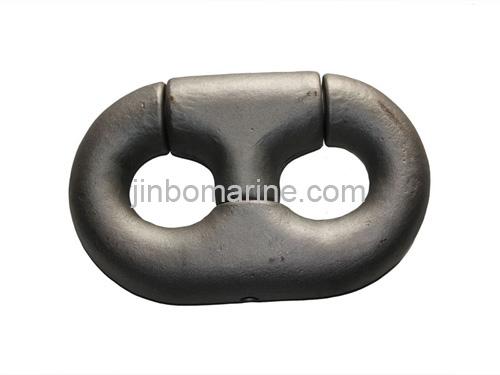

Detachable Chain Connecting Link C type

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Detachable Chain Connecting Link C type:

Connecting Link C type is used for connecting the mooring lines for the same size, widely used for mooring chains.

Main Specification:

CHAIN SIZE A B C D E F G WEIGHT PROOF TEST BREAK TEST
mm inches mm mm mm mm mm mm mm kg lbs KGF KGF
13- 16 1/2 - 5/8 95 63 22 16 19 21 12 0.5 1 14651 23668
19 3/4 114 74 24 19 22 24 13 1 2 21771 34020
21- 22 13/16 - 7/8 133 86 28 22 25 28 16 1.5 3.5 29030 44452
24- 25 15/16 - 1 152 102 35 25 29 31 17 2.3 5.1 38000 54300
27- 29 1-1/16 - 1-1/8 172 114 40 29 32 35 19 3.3 7.3 49200 70400
30- 32 1-3/16 - 1-1/4 191 127 44 32 36 39 21 4.6 10.1 59500 84900
33- 35 1-5/16 - 1-3/8 210 140 48 35 40 43 23 6.2 13.7 70700 101300
36- 38 1-7/16 - 1-1/2 229 152 53 38 43 47 26 7.9 17.4 83300 118900
40- 42 1-9/16 - 1-5/8 248 165 57 42 47 50 28 10 22 102000 143400
43- 44 1-11/16 - 1-3/4 267 178 62 45 50 56 30 12.5 27.6 111900 159900
46- 48 1-13/16 - 1-7/8 286 191 64 48 55 60 32 14.5 32 130000 185100
50- 51 1-15/16 - 2 305 197 64 51 59 64 34 16.3 35.9 145400 207700
52- 54 2-1/16 - 2-1/8 324 209 67 54 63 68 36 20 44.1 162000 231500
56- 58 2-3/16 - 2-1/4 343 222 71 58 66 71 38 23.6 52 185400 265000
59- 60 2-5/16 - 2-3/8 364 235 78 61 70 76 41 28 61.7 199600 285200
62- 64 2-7/16 - 2-1/2 381 246 79 64 74 79 43 32.2 71 223000 319000
66- 67 2-9/16 - 2-5/8 400 259 83 67 77 83 45 37 81.6 242900 347000
68- 70 2-11/16 - 2-3/4 419 271 87 70 81 87 47 45 99.2 263500 376400
71- 73 2-13/16 - 2-7/8 438 283 91 73 85 91 49 49 108 285000 407000
75- 76 2-15/16 - 3 457 296 95 76 88 95 51 55 121 308200 440200
78- 79 3-1/16 - 3-1/8 476 308 99 79 92 99 53 63 139 332100 474500
81- 83 3-3/16 - 3-1/4 495 320 103 83 96 103 55 73 161 360400 514800
84- 86 3-5/16 - 3-3/8 514 333 107 86 99 107 57 80 176 384400 549100
87- 89 3-7/16 - 3-1/2 533 345 111 89 103 111 60 93 205 409000 584300
90- 92 3-9/16 - 3-5/8 553 357 115 92 107 115 62 97.6 215 434800 621200
94- 95 3-11/16 - 3-3/4 572 370 119 95 111 119 64 116.2 256 462300 660100
97- 98 3-13/16 - 3-7/8 591 382 128 98 114 123 66 123 271 490000 700000
100-102 3-15/16 - 4 610 394 132 102 118 127 68 131 289 522100 746000
105 4 1/8 629 419 147 105 127 132 70 175 386 550000 785000
111 4 3/8 667 456 167 111 138 140 75 208 459 607000 867200
114 4 1/2 686 480 190 114 147 144 77 227 500 637300 910900

For more information, please feel free to contact us.
