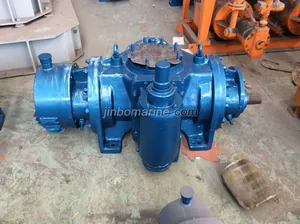

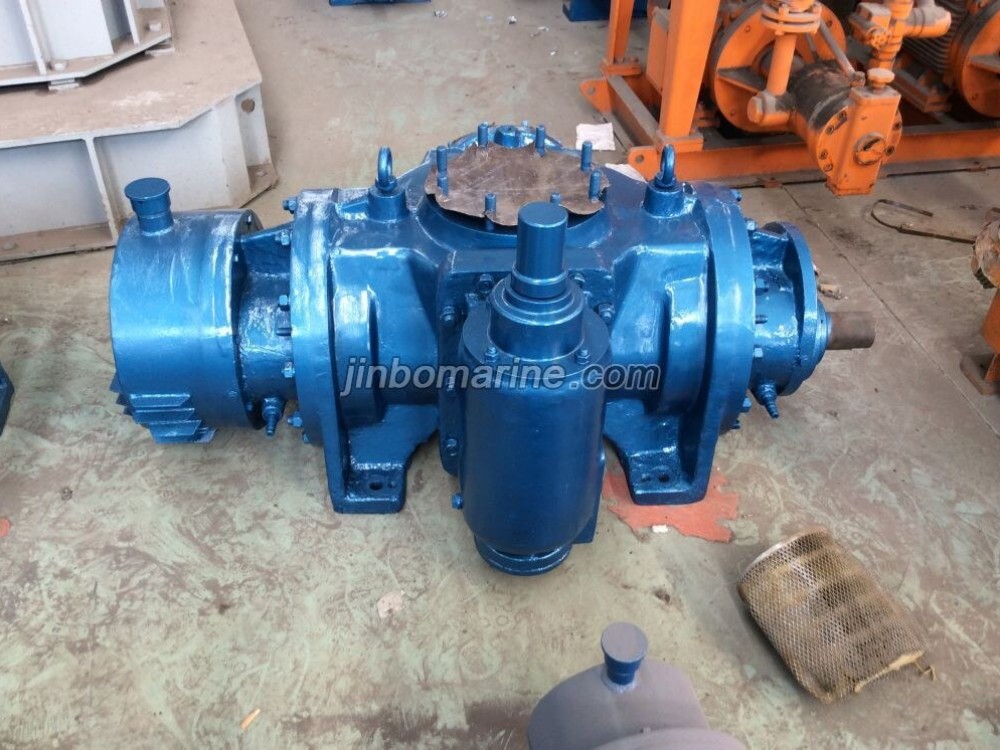

2W.W Twin Screw Cargo Oil Stripping Pump

  • Category:Screw Pump
  • Material:Cast steel pump case, Stainless stain pump shaft
  • Standards:standard
  • Certificate:CCS，Rina，ABS, BV, GL,
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

2W.W Twin Screw Pump

2W.W Twin Screw Pump used for Marine loading pump, bottom storehouse, sewage treatment, mainly include the lubrication pump, fuel pump.

Main Specification

The highest pressure 4.0MPa

Capacity range 1～1000m3/h

Temperature range -20～120℃

The viscosity of the medium 1～3000mm2/s，when lower the speed of the rotation it can be up to 106mm2/s

The viscosity of the medium will largely influence the twin screw pump, the nominal discharge of the pump means the discharge under the certain viscosity condition, in order to ensure the pump to work on the high efficiency working condition, when the test is not enough, we suggest to select the speed of the flotation according to the following viscosity.

Type Pressure 1450r/nin 950r/min 720r/min
30cSt 75cSt 150cSt 300cSt 450cSt 750cSt 1500cSt 2500cSt
Mpa m3/h kw m3/h kw m3/h kw m3/h kw m3/h kw m3/h kw m3/h kw m3/h kw
2.5-15 0.6 2.4 1.5 3 2.2 3.2 2.2 3.3 2.2 1.8 1.5 1.8 2.2 1.3 2.2 1.3 2.2
1 1.7 2.2 2.6 2.2 2.9 3 3.1 3 1.7 2.2 1.7 2.2 1.2 2.2 1.2 2.2
2.5-20 0.4 3.9 1.5 4.3 1.5 4.4 2.2 4.5 2.2 2.6 1.5 2.6 2.2 1.9 2.2 1.9 2.2
0.6 3.4 1.5 4 2.2 4.2 2.2 4.3 2.2 2.5 2.2 2.5 2.2 1.8 1.5 1.8 2.2
2.8-18 0.6 4.3 2.2 4.8 2.2 4.9 3 5 3 2.9 2.2 2.9 3 2.1 3 2.1 3
1 3.7 3 4.4 4 4.7 4 4.8 4 2.7 3 2.7 3 2 3 2 4
2.8-24 0.4 6.3 2.2 6.6 2.2 6.7 3 6.8 3 4 2.2 4 3 2.9 2.2 2.9 3
0.6 5.9 2.2 6.4 4 6.5 4 6.6 4 3.8 3 3.8 3 2.7 3 2.7 3
3.1-22 0.6 7.7 3 8.2 4 8.3 4 8.4 4 5 3 5 4 3.7 3 3.7 4
1 7 4 7.8 5.5 8 5.5 8.1 5.5 4.8 4 4.8 5.5 3.5 4 3.5 5.5
3.1-30 0.4 11.1 3 11.4 3 11.5 4 11.6 5.5 6.9 3 6.9 4 5.1 3 5.1 4
0.6 10.6 4 11.1 5.5 11.3 5.5 11.4 5.5 6.7 4 6.7 5.5 4.9 4 4.9 5.5
3.2-18 1.6 - - 4.8 7.5 5.8 7.5 6.3 7.5 2.4 5.5 2.4 5.5 0.9 4 0.9 5.5
2 - - 4.2 7.5 5.5 7.5 6.1 11 2.3 7.5 2.3 7.5 0.9 4 0.9 5.5
2.5 - - 3.4 11 5 11 5.8 11 2.1 7.5 2.1 7.5 0.8 5.5 0.8 5.5
3.2-24 1 5.5 5.5 7.6 7.5 8.4 11 8.7 11 4.6 5.5 4.6 5.5 2.7 5.5 2.7 5.5
1.25 4.6 7.5 7.2 11 8.2 11 8.5 11 4.5 5.5 4.5 7.5 2.6 5.5 2.6 7.5
1.6 3.4 7.5 6.7 11 7.8 11 8.3 11 4.3 7.5 4.3 7.5 2.5 5.5 2.5 7.5
3.2-30 0.6 9.7 5.5 11 5.5 11.5 5.5 11.7 7.5 6.8 5.5 6.8 5.5 4.3 5.5 4.3 5.5
1 8 7.5 10.2 7.5 10.9 7.5 11.2 7.5 6.5 5.5 6.5 5.5 4.3 5.5 4.3 5.5
3.2-44 0.4 16.4 5.5 17.5 7.5 17.9 7.5 18.1 7.5 11.2 4 11.3 5.5 8 4 8 4
0.6 15.2 7.5 17 7.5 17.4 7.5 17.6 7.5 10.9 5.5 11 5.5 7.8 5.5 7.8 5.5
3.4-24 1.6 - - 7.4 11 9 11 9.8 11 5.7 7.5 5.7 7.5 4.3 7.5 4.3 11
2 - - 6.5 11 8.5 11 9.5 15 5.5 11 5.5 11 4.1 7.5 4.1 11
2.5 - - 5.3 15 7.8 15 9.1 15 5.1 11 5.1 11 3.9 11 3.9 11
3.4-30 1 8.3 7.5 11.4 7.5 12.4 11 12.9 11 7.6 7.5 7.6 7.5 5.6 7.5 5.6 7.5
1.25 6.9 11 10.7 11 12.1 11 12.6 11 7.4 7.5 7.4 11 5.5 7.5 5.5 11
1.6 5 11 9.9 11 11.5 11 12.3 15 7.1 11 7.1 11 5.3 7.5 5.3 11
3.4-40 0.6 14.8 5.5 16.8 7.5 17.5 7.5 17.8 11 10.6 7.5 10.6 7.5 7.8 7.5 7.8 7.5
1 12.2 11 15.5 11 16.6 11 17.2 11 10 7.5 10 7.5 7.4 7.5 7.4 7.5
3.4-56 0.4 21.8 5.5 23.2 7.5 23.7 7.5 24 11 14.3 5.5 14.4 7.5 10.5 5.5 10.5 7.5
0.6 20.2 7.5 22.5 11 23.1 11 23.4 11 13.8 7.5 13.9 7.5 10.1 7.5 10.1 7.5
4.0-26 1.6 - - 12.4 15 14.6 15 15.7 18.5 9.3 11 9.3 15 7 11 7 15
2 - - 11.2 15 13.9 18.5 15.3 22 9 15 9 15 6.8 15 6.8 15
2.5 - - 9.6 18.5 13.1 22 14.8 22 8.6 15 8.6 15 6.6 15 6.6 15
4.0-32 1 13.9 11 18.2 15 19.6 15 20.3 15 12.2 11 12.2 15 9.1 11 9.1 11
1.25 12 15 17.3 15 19.1 15 20 18.5 11.9 11 11.9 15 8.9 11 8.9 15
1.6 - - 16.1 18.5 18.4 18.5 19.5 22 11.5 15 11.5 15 8.6 11 8.6 15
4.0-44 0.6 24.6 11 27.4 11 28.3 11 28.8 15 17.3 11 17.3 11 12.8 11 12.8 11
1 21.1 15 25.7 15 27.2 15 27.9 18.5 16.6 11 16.6 15 12.3 11 12.3 15
4.0-64 0.4 37.2 11 39.1 11 39.8 11 40.1 15 24.1 11 24.2 11 17.8 11 17.8 11
0.6 35 11 38 15 38.9 15 39.4 18.5 23.5 11 23.7 11 17.3 11 17.3 11
4.5-30 1.6 17.4 18.5 22.3 22 24 22 24.8 30 14.9 18.5 15 18.5 11.1 18.5 11.2 18.5
2 15.1 22 21.3 30 23.4 30 24.4 30 14.5 22 14.6 22 10.9 18.5 11 22
2.5 12.3 30 20 30 22.6 30 23.9 30 14.2 22 14.3 22 10.6 18.5 10.6 22
4.5-40 1 29.1 18.5 32.4 18.5 33.5 22 34 22 20.5 18.5 20.6 18.5 15.3 15 15.3 18.5
1.25 27.5 18.5 31.6 22 33 30 33.7 30 20.2 18.5 20.3 22 15 18.5 15.1 22
1.6 25.3 30 30.6 30 32.3 30 33.2 30 19.9 22 20 22 14.7 18.5 14.8 22
4.5-52 0.6 41.8 15 43.9 15 44.6 18.5 45 22 27.3 15 27.4 18.5 20.3 15 20.3 15
1 38.9 22 42.4 22 43.6 30 44.2 30 26.6 18.5 26.7 18.5 19.7 15 19.7 18.5
4.5-72 0.4 57.3 15 58.8 15 59.3 18.5 59.6 22 36.1 15 36.2 15 26.9 15 26.9 18.5
0.6 55.5 18.5 57.7 22 58.5 22 58.9 22 35.5 22 35.6 18.5 26.3 18.5 26.3 22
5.0-28 2.5 17.3 37 24.7 37 27.2 37 28.4 45 17.1 30 17.3 37 12.9 30 12.9 37
3.2 - - 23.1 45 26.3 45 27.9 55 16.7 37 17 45 12.7 37 12.8 37
4 - - 21.3 55 25.3 55 27.3 75 16.2 45 16.5 45 12.4 37 12.6 45
5.0-40 1.6 34.6 37 39.5 45 41.1 45 42 45 25.4 30 25.6 37 19.9 30 20 37
2 32.3 37 38.4 45 40.5 45 41.5 45 25.1 37 25.3 37 18.8 37 18.9 37
5.0-40 2.5 29.4 45 37.1 45 39.7 55 41 55 24.7 37 24.9 37 18.5 37 18.6 37
5.0-52 1 50.7 30 53.9 30 55 37 55.5 37 33.8 30 34 30 25.3 30 25.4 30
1.25 49.1 30 53.1 37 54.4 37 55.1 45 33.5 30 33.7 37 25 30 25.1 37
1.6 46.9 37 52 45 53.7 45 54.6 55 33.1 37 33.3 37 24.7 30 24.7 37
5.0-64 0.6 66.1 22 68.1 22 68.8 30 39.1 37 42.3 22 42.4 30 31.6 22 31.7 30
1 63.2 30 66.6 37 67.7 37 68.2 45 41.5 30 41.7 30 30.9 30 31 30
5.0-96 0.4 96.7 22 98.1 22 98.6 30 98.8 37 60.3 22 60.4 30 45.1 22 45.1 30
0.6 89.7 30 96.9 37 97.7 37 98 45 59.6 30 59.7 30 44.4 30 44.5 30
5.0-30 2.5 26.7 45 34.1 45 36.6 55 37.8 75 22.7 45 23 45 17.1 45 17.3 45
3.2 23 55 32.5 55 35.7 75 37.2 75 22.2 45 22.5 55 16.8 45 17 55
4 - - 30.6 75 34.6 75 36.6 75 21.8 55 22.1 55 16.6 55 16.8 55
5.5-44 1.6 43 45 51.7 45 54.6 55 56 55 33.8 37 34.1 45 25.5 37 25.6 45
2 39 55 49.9 55 53.6 55 55.4 75 33.2 45 33.6 55 25 45 25.2 55
2.5 34.1 55 47.8 75 52.3 75 54.6 75 32.7 55 33.3 55 24.7 45 24.8 55
5.5-56 1 64.3 37 70 37 71.9 45 72.9 55 44.1 37 44.4 45 33 37 33.2 45
1.25 61.6 45 68.8 45 71.1 55 72.2 75 43.7 37 44 45 32.7 37 32.8 45
1.6 57.9 55 67 55 70 75 71.5 75 43.1 45 43.4 45 32.3 37 32.4 45
5.5-80 0.6 99.7 30 103 37 104 45 105 45 64 30 64.2 37 48 30 48 37
1 94.6 45 100 55 102 55 103 75 62.8 45 63.1 45 46.9 37 47 45
5.5-120 0.4 146 30 149 37 150 45 150 55 91.8 30 92 37 68.6 30 68.7 37
0.6 143 45 147 55 148 55 149 55 90.7 37 90.9 45 67.6 37 67.6 45
6.1-36 2.5 40.9 75 51.9 75 55.7 75 57.4 90 33 55 33.4 75 24.9 55 25 75
3.2 35.4 75 49.5 90 54.2 90 56.6 110 32.4 75 32.9 75 24.5 75 24.7 75
4 - - 46.8 110 52.7 110 55.6 110 31.7 75 32.4 90 24 75 24.3 75
6.1-48 1.6 67.6 55 74.8 75 77.3 75 78.5 75 47.5 55 47.8 75 35.7 55 35.8 75
2 64.2 75 73.3 75 76.3 75 77.8 90 47 75 47.5 75 35.2 55 35.3 75
2.5 60 75 71.4 90 75.2 90 77.1 110 46.4 75 46.9 75 34.9 55 34.9 75
6.1-64 1 99 45 103 55 105 75 106 75 64.5 45 64.7 55 48.4 45 48.5 55
1.25 96.6 55 102 75 104 75 105 90 64.1 55 64.3 75 48 55 48 75
1.6 93.3 75 101 75 103 90 104 90 63.2 75 63.7 75 47.2 55 47.5 75
