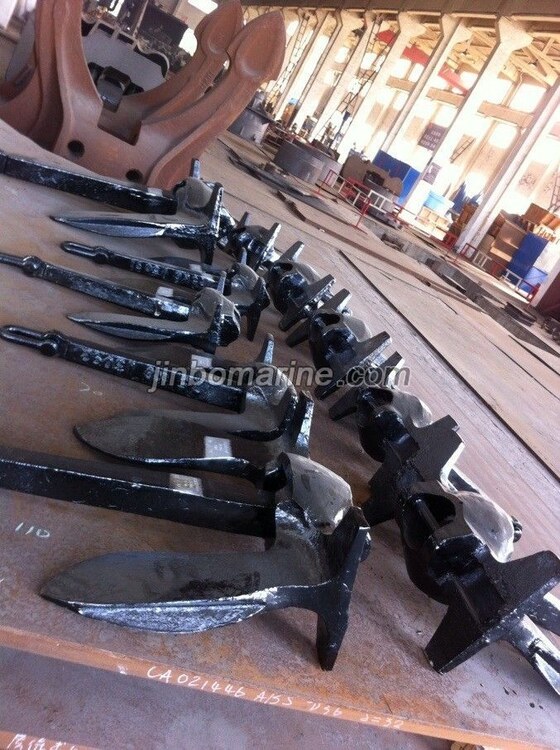

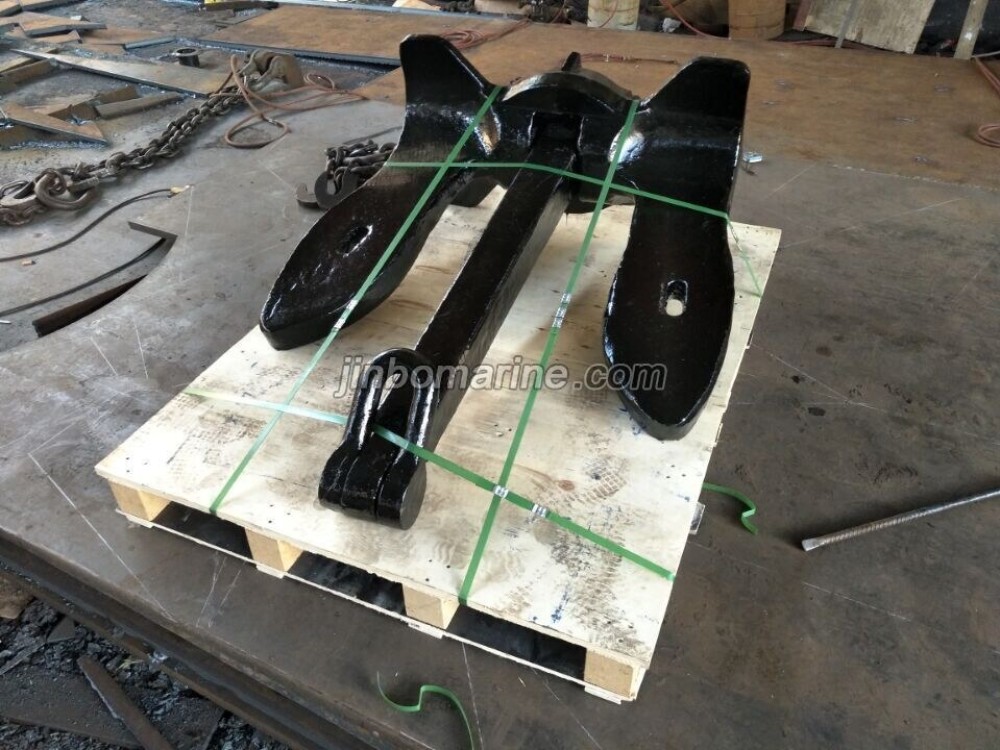

660kgs US Navy Stockless Anchor

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China 660kgs US Navy Stockless Anchor:

The anchor weight can supply according to your client request, please contact us for inquiry.

Material: Casting Steel

Weight: 300kgs to 3000kgs

Finish: Black Painting

Certificate: ABS,LR,BV,DNVGL,NK,CCS

US Navy Stockless Anchor Size

Nominal Weight
(KG) 		Size(mm)
B C D E F h
300 727 635 319 562 348 510
400 800 699 351 619 364 570
500 863 753 379 666 412 614
600 914 800 402 708 438 652
750 984 842 423 763 461 684
800 1008 880 443 778 483 710
1000 1071 948 477 839 520 773
1200 1152 1008 507 892 532 822
1300 1184 1035 521 926 567 844
1500 1244 1086 546 962 596 883
1800 1320 1154 580 1021 632 941
2000 1371 1195 601 1058 655 975
2200 1412 1234 521 1092 676 1005
2500 1473 1284 648 1139 706 1050
3000 1564 1398 704 1270 775 1050
3500 1641 1440 725 1275 790 1175
4000 1724 1506 758 1333 826 1228
5000 1884 1622 816 1436 889 1323
6000 1974 1724 867 1528 947 1403
7000 2082 1815 913 1606 996 1480
8000 2171 1897 955 1679 1040 1547
9000 2257 1973 993 1747 1082 1609
10000 2336 2044 1028 1809 1120 1667
11000 2413 2110 1062 1868 1158 1721
12000 2486 2172 1093 1924 1193 1771
13000 2540 2231 1122 1965 1194 1819
14500 2641 2313 1144 2047 1270 1887
15000 2679 2340 1177 2089 1295 1908
16000 2935 2390 1203 2116 1311 1950
18000 2844 2486 1251 2200 1365 2028
20000 2946 2575 1296 2280 1412 2100
22500 3060 2689 1345 2370 1463 2134
25000 3174 2774 1396 2456 1521 2262
30000 3371 2949 1483 2628 1631 2404
