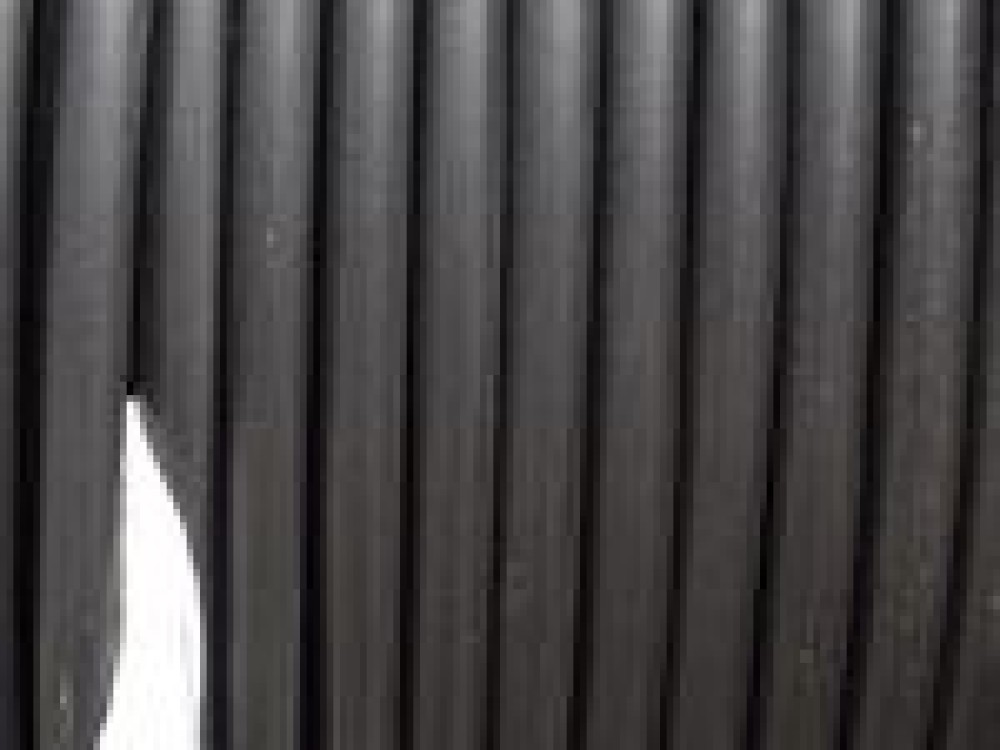

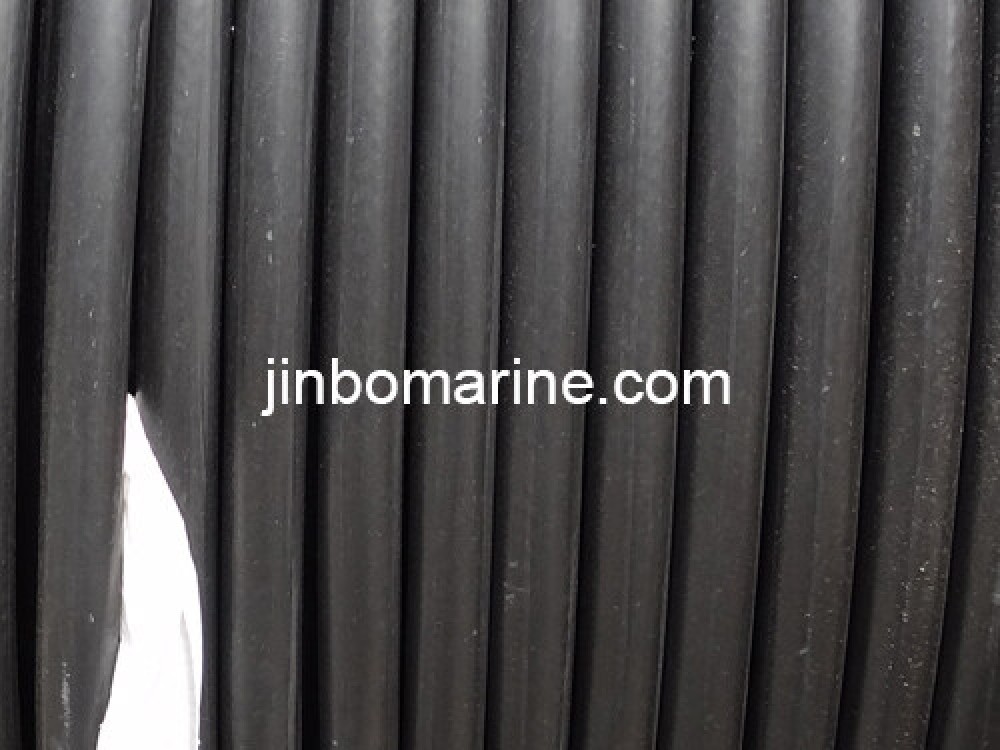

CHEPF96/SC Flame Retardant Marine Telecommunication Cable250V(Screened)
- Category:IEC 60092 Standard Cable (China Type)
- Material:Tinned Copper/XLPE insulatio/Galvanized Steel Wire Braided/SHF1 Sheath
- Standards:IEC 60092
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China CHEPF96/SC Flame Retardant Marine Telecommunication Cable250V(Screened):
CHEPF96/SC Cable is galvanized steel wire braided Marine Telecommunication & Instrument Cable 150/250V.
Cable Construction
Conductor: Stranded Tinned Anneal Copper. IEC 60228 Class 2
Insulation : EPR Insulation
Screened: Pair Screened by Aluminium Polyester
Inner Covering: Halogen-free Thermoplastic Polyolefin(SHF1)
Armour : Galvanized Steel Wire Braided
Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Standards
Design : IEC 60092-350, 376
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,24P,27P, 30P, 33P,37P,
1T, 2T,3T,4T,5T,7T,10T,12T,14P,16T,19T,24T,27T, 30T, 33T,37T
Size (sqmm): 0.75, 1, 1.5, 2.5.
Feature
Halogen-free, Low Smoke, Flame retardant
Application:
The cable is fixed installation, used for telecommunication, computer and information processing unit of shipboard and naval ship.
