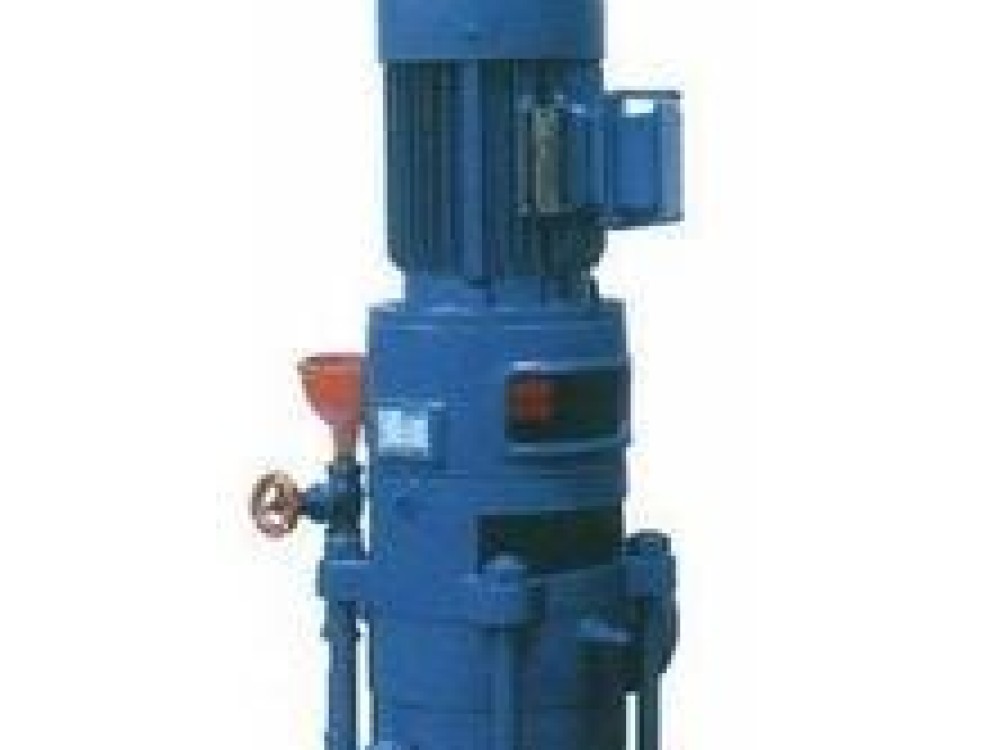

CLG Series Marine Vertical Multi-Stage Single-Suction Centrifugal Pump

  • Category:Centrifugal Pump
  • Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
  • Standards:standard
  • Certificate:CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

CLG Series Marine Vertical Multi-Stage Single-Suction Centrifugal Pump

General description

CLG series marine vertical multi-stage single-suction centrifugal pump,for pumping clear water and physical and chemical properties similar to liquid water. CLGR type water pump transmission medium temperature of 130c below the water. Pump if for the vertical installation,and has the advantages of compact structure,low noise,small occupation area characteristics,mainly used in shipbuilding industry,high-rise building water supply,fire water supply,water supply and drainage,factories and enterprises of low pressure boiler water circulation,centralized heating system.

Model explanation

  • For the model 25CLH(R)3-10x9
  • 25: inlet diameter
  • CLG:marine vertical pump
  • R:indicated hot water
  • 3:capacity 3 m3/h
  • 10:single-stage head 10m
  • 9:stage series 9

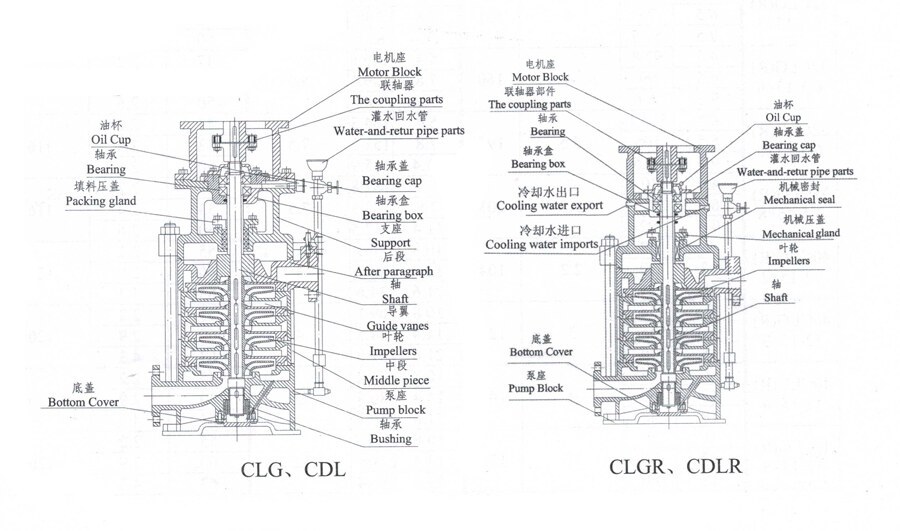

Structural Specification


Performance parameter

Type impeller dia. inlet dia efficiency weight Capacity Head Power Capacity Head Power
(mm) (mm) % (kg) (m3/h) m kw (m3/h) m kw
50hz/60hz 50hz/2900rpm 60hz/3500rpm
25CLG(R)3-10x2 98 25 42 70 3 20 0.75 3.6 28.8 1.1
25CLG(R)3-10x3 98 25 42 74 3 30 1.1 3.6 43.2 1.5
25CLG(R)3-10x4 98 25 42 84.5 3 40 1.1 3.6 57.6 1.5
25CLG(R)3-10x5 98 25 42 88.5 3 50 1.5 3.6 72 2.2
25CLG(R)3-10x6 98 25 42 96.5 3 60 2.2 3.6 86.4 3
25CLG(R)3-10x7 98 25 42 100.5 3 70 2.2 3.6 100.8 3
25CLG(R)3-10x8 98 25 42 104.5 3 80 2.2 3.6 115.2 3
25CLG(R)3-10x9 98 25 42 108.5 3 90 2.2 3.6 129.6 3
25CLG(R)3-10x10 98 25 42 124 3 100 3 3.6 144 4
32CLG(R)6.5-15x2 116 32 53 98 6.5 30 1.5 7.8 43.2 2.2
32CLG(R)6.5-15x3 116 32 53 110 6.5 45 2.2 7.8 64.8 3
32CLG(R)6.5-15x4 116 32 53 130 6.5 60 3 7.8 86.4 4
32CLG(R)6.5-15x5 116 32 53 151 6.5 75 4 7.8 108 5.5
32CLG(R)6.5-15x6 116 32 53 160 6.5 90 4 7.8 129.6 5.5
32CLG(R)6.5-15x7 116 32 53 194 6.5 105 5.5 7.8 151.2 7.5
32CLH(R)6.5-15x8 116 32 53 203 6.5 120 5.5 7.8 172.8 7.5
40CLG(R)12-15X2 120 40 60 104 12 30 2.2 14.4 43.2 3
40CLG(R)12-15X3 120 40 60 125 12 45 3 14.4 64.8 4
40CLG(R)12-15X4 120 40 60 145 12 60 4 14.4 86.4 5.5
40CLG(R)12-15X5 120 40 60 179 12 75 5.5 14.4 108 7.5
40CLG(R)12-15X6 120 40 60 189 12 90 7.5 14.4 129.6 15
40CLG(R)12-15X7 120 40 60 203 12 105 7.5 14.4 151.2 15
40CLG(R)12-15X8 120 40 60 213 12 120 7.5 14.4 172.8 15
50CLG(R)24-20X2 134 50 69 162 24 40 5.5 28.8 57.6 7.5
50CLG(R)24-20X3 134 50 69 178 24 60 7.5 28.8 86.4 15
50CLG(R)24-20X4 134 50 69 240 24 80 11 28.8 115.2 18.5
50CLG(R)24-20X5 134 50 69 252 24 100 11 28.8 144 18.5
50CLG(R)24-20X6 134 50 69 274 24 120 15 28.8 172.8 22
65CLG(R)36-20X2 136 65 72.5 175 36 40 7.5 43.2 57.6 15
65CLG(R)36-20X3 136 65 72.5 248 36 60 11 43.2 86.4 18.5
65CLG(R)36-20X4 136 65 72.5 274 36 80 15 43.2 115.2 22
65CLG(R)36-20X5 136 65 72.5 309 36 100 18.5 43.2 144 30
65CLG(R)36-20X6 136 65 72.5 354 36 120 22 43.2 172.8 37
80CLG(R)50-20X2 135 80 75 268 50 40 11 60 57.6 18.5
80CLG(R)50-20X3 135 80 75 292 50 60 15 60 86.4 22
80CLG(R)50-20X4 135 80 75 328 50 80 18.5 60 115.2 30
80CLG(R)50-20X5 135 80 75 374 50 100 22 60 144 37
80CLG(R)50-20X6 135 80 75 448 50 120 30 60 172.8 45
