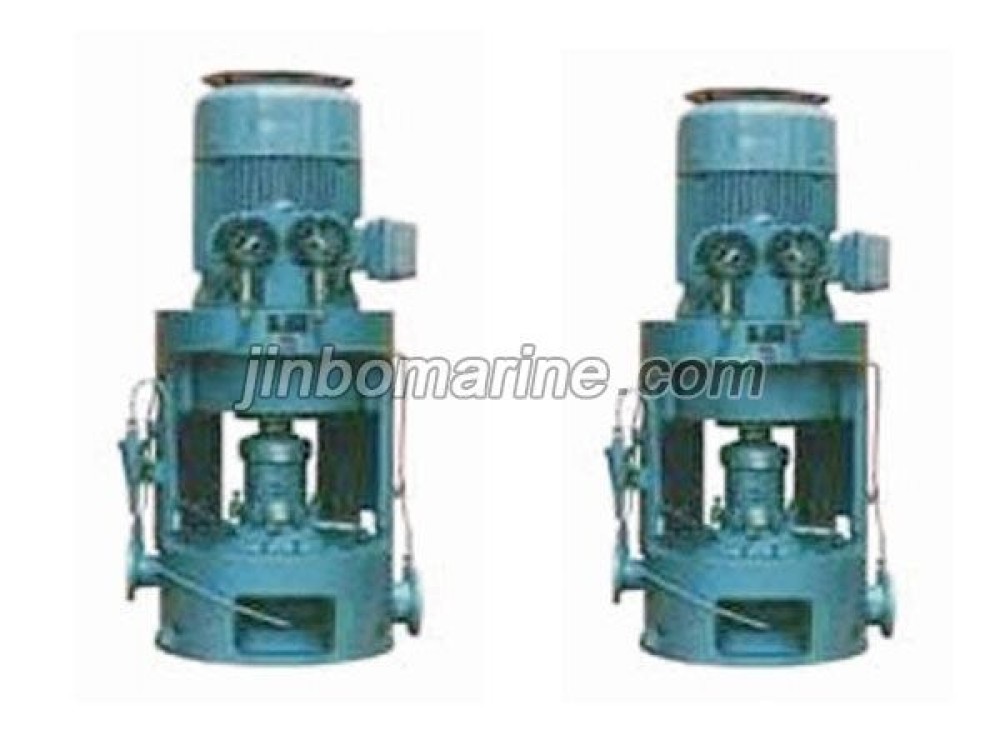

CLH50-32-3 marine vertical centrifugal pump for sea water or fresh water
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CLH50-32-3 marine vertical centrifugal pump for sea water or fresh water:
CLH series vertical sea water pump is suitable for all kinds of ships and warships as ballast pump, bilge pump, cooling pump, drainage pump and fire pump.It can also be used as a water supply pump for desalination plants and various water tanks, as well as a booster pump for petrochemical pipelines, hot and cold water circulation and domestic water for high-rise buildings.
| Main Technical Data | ||||
| Model |
Flow rate Q（m³/h） |
Lift m |
Rev speed r/min |
Motor power (KW) |
| CLH25-25-6.5 | 3 | 8 | 2950 | 0.37 |
| CLH40-32-2 | 5 | 45 | 3 | |
| CLH40-32-2.5 | 10 | 60 | 3.5 | |
| CLH40-32-3 | 10 | 45 | 4 | |
| CLH40-32-3.5 | 5 | 25 | 1.5 | |
| CLH40-32-5 | 10 | 25 | 2.2 | |
| CLH50-32-2 | 12.5 | 8 | 11 | |
| CLH50-32-3 | 12.5 | 65 | 7.5 | |
| CLH50-32-3.5 | 12.5 | 50 | 5.5 | |
| CLH50-32-4.5 | 12.5 | 32 | 3 | |
| CLH50-32-6.5 | 12.5 | 20 | 2.2 | |
| CLH50-40-7 | 20 | 25 | 4 | |
| CLH50-50-4.5 | 20 | 45 | 5.5 | |
| CLH65-40-2.5 | 25 | 110 | 22 | |
| CLH65-40-3 | 25 | 80 | 15 | |
| CLH65-40-4 | 25 | 65 | 11 | |
| CLH65-40-4.5 | 25 | 50 | 7.5 | |
| CLH65-50-6.5 | 25 | 32 | 5.5 | |
| CLH65-50-8.5 | 30 | 25 | 5.5 | |
| CLH65-50-9 | 25 | 20 | 3 | |
| CLH65-65-5.5 | 30 | 45 | 7.5 | |
| Alao have bigger pumps, pls contact us for more information. | ||||
