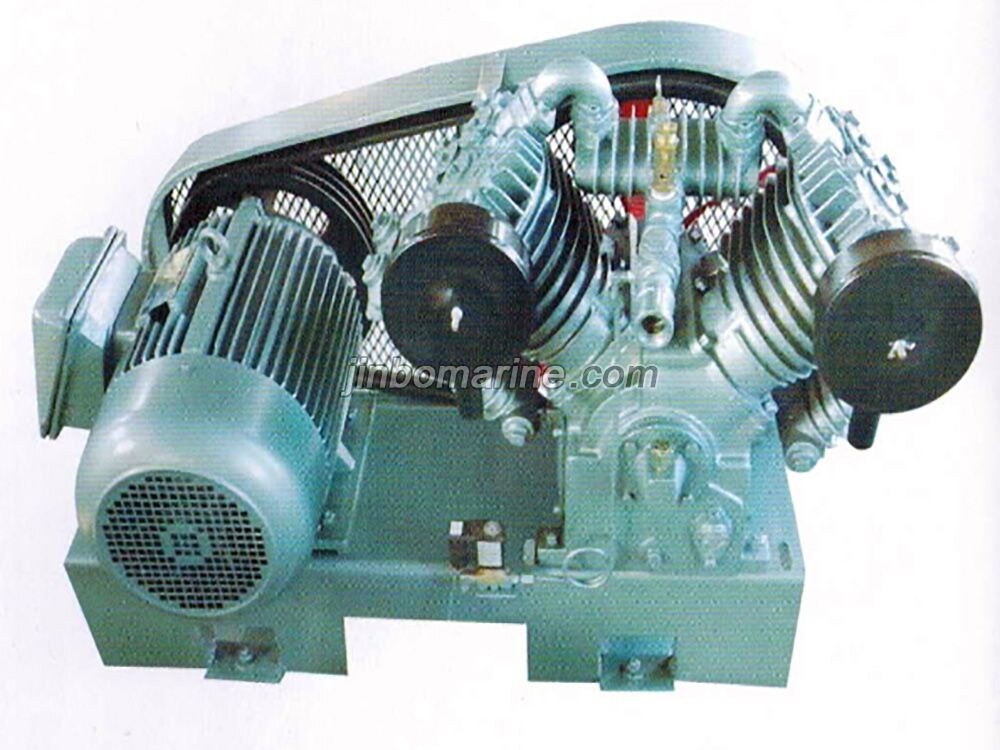

CVF-60/10 Belt Driven Air Cooled Marine Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CVF-60/10 Belt Driven Air Cooled Marine Air Compressor:

1.Type: Marine low pressure air cooled piston type air compressor.
2.Capacity: 60.0 M3/h.
3.Rotating speed: 650r/min.

4.Certificate: CCS,RINA,KR,BV etc.

Specification

Model Type Displacement capacity Specified Pressure Rotating Speed Motor Power Weight Overrall Size(L*W*H)
m3/h Mpa r/min KW Kg mm
CVF-60/10 Vertical air-cooled 60 1.0 650 7.5 310 1110*680*820
Suitable for 0.5 cubic -1.0 cube air bottle
