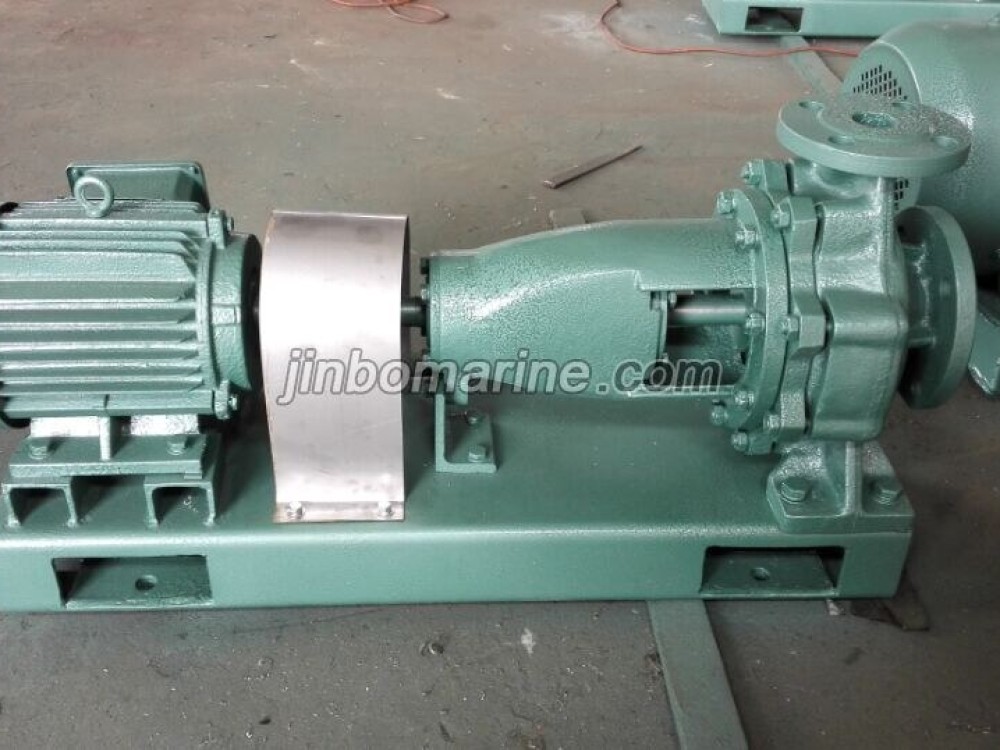

CWL Marine centrifugal pump
- Category:Centrifugal Pump
- Material:Cast Iron, Bronze
- Standards:CCS
- Certificate:CCS
- Packing Details:Standard packing
- Delivery Time:15dasy
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
CWL Series Self-priming marine pump
General description:
CWL Series pump is a horizontal single-suction centrifugal pump, seal form for mechanical seal, also can use packing seal. Applicable to ships motor driven water and cooling water pump, drainage pumps, sanitary drains and household water pumps, transmission medium temperature should be lower than75℃. This Series of pumps can be factory, mine, city water supply and rural irrigation and other uses. According to user applications, in the performance of the same circumstances, the use of different materials, by the user in the order presented.
Meaning of CWL Model number 32CWL-4
32:The diameter of inlet of pump(mm)
CWL:Marine horizontal centrifugal pump
4: Integral of the pump specific speed divided by 10
Technical Parameter：
| 380V/50hz | 440V/60hz | |||||
| Model | Capacity | Head | Power | Capacity | Head | Power |
| m3/h | m | kw | m3/h | m | kw | |
| 32CWL-4 | 4 | 21 | 1.1 | 5 | 30 | 2.2 |
| 32CWL-3 | 4 | 30 | 1.5 | 5 | 43 | 2.2 |
| 40CWL-5 | 8 | 21 | 1.1 | 10 | 30 | 2.2 |
| 40CWL-4 | 8 | 30 | 2.2 | 10 | 43 | 3 |
| 40CWL-3 | 8 | 42 | 3 | 10 | 60 | 4 |
| 50CWL-6 | 12 | 21 | 1.5 | 14 | 30 | 3 |
| 50CWL-4.5 | 12 | 30 | 3 | 14 | 43 | 4 |
| 50CWL-4 | 12 | 42 | 4 | 14 | 60 | 5.5 |
| 50CWL-8 | 21 | 21 | 2.2 | 25 | 30 | 4 |
| 50CWL-7 | 21 | 30 | 4 | 25 | 43 | 5.5 |
| 50CWL-5 | 21 | 42 | 5.5 | 25 | 60 | 7.5 |
| 50CWL-3.5 | 21 | 60 | 7.5 | 25 | 86 | 15 |
| 65CWL-11 | 35 | 21 | 4 | 43 | 30 | 7.5 |
| 65CWL-8 | 35 | 30 | 5.5 | 43 | 43 | 11 |
| 65CWL-6 | 35 | 42 | 7.5 | 43 | 60 | 15 |
| 80CWL-14 | 60 | 21 | 5.5 | 72 | 30 | 11 |
| 80CWL-11 | 60 | 30 | 7.5 | 72 | 43 | 15 |
| 80CWL-8 | 60 | 42 | 11 | 72 | 60 | 22 |
| 80CWL-6 | 60 | 60 | 18.5 | 72 | 86 | 30 |
| 80CWL-5.5 | 60 | 75 | 22 | 72 | 108 | 37 |
| 100CWL-18 | 100 | 21 | 11 | 120 | 30 | 15 |
| 100CWL-14 | 100 | 30 | 15 | 120 | 43 | 22 |
| 100CWL-11 | 100 | 42 | 18.5 | 120 | 60 | 37 |
| 100CWL-8 | 100 | 60 | 30 | 120 | 86 | 55 |
| 100CWL-6 | 100 | 85 | 37 | 120 | 122 | 75 |
| 150CWL-18 | 160 | 13 | 11 | 192 | 18.5 | 15 |
| 200CWL-12 | 300 | 30 | 37 | 360 | 43 | 75 |
| 200CWL-18 | 400 | 21 | 30 | 480 | 30 | 55 |
