CYB-T Diesel Oil Transfer Centrifugal Pump
- Category:Centrifugal Pump
- Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
- Standards:standard
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CYB-T Diesel Oil Transfer Centrifugal Pump:

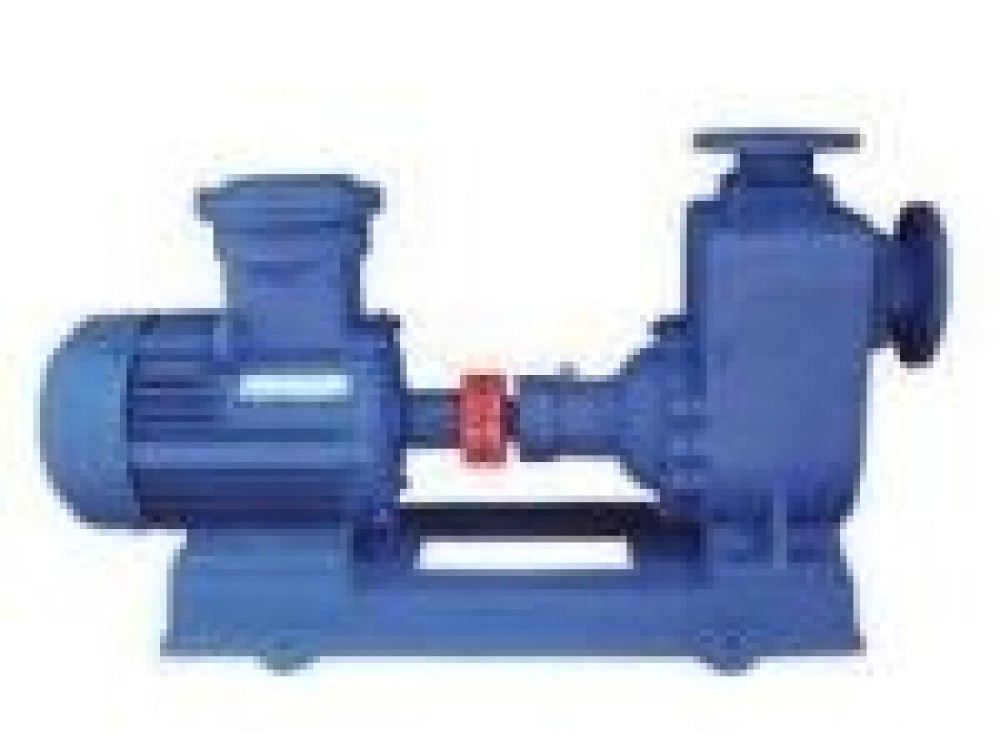

CYB-T Diesel Oil Transfer Centrifugal Pump
General description
CYB-T Diesel Oil Transfer Centrifugal Pump is widely used in the oil,chemical,ship,electricity industry.It's high efficiency and low power with anti-exprosive protection can save your cost and ensure safety.Sealed by carbide mechnical,bronze impeller with high quality material pump casing.
Technical parameter
| Type | Capacity | Head | (Npsh) | Suction | Speed | Shaft power | in and out diam |
| m3/h | m | m | r/min | rpm | kw | mm | |
| 25CYB-T27 | 3 | 27 | 3 | 3 | 2900 | 0.6 | 25 |
| 40CYB-T20 | 6.3 | 20 | 3.5 | 2 | 2900 | 0.88 | 40X32 |
| 40CYB-T40 | 10 | 40 | 3.5 | 1.5 | 2900 | 2.8 | 50X40 |
| 50CYB-T12 | 15 | 12 | 3.5 | 2.5 | 2900 | 1.1 | 50 |
| 50CYB-T20 | 18 | 20 | 3.5 | 2 | 2900 | 1.8 | 50 |
| 50CYB-T35 | 14 | 35 | 3.5 | 1.5 | 2900 | 2.7 | 50 |
| 50CYB-T50 | 12.5 | 50 | 3.5 | 1.5 | 2900 | 4.3 | 50 |
| 50CYB-T60 | 15 | 60 | 3.5 | 1.5 | 2900 | 6.3 | 50 |
| 50CYB-T75 | 20 | 75 | 3.5 | 1.5 | 2900 | 9.9 | 50 |
| 65CYB-T15 | 30 | 15 | 4 | 2 | 2900 | 1.92 | 65 |
| 65CYB-T30 | 25 | 30 | 4 | 2 | 2900 | 3.2 | 65 |
| 80CYB-T13 | 35 | 13 | 4 | 3.5 | 2900 | 1.9 | 80 |
| 80CYB-T17 | 43 | 17 | 4 | 2 | 2900 | 3.1 | 80 |
| 80CYB-T25 | 50 | 25 | 4 | 1.5 | 2900 | 5.2 | 80 |
| 80CYB-T32 | 50 | 32 | 4 | 1.5 | 2900 | 6.8 | 80 |
| 80CYB-T55 | 60 | 55 | 4 | 1.5 | 2900 | 15 | 80 |
| 80CYB-T70 | 60 | 70 | 4 | 1.2 | 2900 | 20.1 | 80 |
| 100CYB-T40 | 100 | 40 | 4 | 2 | 2900 | 18.3 | 100 |
| 100CYB-T40A | 100 | 40 | 4 | 1.5 | 1470 | 18.5 | 100 |
| 100CYB-T65 | 100 | 65 | 4 | 2 | 2900 | 27.7 | 100 |
| 100CYB-T75 | 70 | 75 | 4 | 2 | 2900 | 24.2 | 100 |
| 150CYB-T55 | 160 | 555 | 5 | 2 | 2900 | 38.1 | 150 |
| 150CYB-T65 | 170 | 65 | 5 | 1.3 | 1470 | 51 | 150 |
| 200CYB-T63 | 280 | 63 | 5 | 1.5 | 1480 | 75 | 200 |
| 80CYB-T125 | 50 | 125 | 4 | 1.5 | 2900 | 431 | 80 |
| 100CYB-Y125 | 100 | 125 | 4 | 1.5 | 2900 | 69.4 | 100 |
| 150CYB-T125 | 150 | 125 | 5 | 1.5 | 2900 | 93 | 150 |
| 200CYB-T125 | 200 | 125 | 5 | 1.5 | 2900 | 119.4 | 200 |
| 250CYB-T50 | 400 | 50 | 6 | 1.5 | 1480 | 77.2 | 250 |
