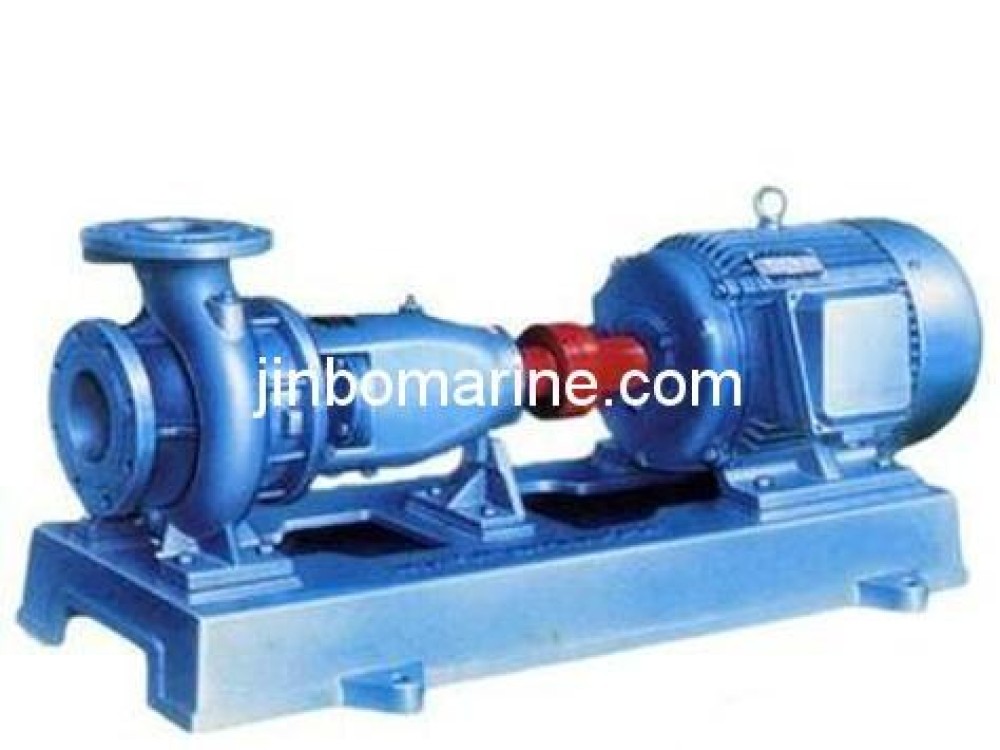

CZWF Series Marine Self-priming Non-blocking Crushing Pump

  • Category:Crushing Pump
  • Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
  • Standards:standard
  • Certificate:CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

CZWF Series Marine Self-priming Non-blocking Crushing Pump

General description

CZWF series marine self-priming pump without clogging impeller installed in front of crushing knife,is suitable for drainage dirt in the crushing and pumping,such as paper,food residue,sludge,sludge manure,fish etc.

Model explanation

CZWF Series Marine Self-priming Non-blocking Crushing Pump

CZW(F) 50-15-30

CZW-Marine self priming drainage pump

F-crushing model

50-inlet diameter 50mm

15-Flow rate 15m3/h

30-Head30m

Performance Parameter

Type 50hz/2900rpm 60hz/3500 50/60hz
CZW(F) Motor power Capacity Head Weight Motor power Capacity Head Efficiency (NPSH)r Suc'head suc'time inlet/outlet diam
kw m3/h m kg kw m3/h m % m m min/5m mm
25-8-15 2.2 8 15 100 3 9.6 21.6 45 2 5.5 3 25
32-5-20 2.2 5 20 100 3 6 28.8 45 2.5 5.5 3 32
32-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 32
32-9-30 3 9 30 120 4 10.8 43.2 48 2.5 5.5 3 32
40-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 40/32
40-20-15 2.2 20 15 100 3 24 21.6 45 2.5 5.5 3 40/32
40-15-30 3 15 30 120 4 18 43.2 48 2.5 5.5 3 40/32
50-10-20 2.2 10 20 100 3 12 28.8 45 2.5 5.5 3 50/40
50-20-12 2.2 20 12 100 3 24 17.3 45 2.5 5.5 3 50/40
50-15-30 3 15 30 120 5.5 18 43.2 48 2.5 5.5 3 50/40
50-20-35 5.5 20 35 150 7.5 24 50.4 48 2.5 5.5 3 50/40
65-25-30 5.5 25 30 200 11 30 43.2 50 3 5.5 3 65
65-25-40 7.5 25 40 200 15 30 57.6 50 3 5.5 2 65
80-65-25 11 65 25 240 18.5 78 36 52 3 5.5 2 80
80-25-40 7.5 25 40 200 15 30 57.6 50 3 5.5 2 80
80-65-25 11 65 25 240 18.5 78 36 52 3 5.5 2 80
80-80-35 15 80 35 285 22 96 50.4 45 3 5.5 3 80

Type 50hz/1450rpm 60hz/1800 50/60hz
CZW(F) Motor power Capacity Head Weight Motor power Capacity Head Efficiency (NPSH)r Suc'head suc'time inlet/outlet diam
kw m3/h m kg kw m3/h m % m m min/5m mm
65-30-18 4 30 18 200 5.5 36 25.9 45 2.5 5.5 3 65
65-40-25 7.5 40 25 200 11 48 36 50 3 5.5 2 65
80-40-16 4 40 16 240 5.5 48 23 50 3 5 3 80
80-40-25 7.5 40 25 200 11 48 36 50 3 5.5 2 80
80-80-35 15 80 354 450 22 96 50.4 50 3 5.5 2 80
80-50-60 22 50 60 340 37 60 86.4 55 3 5 3 80
100-100-15 7.5 100 15 300 15 120 21.6 50 4 5.5 3 100
100-80-20 7.5 80 20 300 15 96 28.8 53 4 5.5 3 100
100-100-20 11 100 20 340 18.5 120 28.8 53 4 5.5 3 100
100-100-30 22 100 30 510 37 120 43.2 53 4 5.5 2 100
125-120-20 15 120 20 500 22 144 28.8 55 4.5 5.5 2 125
150-180-14 15 180 14 500 22 216 20.1 60 5 5.5 3.5 150
150-180-20 22 180 20 570 37 216 28.8 60 5 5 3 125
150-180-30 27 180 30 680 55 216 43.2 65 5 5 3 150
150-180-38 55 180 38 800 90 216 54.7 45 5 6 3.5 150
200-280-14 22 280 14 700 37 336 20.1 65 5 5 3 200
200-280-28 55 280 28 940 90 336 40.3 55 4.8 5.2 3 200

The description/sizes may be different with goods, please check with us when order.
