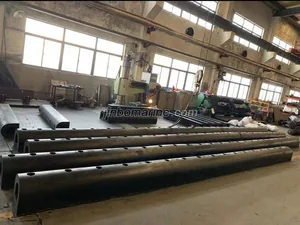

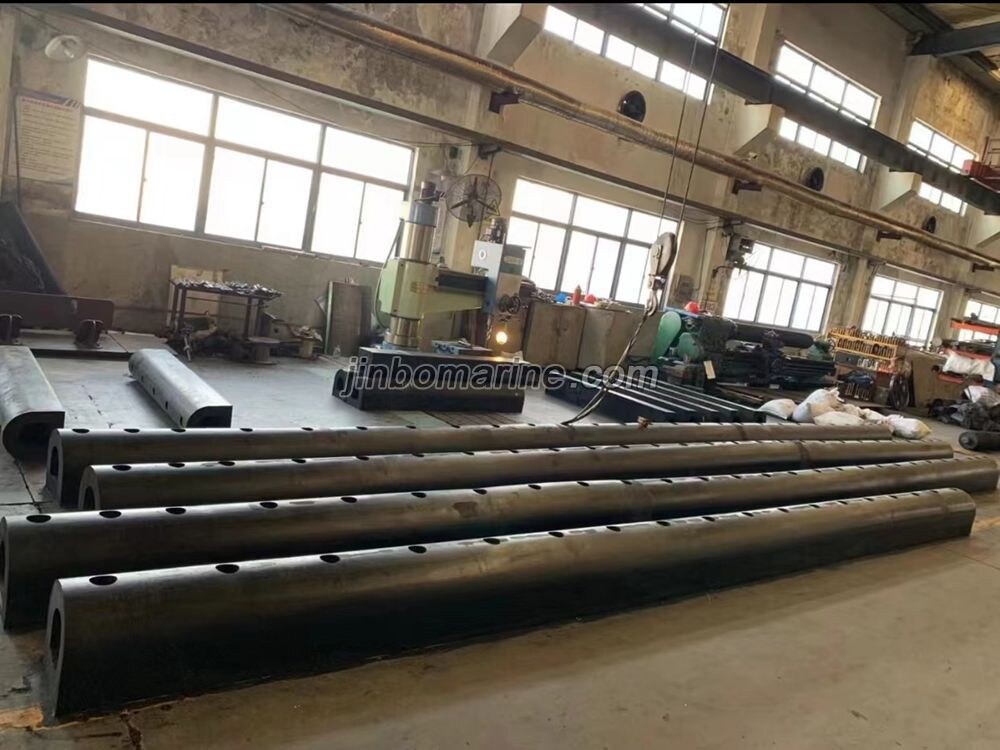

D Shape Fender
- Category:Marine Fender
- Delivery Time:20 days.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China D Shape Fender:
Nature rubber fender.
Applicable for frame dock and ships due to its smaller bottom width.
Energy absorption of rubber fender per ton is high, but reaction force is relatively too high (Compress rubber fender has the lowest energy absorption for reaction force per unit.

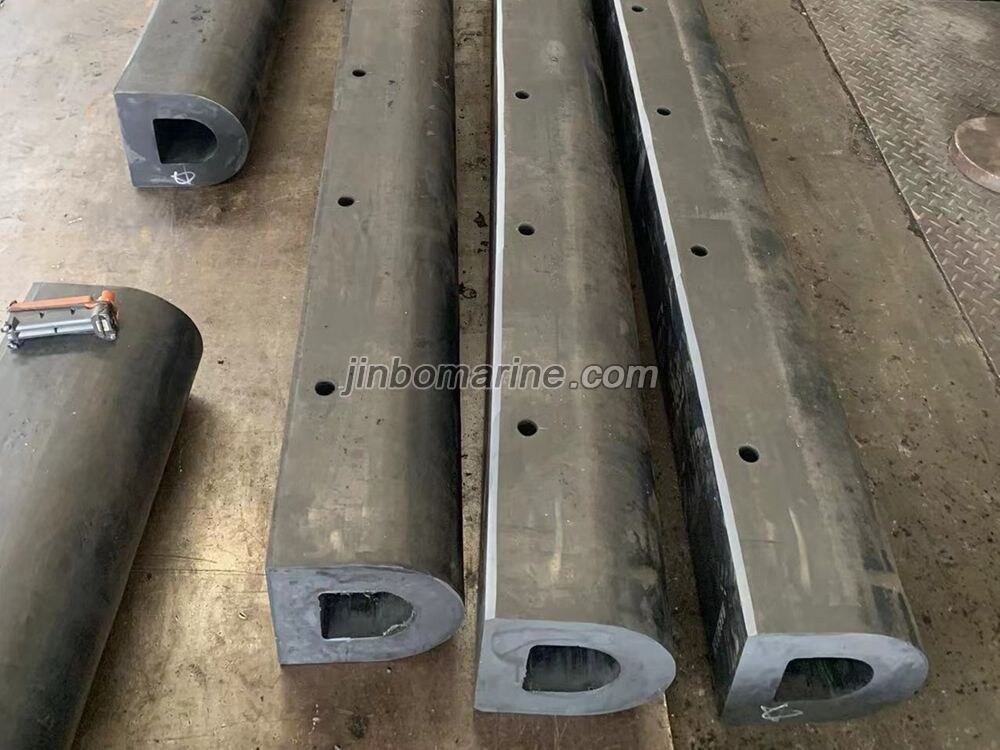

The inner bore can be D type or O shape.
The hole can be drilled from top, also can be drilled from side of fender(Tugboat).
Specification:
Model | L | A | D | B | H | h | Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Kg | |
D200H | 1000 | 200 | 55 | 28 | 200 | 30 | 37 |
D200H | 1500 | 150 | 55 | 28 | 200 | 30 | 56 |
D200H | 2000 | 250 | 55 | 28 | 200 | 30 | 74 |
D300H | 900 | 150 | 65 | 32 | 300 | 40 | 80 |
D300H | 1000 | 200 | 65 | 32 | 300 | 40 | 67 |
D300H | 1500 | 150 | 65 | 32 | 300 | 40 | 105 |
D300H | 2000 | 250 | 65 | 32 | 300 | 40 | 134 |
D300H | 1000 | 200 | 65 | 32 | 300 | 40 | 80 |
D300H | 1500 | 150 | 65 | 32 | 300 | 40 | 120 |
D400H | 1500 | 150 | 65 | 32 | 400 | 55 | 150 |
D400H | 2000 | 200 | 65 | 32 | 400 | 55 | 200 |
D500H | 1000 | 150 | 55 | 28 | 500 | 60 | 195 |
D500H | 1500 | 150 | 55 | 28 | 500 | 60 | 298 |
D500H | 2000 | 200 | 55 | 28 | 600 | 60 | 395 |
