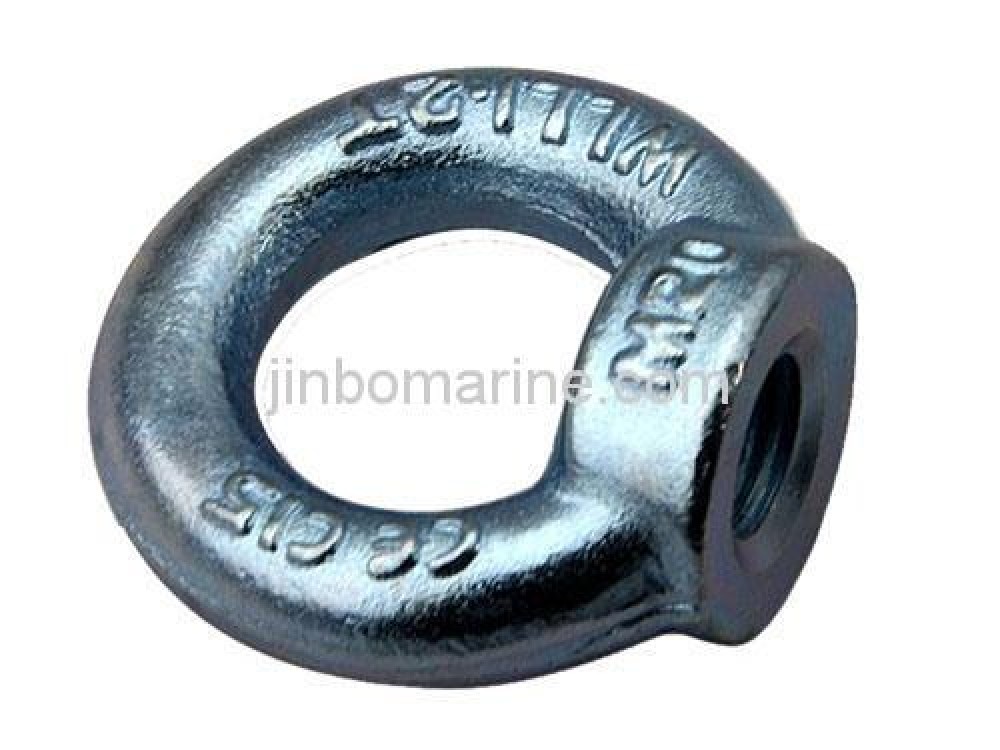

DIN 582 Eye Nut

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Main Specification

Drop Forged

Material: Q235, 45# Steel

Finish: Galvanized

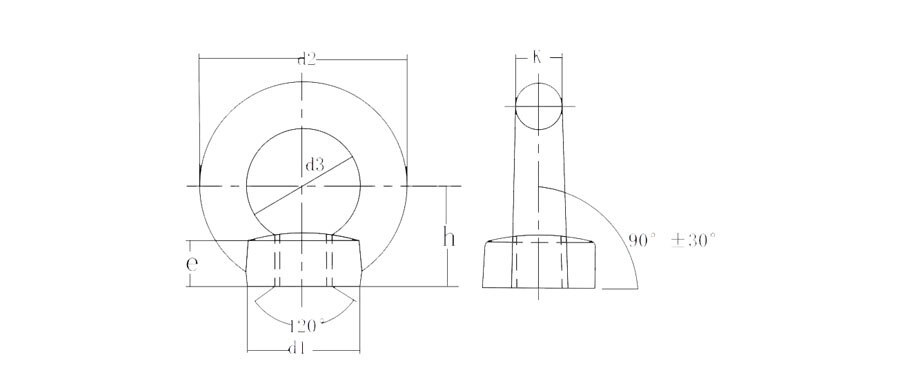

Size Table

Size d WLL t WLL t DIMENSIONS Weight kg
d1 d2 mm d3 e h k
M6* - - 20 36 20 8.5 18 8 4.9
M8* 0.14 0.095 20 36 20 8.5 18 8 5
M10* 0.23 0.17 25 45 25 10 22 10 9
M12 0.34 0.24 30 54 30 11 26 12 16
M16 0.7 0.5 35 63 35 13 30 14 24
M20 1.2 0.83 40 72 40 16 35 16 36
M22* 1.5 1.05 45 81 45 18 40 18 58
M24 1.8 1.27 50 90 50 20 45 20 72
M27* 2.5 1.65 50 90 50 20 45 20 70
M30 3.6 2.6 65 108 60 25 55 24 132
M33* 4.3 3.2 65 108 60 25 55 24 130
M36 5.1 3.7 75 126 70 30 65 28 208
M39* 6.1 4.3 75 126 70 30 65 28 202
M42 7 5 85 144 80 35 75 32 311
M45* 8 5.5 85 144 80 35 75 32 304
M48 8.6 6.1 100 166 90 40 85 38 502
M52* 9.9 7.3 100 166 90 40 85 38 495
M56 11.5 8.3 110 184 100 45 95 42 669
M64 16 11 120 206 110 50 105 48 930
