DIN 81906-1999 Fairlead Roller
- Category:Warping Roller
- Material:cast steel,cast iron
- Standards:DIN 81906-1999
- Certificate:ABS, BV, CCS,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Din 81906 1999 Fairlead Roller.pdf
Details

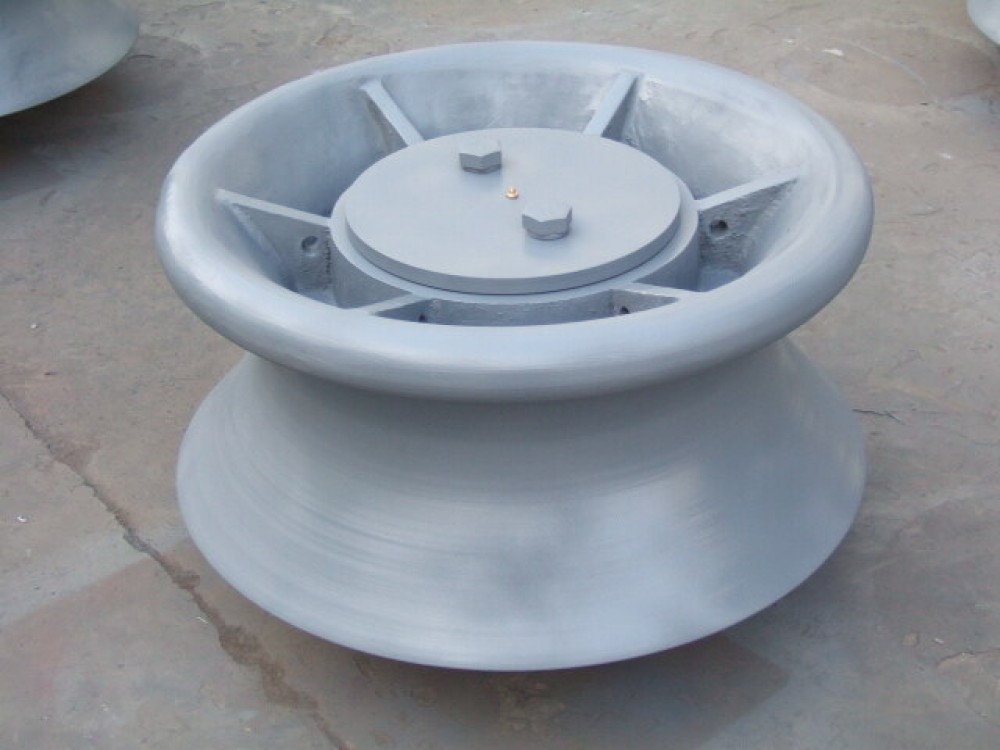

China DIN 81906-1999 Fairlead Roller:
Warping roller(also known as fairlead roller) is used for rope or cable leading..It is made from cast iron or cast steel material,increased the durability,good wear and corrosion resistance to ensure a long service time.
1.Certificate: ABS, LR, BV, GL, DNV, CCS,mill certificate etc.
2.Finish: Epoxy finishing
3.Can be designed according to customers requirements.

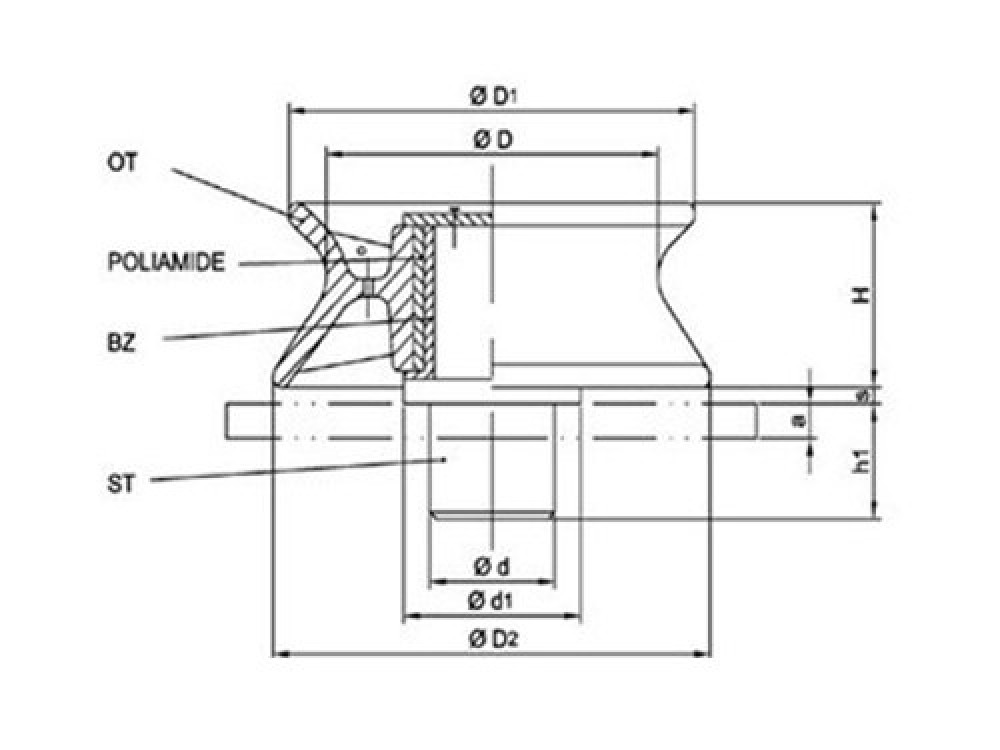

Drawing:
Specification:
|
DIN 81906-1999 Fairlead roller |
|||||||||||
|
Product No. |
D |
D1 |
D2 |
d |
d1 |
H |
h1 |
s |
a |
Fa |
Weight |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(KN) |
(KG) |
|
|
D8R-001 |
160 |
195 |
210 |
60 |
85 |
80 |
50 |
2 |
12 |
10 |
14 |
|
D8R-002 |
200 |
245 |
265 |
70 |
102 |
102 |
50 |
3 |
12 |
20 |
20 |
|
D8R-003 |
250 |
300 |
330 |
85 |
126 |
126 |
50 |
3 |
15 |
32 |
33 |
|
D8R-004 |
320 |
390 |
420 |
106 |
160 |
160 |
50 |
3 |
15 |
50 |
72 |
|
D8R-005 |
400 |
490 |
530 |
125 |
208 |
208 |
60 |
3 |
18 |
80 |
140 |
|
D8R-006 |
450 |
560 |
610 |
160 |
256 |
256 |
85 |
3 |
18 |
125 |
240 |
|
D8R-007 |
500 |
620 |
640 |
190 |
278 |
278 |
100 |
5 |
20 |
200 |
320 |
|
D8R-008 |
560 |
740 |
780 |
230 |
348 |
348 |
150 |
5 |
20 |
320 |
580 |
