DIN6899A Thimble

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China DIN6899A Thimble:

DIN6899A Thimble

Material: Q235

Finish: Hot Dip Galvanized.

Size: 1/8" to 1 1/4"

Packing: Carton

Use: Rigging for Wire Rope or Mooring Rope.

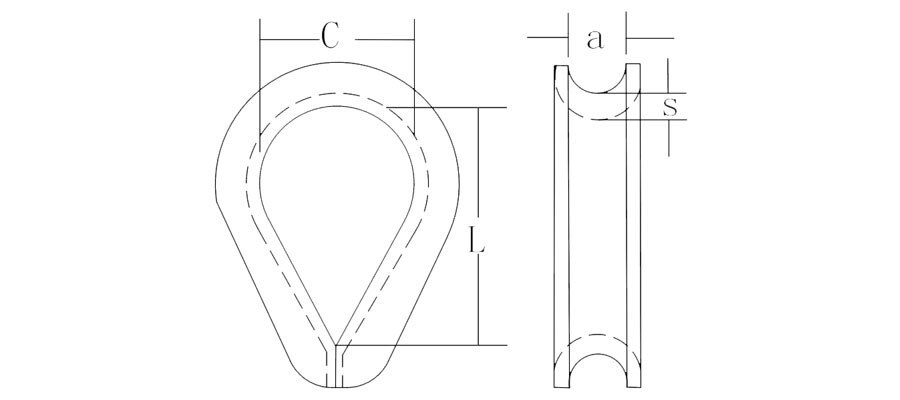

Size Table

SIZE(mm) Dimensions（mm） WT
/100PCS(kg)
A B C D E F H
2.5 28 21.5 16 10 5 3 1 0.14
3 30 23.5 17 11 5.5 3.5 1 0.35
4 34 26.5 19 12 6 4 1 0.42
5 36 28 20 13 7 5 1 0.8
6 38 30 22 14 8 6 1 0.85
7 43 33 24 15 9 7 1.2 1.1
8 46 35 26 16 10 8 1.2 1.7
9 50 39 29 18 11 9 1.2 2.1
10 56 43 32 20 13 10 1.5 3.5
11 63 47.5 36 22 14 11 1.5 3.7
12 68 51.5 40 24 15 12 1.5 5.25
13 75 56.5 44 26 17 13 2 7.25
14 82 61 48 28 18 14 2 8.33
16 91 69.5 54 32 21 16.5 2.5 12.3
18 102 78 59 35 24 18 3 18.5
20 114 86.5 68 40 28 20 4 31.5
22 126 95 76 44 30 22 4 36.5
24 135 103.5 84 48 32 24 4 41.7
28 162 120.5 100 56 38 28 5 72.1
