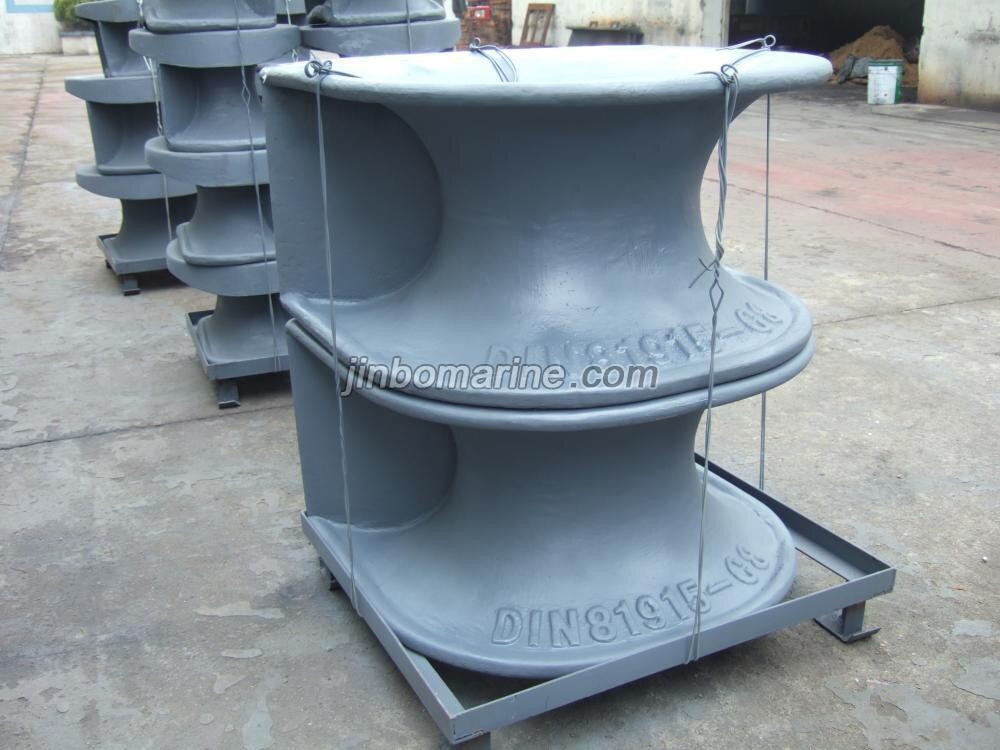

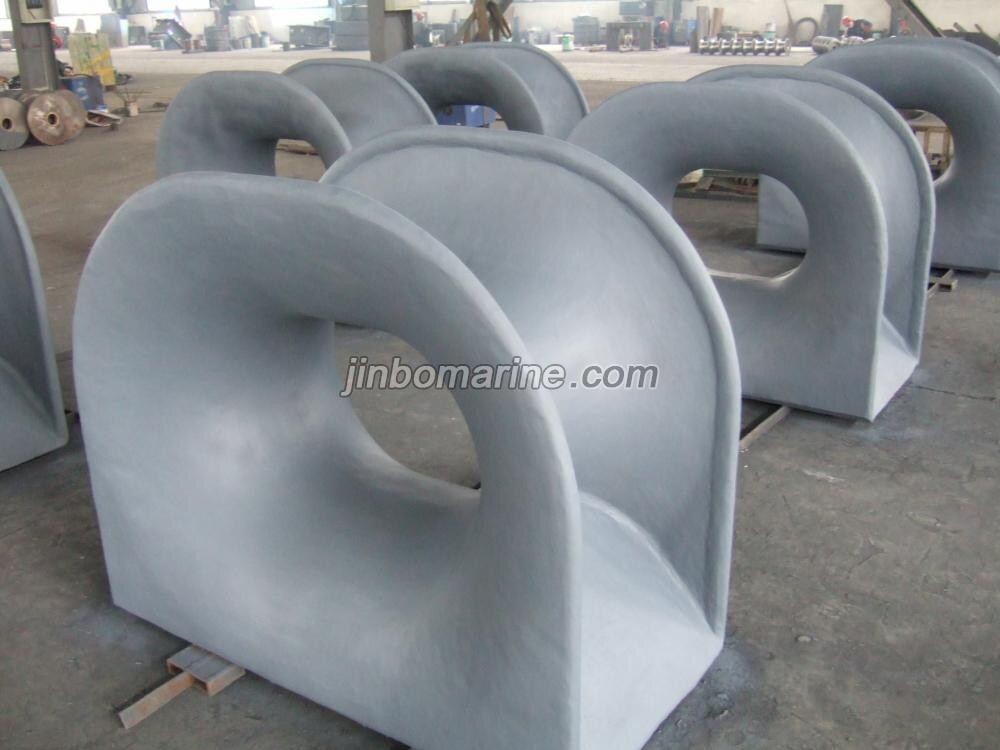

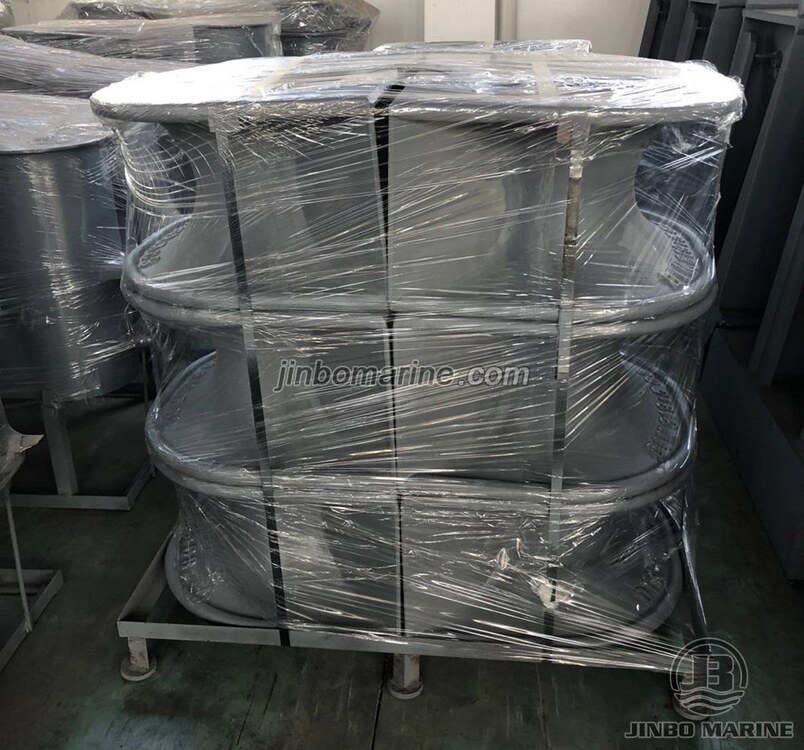

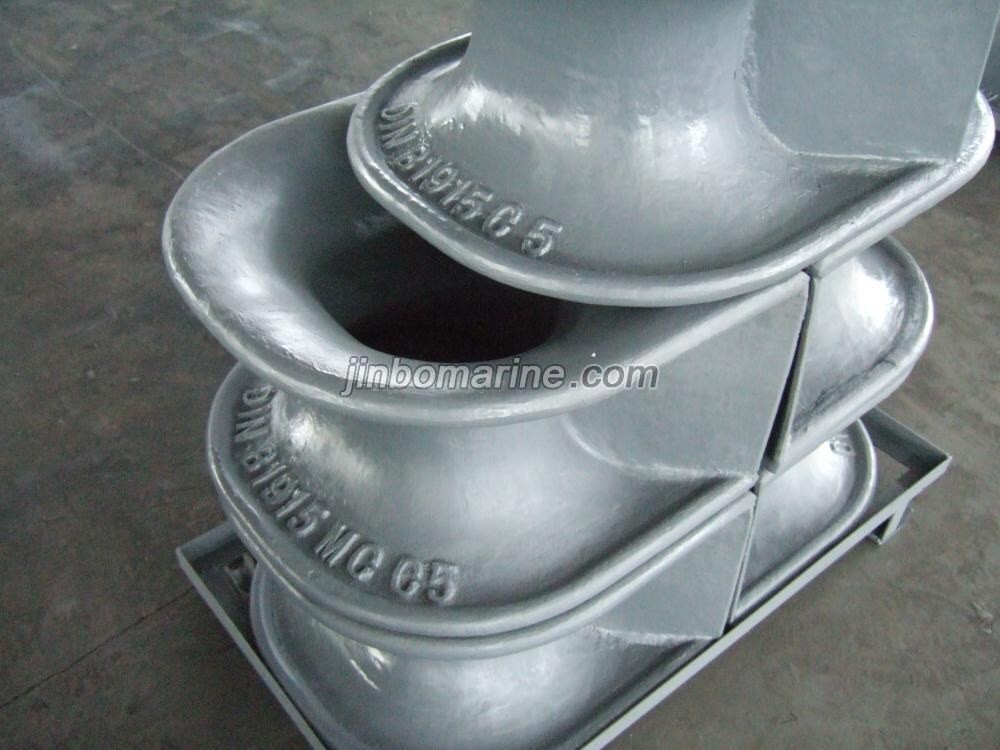

DIN81915-1998 C Type Deck Mounted Chock
- Category:Marine Chock
- Material:Cast Steel
- Standards:DIN81915-1998
- Certificate:ABS , BV, CCS , mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Din81915 1998 C Type Deck Mounted Chock.pdf
Details
China DIN81915-1998 C Type Deck Mounted Chock:
It is a very popular type marine chock,widely used for vessel,tug,cargo ship,military ship, industrial ships etc, Usually it is install at bow and stern of tankers for general mooring purposes.
Desciption:
1.Can issue BV,CCS,DNV,ABS,mill certificate
2.Good after-sale service
3.Installed easily
4.surface been finished smoothly.
Remarks:
Type C2 - C8 =Single Chock according to panama rules;
Type C12 - C32 =Double Chock according to panama rules.

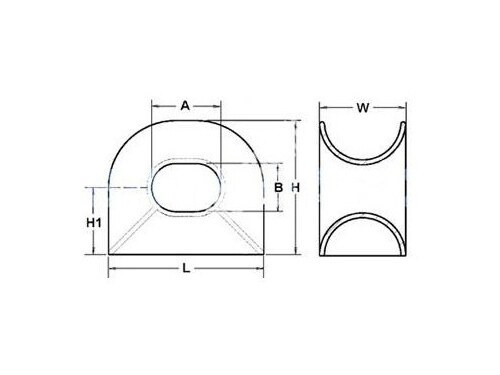

Size chart:
DIN81915-1998 C type Deck mounted Chock |
||||||||
Product No. |
SWL(KN) |
Dimension(mm) |
Mass(kgs) |
|||||
L |
W |
H |
H1 |
A |
B |
|||
DMC-001 |
10 |
285 |
160 |
250 |
125 |
125 |
90 |
19.5 |
DMC-002 |
20 |
360 |
200 |
316 |
158 |
160 |
115 |
29 |
DMC-003 |
30 |
450 |
250 |
390 |
195 |
200 |
140 |
48 |
DMC-004 |
50 |
550 |
300 |
480 |
240 |
250 |
180 |
85 |
DMC-005 |
80 |
680 |
360 |
586 |
293 |
320 |
225 |
136 |
DMC-006 |
125 |
840 |
440 |
710 |
355 |
400 |
270 |
211 |
DMC-007 |
200 |
1020 |
520 |
840 |
420 |
500 |
320 |
256 |
DMC-008 |
320 |
1300 |
700 |
1100 |
550 |
600 |
400 |
840 |
