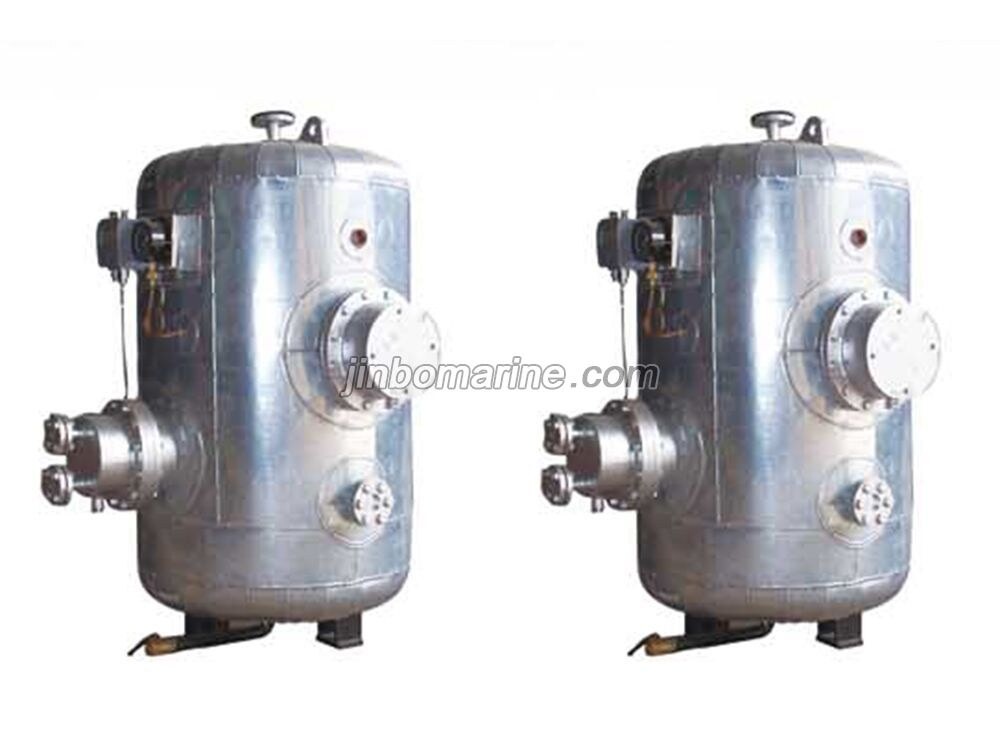

DZG Series Electric Steam Heating Calorifier
- Category:Marine Calorifier
- Material:Stainless steel 304
- Standards:ISO9001
- Certificate:CCS, BV, ABS, GL，LR, NK
- Packing Details:Wooden box
- Delivery Time:15-20days
- Supply Ability:10 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
DZG Series Electric Steam Heating Calorifier:
This series electric steam heating calorifier is suitable for all kinds of ship which have the steam source or power source (AC 3P/380V/50Hz or AC 3P/440V/60Hz.) to product hot water, It can supply the hot water for crewmen.
Technical Data:
| Type |
volume m3 |
Working Pressure | Inlet Temp. | Outlet Temp. | Steam Press |
| DZG-0.12 | 0.12 | 0.4Mpa | 15℃ | 65℃ | 0.3Mpa |
| DZG-0.2 | 0.2 | ||||
| DZG-0.3 | 0.3 | ||||
| DZG-0.5 | 0.5 | ||||
| DZG-1.0 | 1 | ||||
| DZG-1.5 | 1.5 | ||||
| DZG-0.12 |
Steam Heating Capacity kg/h |
Steam Consume kg/h |
Electric Heater Power KW |
Power Supply |
Weight kg |
| DZG-0.2 | 275 | 27.5 | 90 |
3P/380V/50HZ 3P/440V/60HZ |
210 |
| DZG-0.3 | 450 | 45 | 140 | 245 | |
| DZG-0.5 | 750 | 75 | 180 | 330 | |
| DZG-1.0 | 1200 | 120 | 280 | 400 | |
| DZG-1.5 | 3250 | 325 | 360 | 590 | |
| 4900 | 490 | 540 | 760 |
