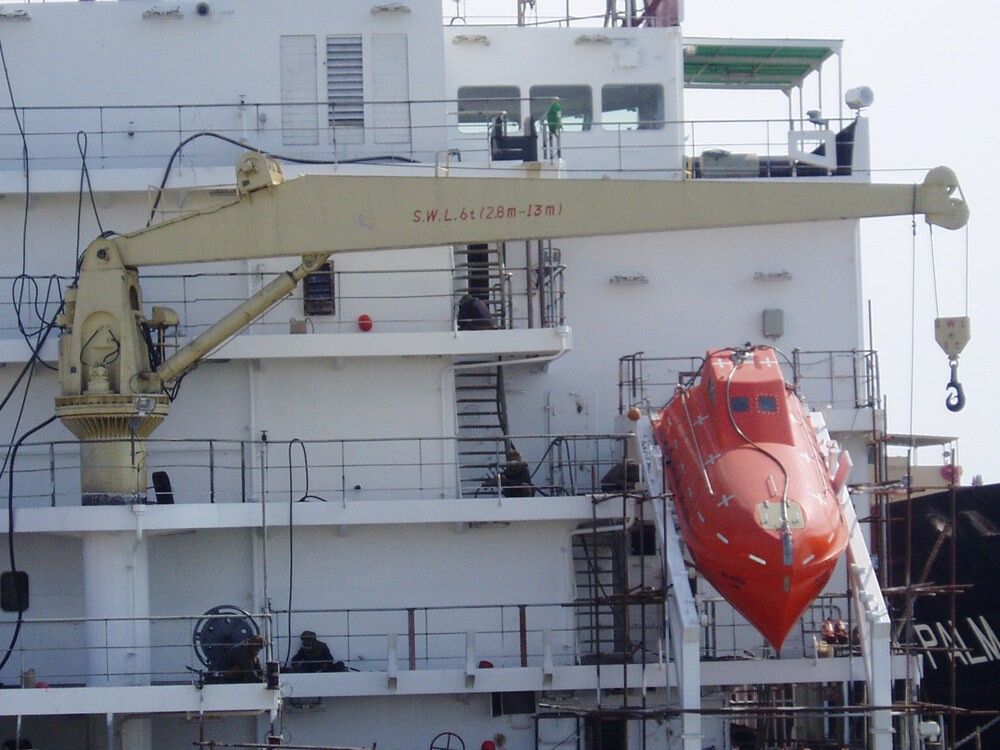

Electro-Hydraulic Cargo Hose Crane
- Category:Marine Davit and crane
- Material:Cast steel
- Standards:standard
- Certificate:CCS，Rina，ABS, BV, GL,
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
YQ Series Electro-hydraulic type cargo hose crane
The Electro-hydraulic crane is special equipment used on marine for lifting cargo hose,spare parts and other sundries. It can be located on mid-main deck or upper deck for the lifting operation. Easy operation, High safety working load, High quality with long life service.

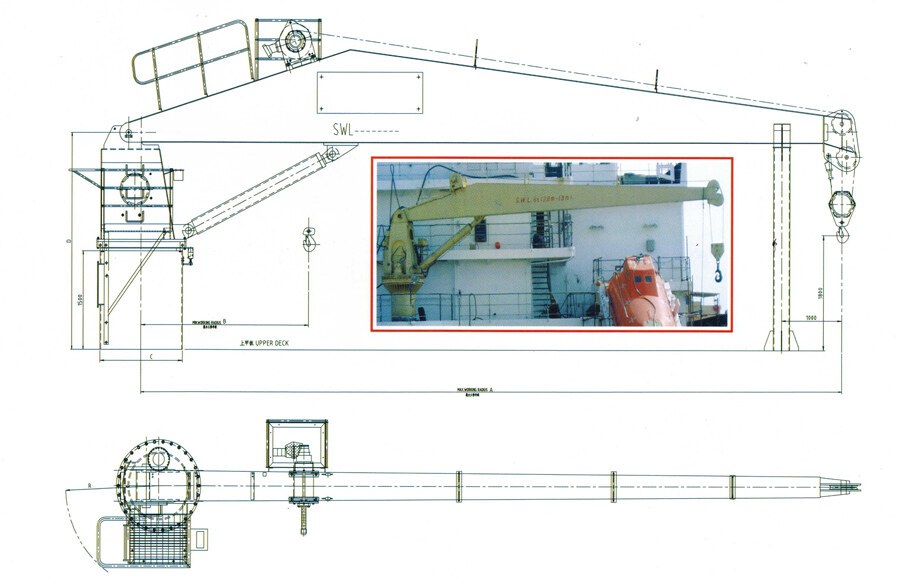

Drawing
Main technical parameter
| Type | SWL | working radius | Power | lifting height | lifting speed | luffing time | totating velocity | |
| t | m | kw | m | m/min | s | r/min | ||
| YQ20/08 | 2 | 2.4-8 | 15 | 25 | 15 | 35-40 | 0.6 | |
| YQ20/12 | 2 | 3.7-12 | 15 | 25 | 15 | 45-50 | 0.8 | |
| YQ30/08 | 3 | 2.4-8 | 22 | 25 | 15 | 35-40 | 0.6 | |
| YQ30/12 | 3 | 3.7-12 | 22 | 25 | 15 | 45-50 | 0.8 | |
| YQ40/10 | 4 | 3.0-10 | 22 | 25 | 15 | 45-50 | 0.7 | |
| YQ40/16 | 4 | 4.9-16 | 22 | 25 | 15 | 60-65 | 1 | |
| YQ50/10 | 5 | 10 | 30 | 25 | 15 | 50-55 | 0.7 | |
| YQ50/16 | 5 | 4.9-16 | 30 | 25 | 15 | 60-65 | 1 | |
| YQ60/12 | 6 | 3.7-12 | 37 | 25 | 15 | 60-65 | 0.9 | |
| YQ60/16 | 6 | 4.9-16 | 37 | 25 | 15 | 70-75 | 1 | |
| YQ80/12 | 8 | 3.7-12 | 45 | 30 | 15 | 60-65 | 0.8 | |
| YQ80/16 | 8 | 4.9-16 | 45 | 30 | 15 | 70-75 | 1 | |
| YQ80/20 | 8 | 6.2-20 | 45 | 30 | 15 | 75-80 | 1.2 | |
| YQ100/12 | 10 | 3.7-12 | 45 | 30 | 12 | 70-75 | 0.8 | |
| YQ100/16 | 10 | 1.9-16 | 45 | 30 | 12 | 75-80 | 0.6 | |
| YQ100/20 | 10 | 6.3-20 | 75 | 30 | 12 | 85-90 | 1.2 | |
| YQ150/12 | 15 | 3.7-12 | 75 | 30 | 12 | 70-75 | 0.8 | |
| YQ150/20 | 15 | 6.2-20 | 90 | 30 | 12 | 85-90 | 1.2 | |
| YQ200/16 | 20 | 4.9-16 | 110 | 30 | 10 | 70-75 | 0.9 | |
