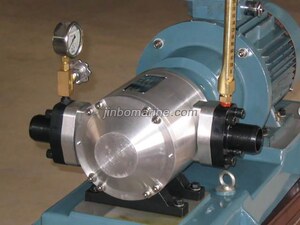

Energy Saving Marine Fuel Homogenizer

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Energy Saving Marine Fuel Homogenizer:

Independent brand fuel homogenizer developed, with significant reduction in diesel oil, improving combustion and regeneration of waste oil and other effects, can well solve the diesel owners with high viscosity low quality fuel produced increased, equipment wear and other issues.

We can provide marine fuel homogenizer installation design, installation guidance, maintenance work, for the owners in energy saving, environmental protection, reduce shipping costs and other aspects of strong support.

Advantage

1. Improve the fault alarm system to ensure safe use.

2. The use of international brand motor drive, to ensure the normal use of harsh conditions.

3. Classification society authority certification, reliable quality.

4. Good cost control, more favorable price and service.

5. Adopt the current popular mainstream design scheme, that is stator rotor structure, and further optimize the design in the product.

6. More precise stator / rotor machining, high speed and severe dynamic balancing test, ultra smooth running, little noise. High hardness of the tooth surface, to enhance the shear efficiency and reduce the shear tooth surface wear.

7. The internal use of sliding bearings, fuel self-lubricating, long life.

8. Apply magnetic coupling, completely avoid the risk of oil leakage, and automatically protect the motor overload.

Energy Saving Marine Fuel Homogenizer Technical Specifications

Type FH03030 FH03055 FH10075 FH10110 FH20150 FH20220
Capacity,m3/h 1~3 3~5 5~10 10~15 15~20 >20
Power,Kw 3.0 5.5 7.5 11.0 15.0 22.0
Voltage,V/Hz 400/50,440/60
Pressure,Mpa <1.6
Max.temp.℃ 150
