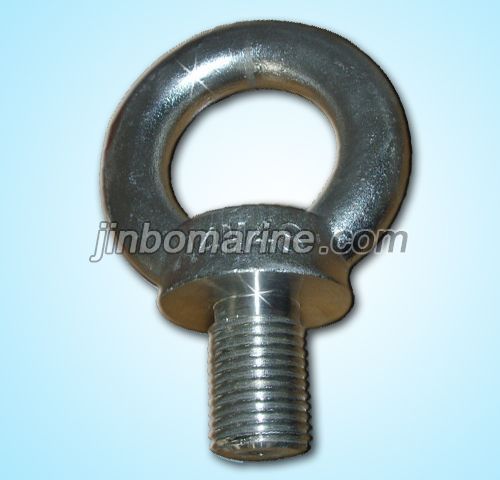

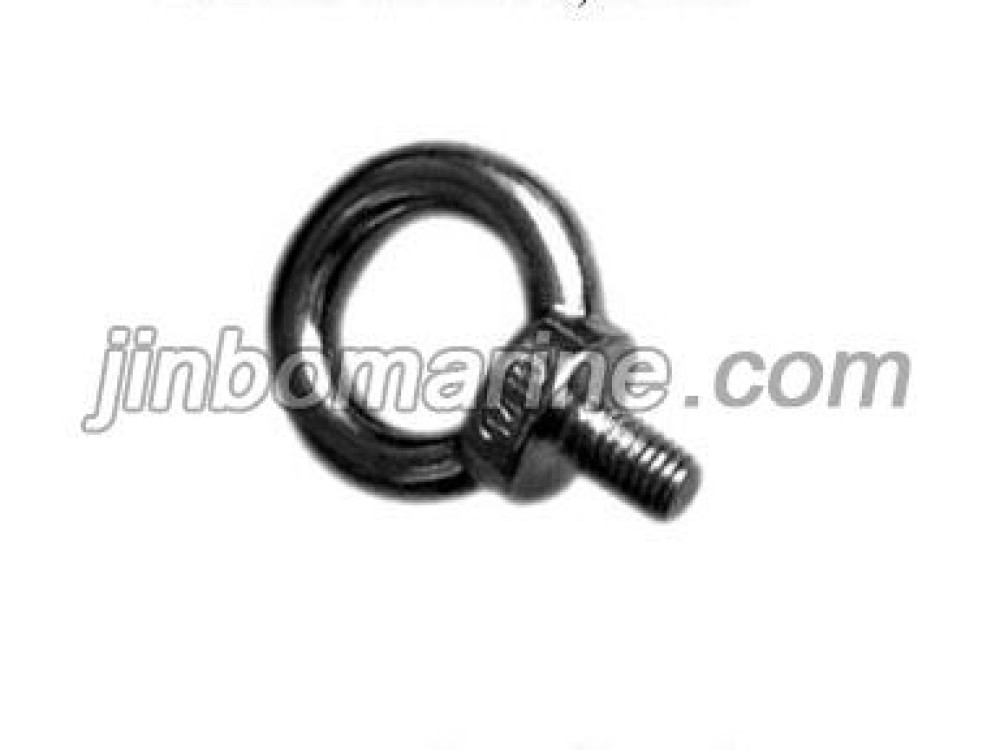

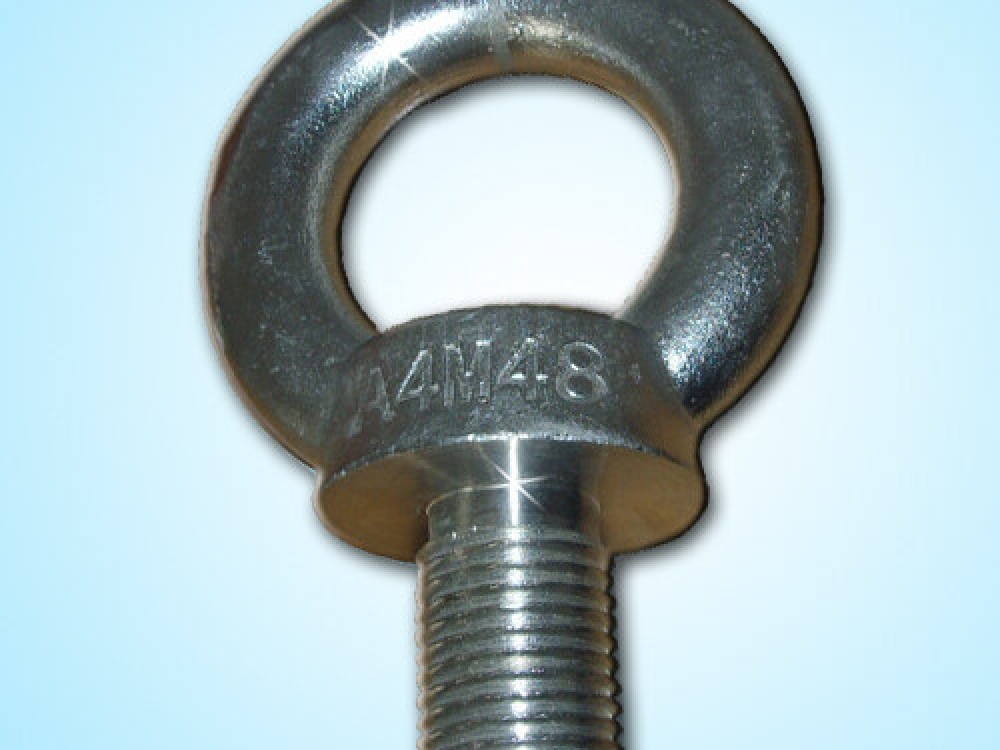

Eye Bolt DIN 580, CSLS02

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Eye Bolt DIN 580, CSLS02:

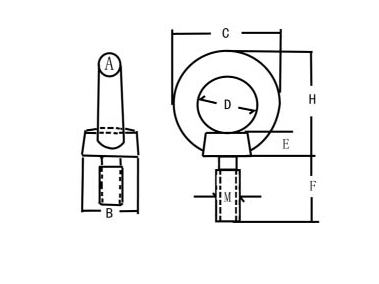

SIZE A
mm 		B
mm 		C
mm 		D
mm 		E
mm 		F
mm 		H
mm 		WLL
T
M6 6 17 28 16 6 13 25.5 0.07
M8 8 20 36 20 6 15 36 0.14
M10 10 25 45 25 8 18 44.5 0.23
M12 12 30 54 30 10 22 53 0.34
M14 14 35 63 35 12 28 61.5 0.52
M16 14 35 63 35 12 28 61.5 0.7
M20 16 40 72 40 12 30 71 1.2
M22 18 45 81 45 14 35 80.5 1.5
M24 20 50 90 50 16 38 90 1.8
M27 20 50 90 50 18 38 90 2.7
M30 24 65 108 60 20 45 109 3.6
M33 24 65 108 60 22 45 109 4.3
M36 28 75 126 70 22 55 128 5.1
M39 28 75 126 70 26 55 128 6.1
M42 32 85 144 80 30 65 147 7
M45 32 85 144 80 30 65 147 8
M48 38 100 166 90 35 70 168 8.6
M52 38 100 166 90 35 70 168 9
