Horizontal Split Casing Multi-Stage Centrifugal Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

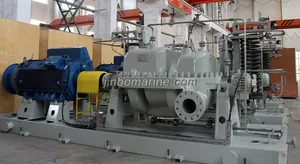

Horizontal Split Casing Multi-Stage Centrifugal Pump

Model and Executive Standard:

BB3(KDY) according to API 610 standard

Performance Range:

Capacity: ~8000m3/h

Heads: ~1800m

Temperatures: ~205Deg

Design pressure: ~30Mpa

Application:

Oil filed and sewage water, dirty oil and residual oil transportation

Crude oil and production oil pipeline, water supply.

All kinds of long distance water transportation

High Pressure water injection, sea water desalinization

Feature:

KDY: Multi-stage(more than two stage) centrifugal pump(BB3).

Back to back impeller installtion to balance the axially force, pressurized-water chamber adopts double volute design to balance the redially force, double first scution stage for lower NPSHr requests. KDY pumps are equipped with Changeable water rings. Impellers are static balance tested and dynamic balance tested.
