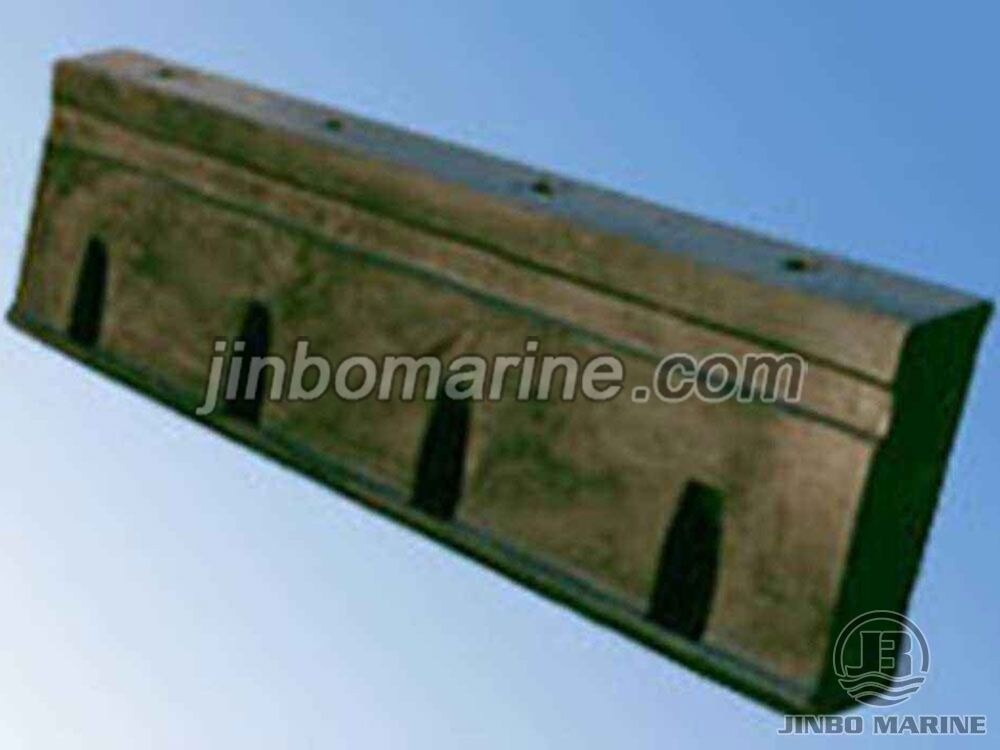

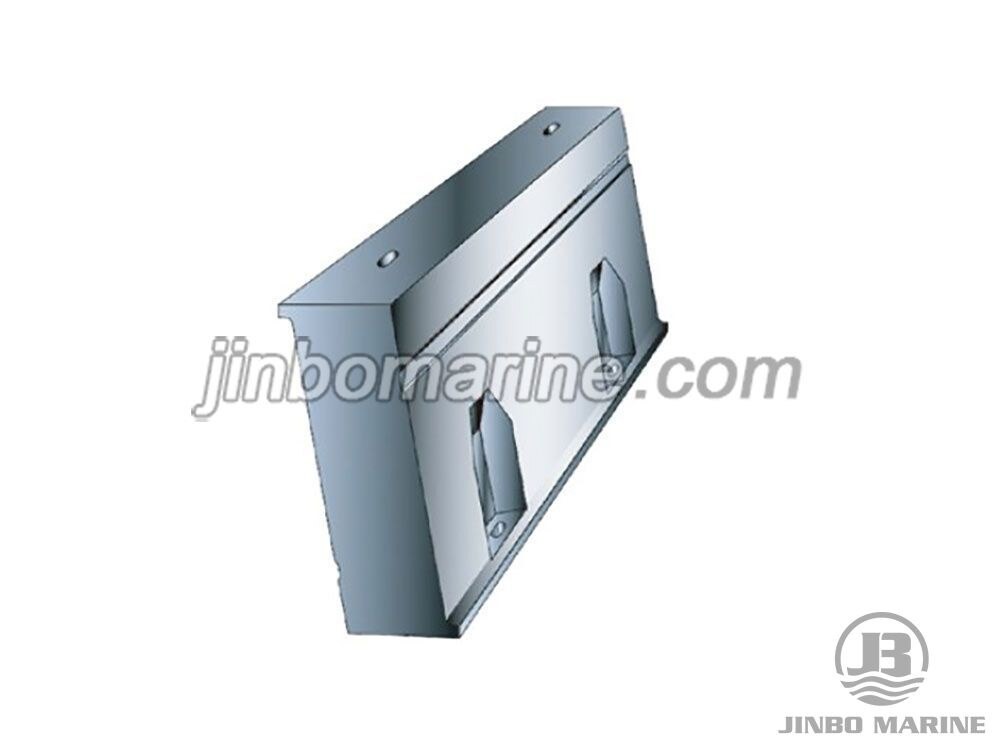

I Type Rubber Fender

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China I Type Rubber Fender:

Energy absorption is higher than that of SA type.

Installation of small size, wide range of use.

Can be vertical, horizontal or mixed flexible arrangement is arranged on the front end of the front panel.

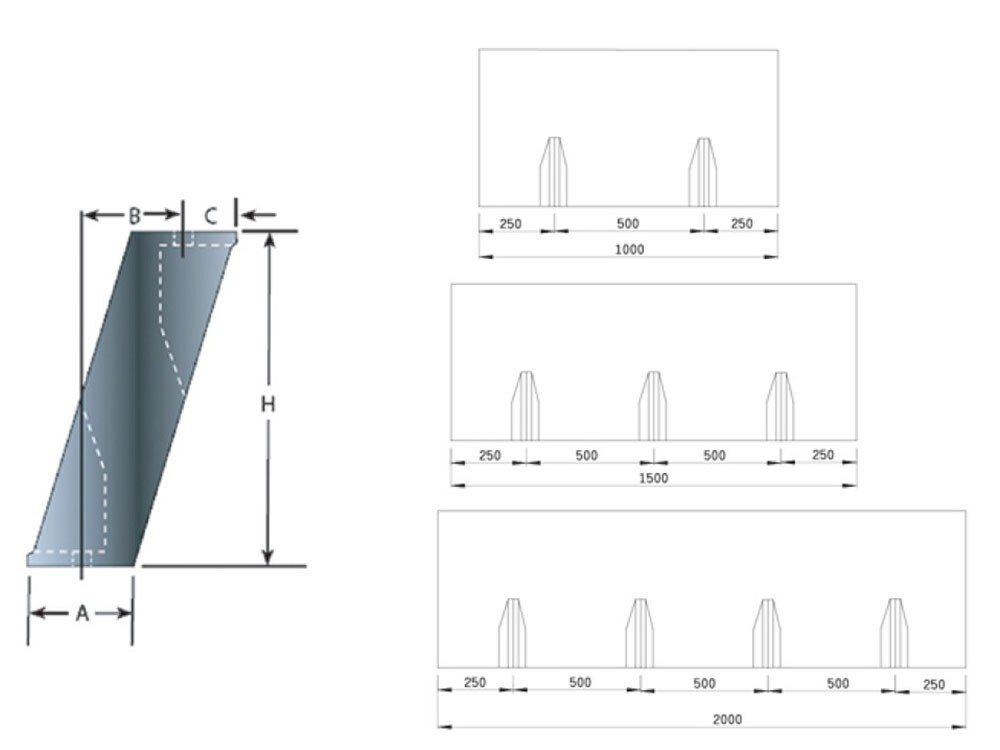

Size:

Specification:

Specification H A B C Weight
I300H 300 94 94 47 44
I400H 400 125 124 63 72
I500H 500 158 142 87 111
I550H 550 172 170 87 128
I600H 600 188 199 87 149
I750H 750 235 230 118 239
I800H 800 250 240 129 266
I1000H 1000 322 310 162 430
I1250H 1250 451 388 202 627
I1400H 1400 454 454 228 888
I1600H 1600 500 480 257 1018
