J Lock Chaser

Request a Quote Not what you need, please send your RFQs via Email.

Details

China J Lock Chaser:

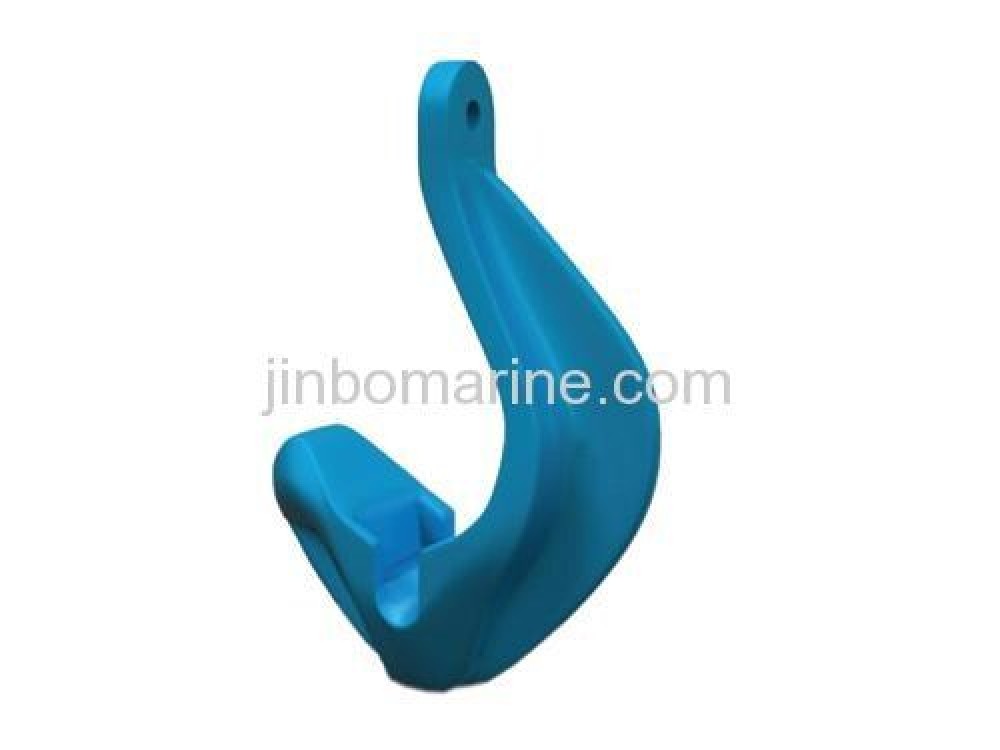

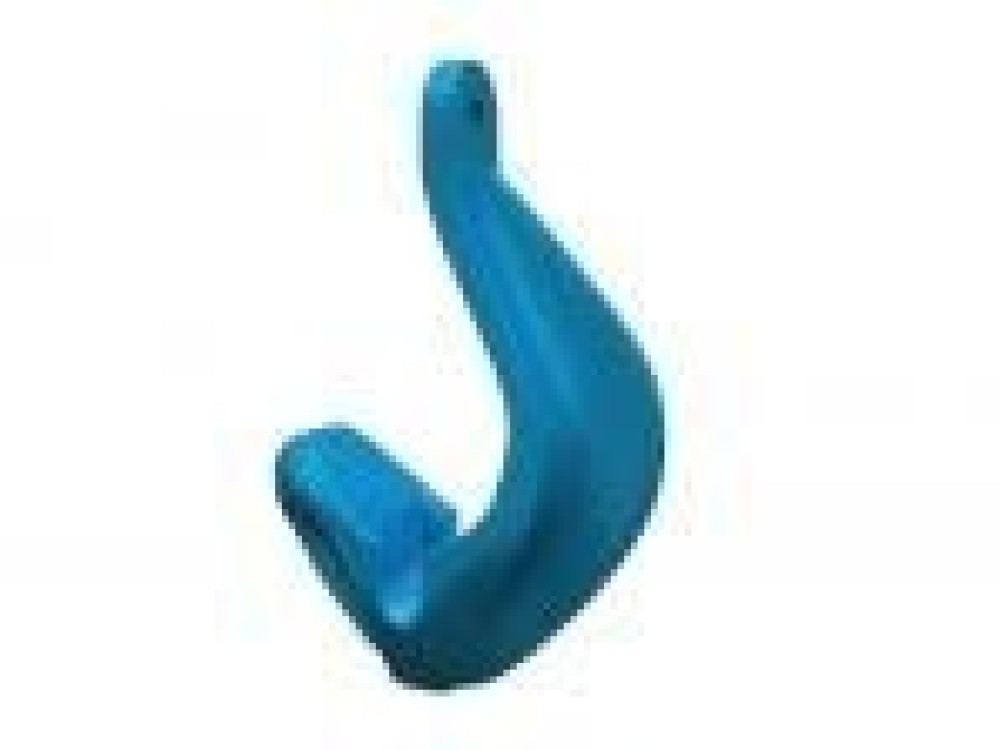

J-Lock Chaser is used for deep penetration twin shank anchor, J-shape permits catching the anchor chain after anchor has been installed.

The well-balanced and guiding design of chaser enables catch the chains when the chaser approaches a mooring at the point where the catenary angle is as high as 45 degrees.

Main specification

J Lock Chaser

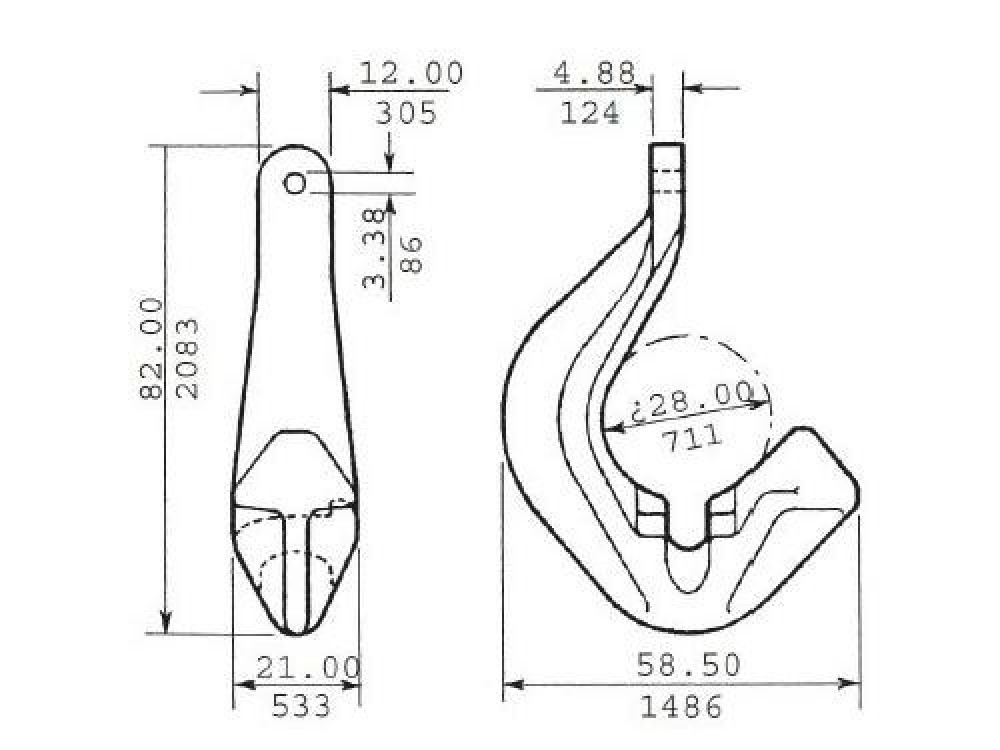

SWL(Ton) A(mm) B(mm) C(mm) D(mm) E(mm) G(mm) H(mm) Proof Load(T) Weight(kg)
100 2083 1486 1486 711 533 124 86 250 1778
