JDZ9-6 Voltage Transformer

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

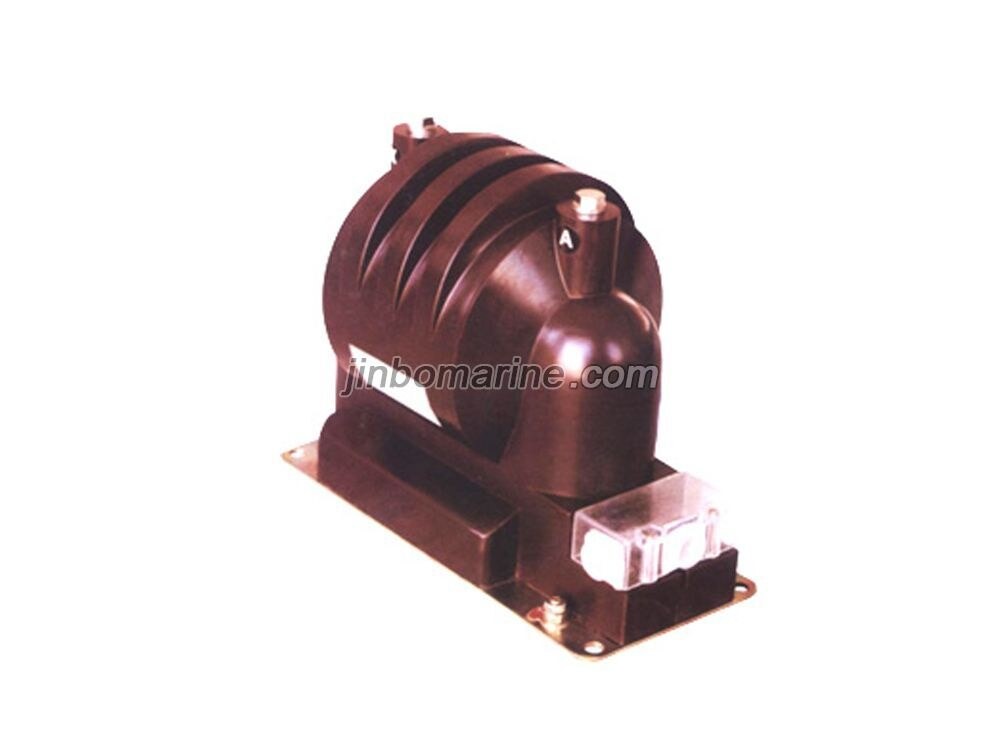

JDZ9-6 Voltage Transformer

The product complies with the standards GB1207 and IEC186

JDZ9-6 Voltage Transformer Parameters

Model Rated Frequency/Hz Accuracy Combination Rated Output/VA
JDZ9-3 50.6 0.2 40
0.5 100
1 200
3 240
JDZ9-6 50.6 0.2 40
0.5 100
1 200
3 240
JDZ9-10 50.6 0.2 40
0.5 100
1 200
3 240
JDZX9-3G 50.6 0.5/6P 60/100
JDZX9-6G
JDZX9-10G
Model Rated Voltage Ratio/V Ultimate Output /VA Rated Insulation Level/KV
JDZ9-3 3000/100 500 3.6/25/40
JDZ9-6 6000/100 500 7.2/32/60
JDZ9-10 10000/100 500 12/42/75
JDZX9-3G 3000/√3/100/√3/100/3 400 3.6/25/40
JDZX9-6G 6000/√3/100/√3/100/3 7.2/32/60
JDZX9-10G 10000/√3/100/√3/100/3 12/42/75

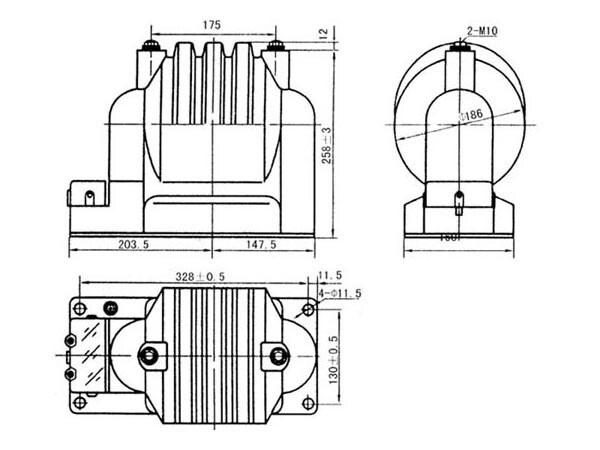

JDZ9-6 Voltage Transformer Drawing
