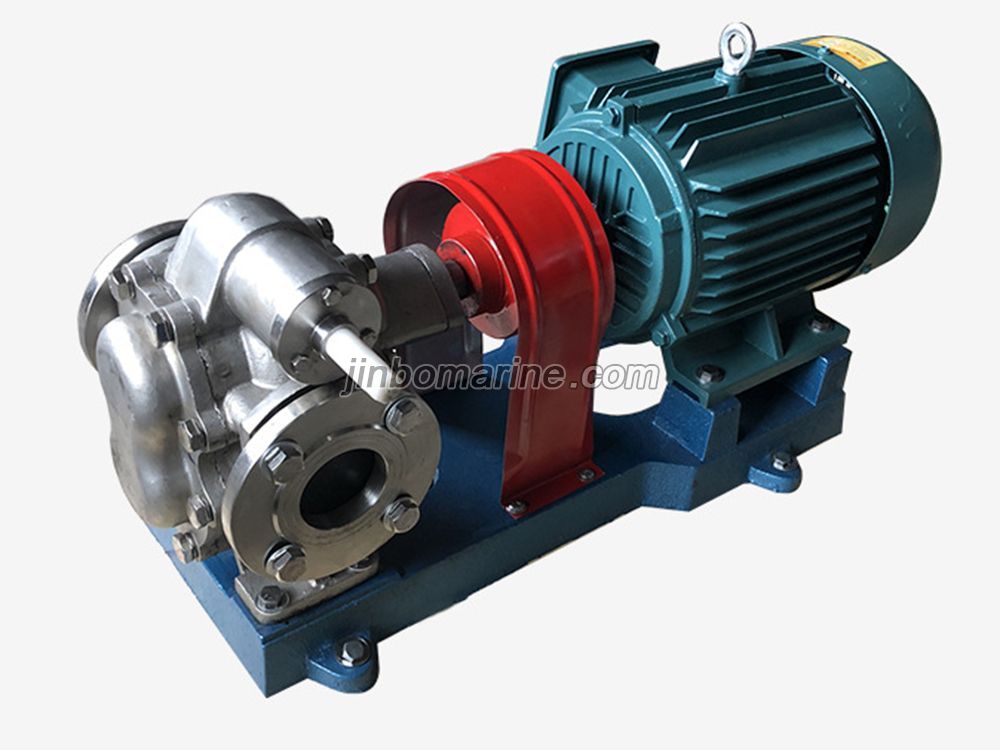

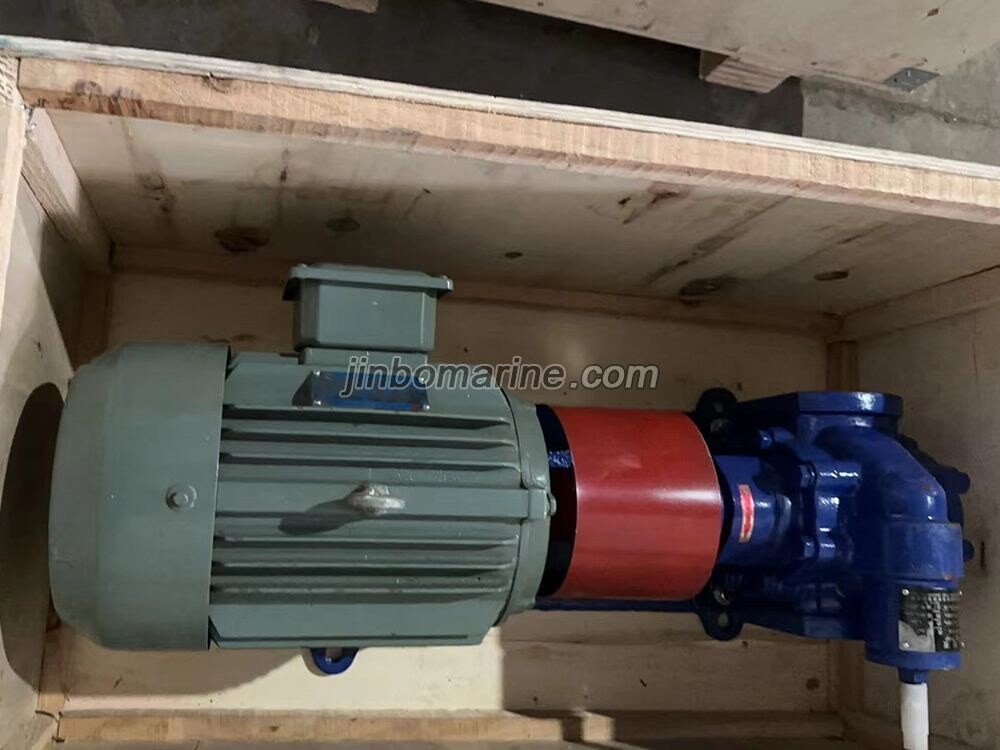

KCB-135 Series Marine Gear Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China KCB-135 Series Marine Gear Pump:

1、Application:

It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300C and with the viscosity of 5x 10°~ 1.5x

10*m' / s(5- 1500cSt). Reducing the speed, the pump can delivery the liquid that the

viscosity can be up to 5x 10'cSt.

2、Application Scope

It Can give performance astransfer pumpbooster pump in oil delivery system. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply

system and in all industry fields as lubricating pump.

Techincal data:

Model Capacity Exhaust pressure Speed Power
Q MPa r/min
KCB-18.3 1.1 1.45 1400 1.5
KCB-33.3 2 1.45 1420 2.2
KCB-55 3.3 0.33 1400 1.5
KCB-83.3 5 0.33 1420 2.2
KCB-135 8 0.33 940 2.2
KCB-200 12 0.33 1440 4
KCB-300 18 0.36 970 5.5
KCB-483.3 29 0.36 1470 11
KCB-633 38 0.28 740 11
KCB-960 58 0.28 980 22
KCB-1200 72 0.6 740 37
KCB-1600 96 0.6 985 45
KCB-1800 108 0.6 740 55
KCB-2500 150 0.6 989 75
KCB-2850 171 0.6 743 90
KCB-3800 228 0.6 989 110
KCB-4100 246 0.6 744 132
KCB-5400 324 0.6 989 160
KCB-5600 336 0.6 744 160
KCB-7600 456 0.6 989 200
