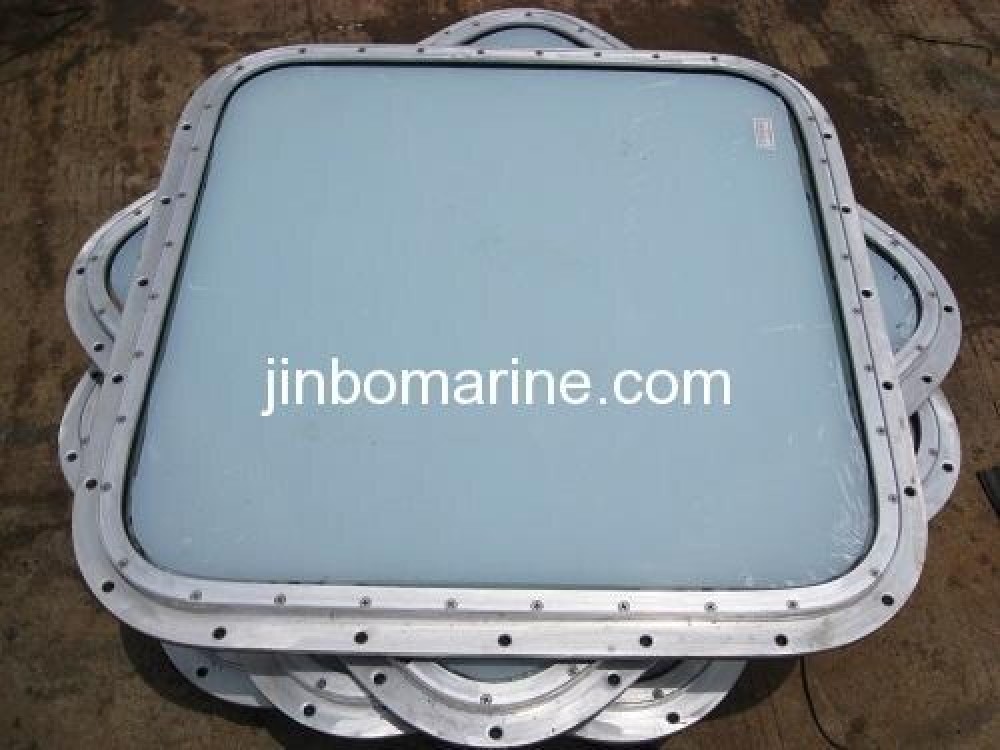

Marine Aluminum Fixed Window
- Category:Marine Window
- Material:Aluminum Alloy
- Standards:CB/T3226-1995
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Packing Details:Plywood Case
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Marine Aluminum Fixed Window:
Standard: CB/T3226-1995
It is installed in the wheel houses, bridges, enclosed spaces which is used for observation and operation of various types of ships and marine structures.
The shape can be rectangular, parallelogram or trapezoidal .
Types of non-opening windows:

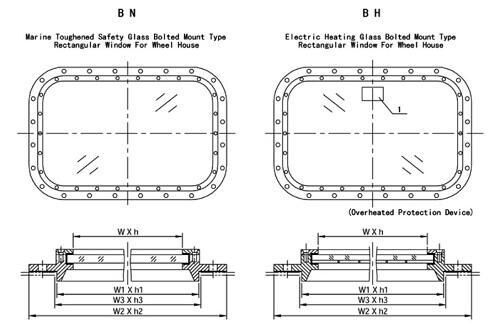

BH-Bolted fixed rectangular window with an electric heated glass pane
BN-Bolted fixed rectangular window with a toughened glass pane
Main Size List(mm)
| Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
| WXH | W1XH1 | W2XH2 | W3XH3 | r | BH | BN | BH | BN |
| 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 25.5 | 25.9 |
| 800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 28.1 | 28.7 | |
| 900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 28.2 | 30 | |
| 900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 30.9 | 32.9 | |
| 900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 33.9 | 36.1 | |
| 1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 41.6 | 44 | |
| 1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 45.9 | 48.6 | |
| 1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 50.6 | 53.6 | |
| 1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 56.1 | 59.4 | |
| 1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 61.2 | 64.9 | |
| 1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 66.3 | 70.3 | |
| 1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 72.4 | 76.8 | |
| 1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 77.5 | 82.5 | |
*The size is in the list is just for reference, it is can be customerized according to the actual situation of the vessel.
Mounting of the heated glass pane for fixed rectangular window for wheel house should conform to the requirements of ISO3434, power loading and parameters necessary for the glass pane as below.
|
Electrical Supply |
Overheating protection device |
Minimum power loading w/dw2 |
||||
|
Current |
Voltage (V) |
Frequency (HZ) |
7 |
12 |
17 |
|
|
Code |
||||||
|
DC |
24 |
- |
G |
7G01 |
12G01 |
17G01 |
|
S |
7S01 |
12S01 |
17S01 |
|||
|
110 |
- |
G |
7G02 |
12G02 |
17G02 |
|
|
S |
7S02 |
12S02 |
17S02 |
|||
|
220 |
- |
G |
7G03 |
12G03 |
17G03 |
|
|
S |
7S03 |
12S03 |
17S03 |
|||
|
G---group regulator, S---single regulator |
||||||
