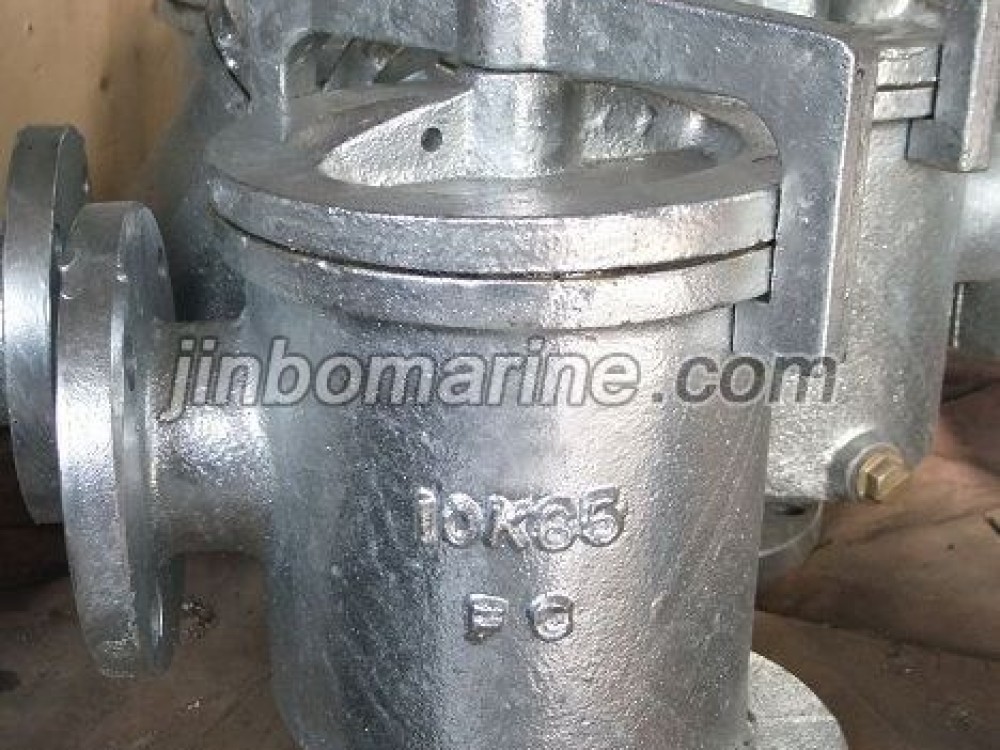

Marine Angle Galvanized Mud Box JIS F7203 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Angle Galvanized Mud Box JIS F7203 10K:

Design Standard: JIS F7203-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.1Mpa

Flange size as per JIS B2220 - 10K

Main Material:

Body: Cast Iron with Galv (FC200)

Bonnet: Cast Iron with Galv (FC200)

Cover Push: Cast Iron with Galv (FC200)

Strainer: SS400 or SUS304

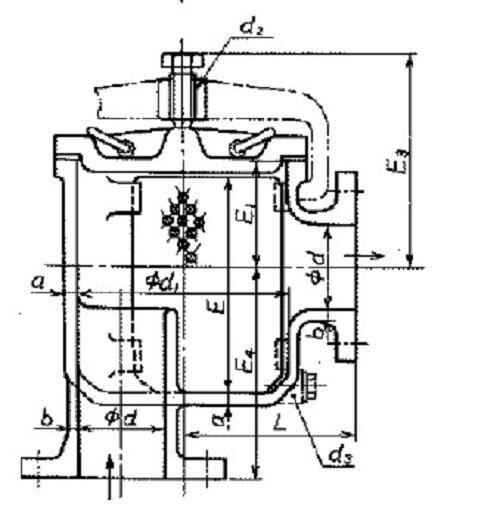

Main Size List(mm):

DN
d L L1 D C No of Bolt Hole Hole E
40 40 90 22.5 140 105 4 19 145
50 50 120 40 155 120 4 19 145
65 65 150 52.5 175 140 4 19 180
80 80 160 55 185 150 8 19 195
100 100 190 70 210 175 8 19 225
125 125 235 87.5 250 210 8 19 275
150 150 280 110 280 240 8 23 320
200 200 330 135 330 290 12 23 405
250 250 380 155 400 355 16 25 525
