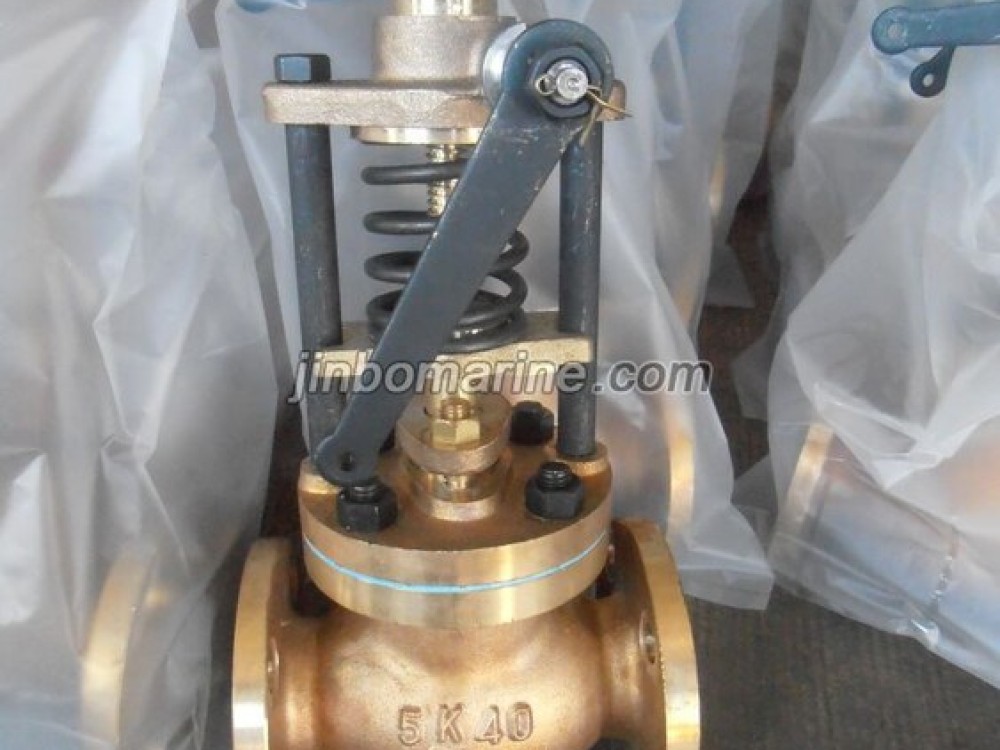

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Emergency Shut-Off Valve JIS F7399 5K:

Marine Emergency Shut-Off Valve is also called as Marine Quick Closing Valve.It is used to shut off the fuel oil/lubricatoin oil pipeline in emergency. It can controlled by lever or the air cylinder. Materical can be cast steel, bronze, nodular iron.

Operation type: Manual (Lever) or Pneumatically operated

Design Standard: JIS F7399-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure:Body- 0.7Mpa, Seat-0.2Mpa,Seal for quick closing-0.1Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: Bronze or Brass

Bonnet: Bronze or Brass

Seat: Bronze or Brass

Disc: Bronze or Brass

Stem: Brass (C3771BD)

Operation Spindle: SUS403

Operation Lever: SUS403

Handwheel: FC200 (Cast iron)

Gasket: non-asbestos

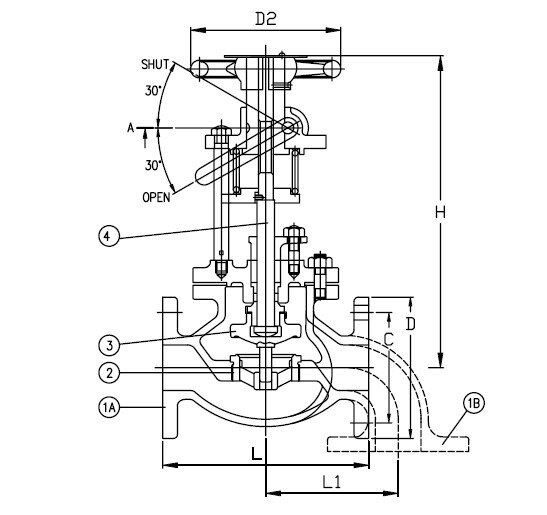

Main Size List(mm):

DN
d L D C Bolt Hole NO. Bolt Hole Diameter Flange thickness H D2

5K15

15 100 80 60 4 12 10 265 120
5K20 20 110 85 65 4 12 10 265 120
5K25 25 120 95 75 4 12 10 265 120
5K40 40 160 120 95 4 15 12 310 140
5K50 50 210 130 105 4 15 14 335 160
5K65 65 250 155 130 4 15 14 395 180
5K80 80 280
 180 145 4 19 18 420 180
10K15 15 110 95 70 4 15 12 265 120
10K20 20 120 100 75 4 15 14 265 120
10K25 25 130 125 90 4 19 14 265 120
10K40 40 180 140 105 4 19 16 310 140
10K50 50 220 155 120 4 19 16 335 160
10K65 65 270 175 140 4 19 18 395 180
10K80 80 300 185 150 8 19 18 420 180
