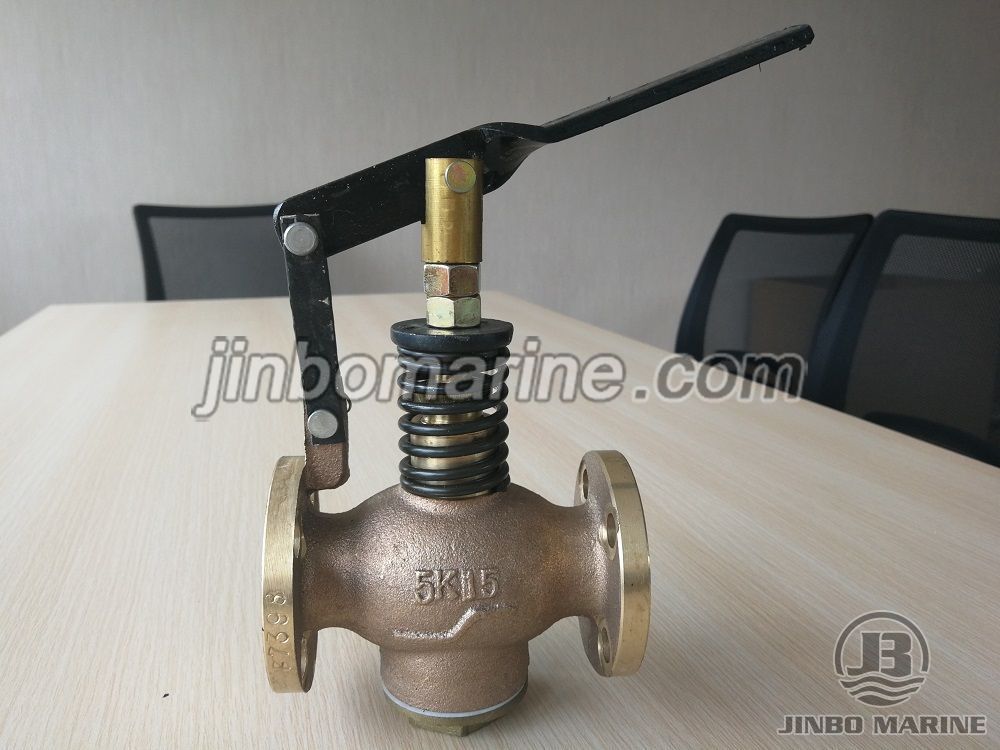

Marine Bronze Fuel Oil Tank Self-Closing Drain Valve JIS F7398F

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Fuel Oil Tank Self-Closing Drain Valve JIS F7398F:

Marine Bronze Fuel oil Tank Self-Closing Drain Valve JIS F7398 has two types, U type and F type. The pressure can be 5K or 10k, and the operation type can be lever or push button.

Design Standard: JIS F7398-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa

Flange size as per JIS B2220 - 5K or 10K

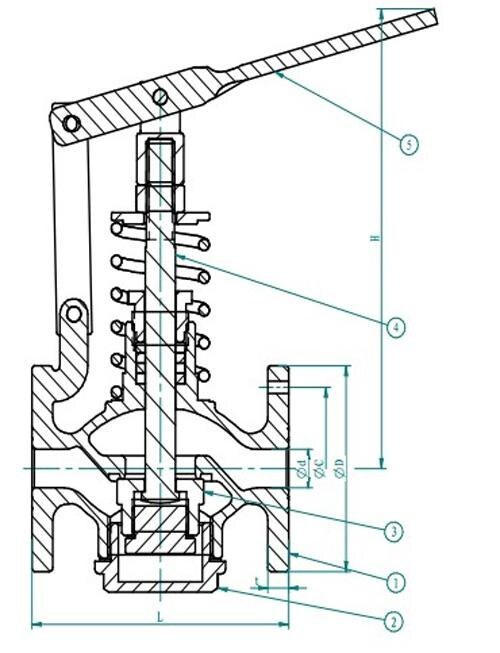

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Stem: Brass (C3771BD)

5. Gasket: non-asbestos

Main Size List(mm):

DN d L D C NO. h t H
5K15F 15 110/120 80 60 4 12 9 179
5K20F 20 130 85 65 4 12 10 187
5K25F 25 130 95 75 4 12 10 210
5K40F 40 180 120 95 4 15 12 229
10K20F 20 130 100 75 4 15 14 187
