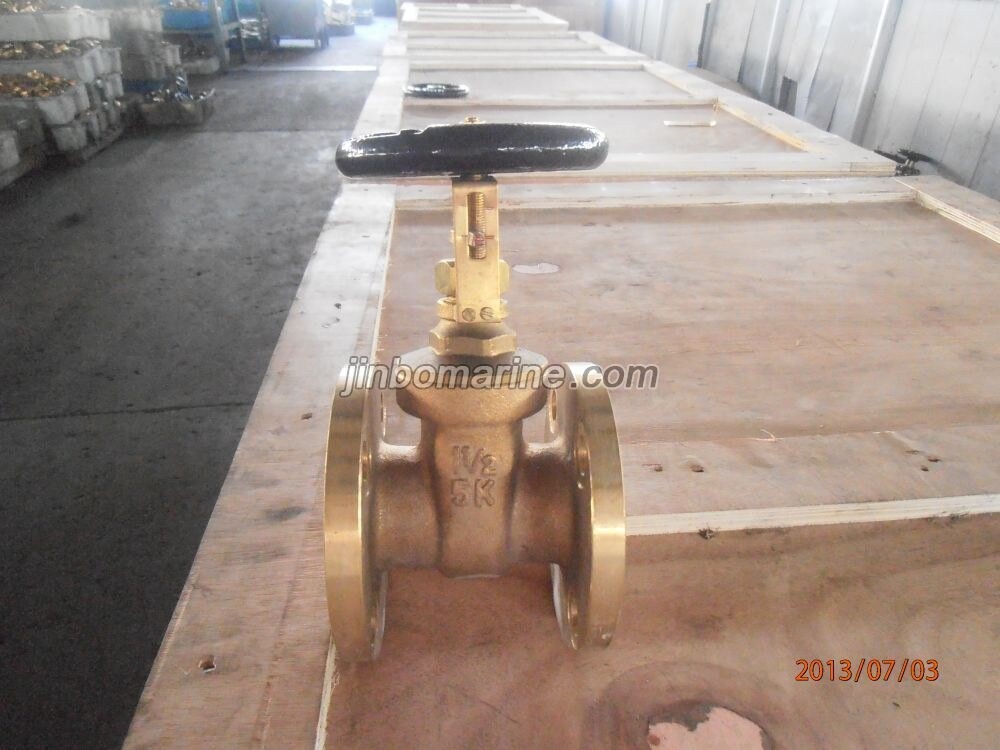

Marine Bronze Gate Valve Class 150 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Gate Valve Class 150 5K:

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

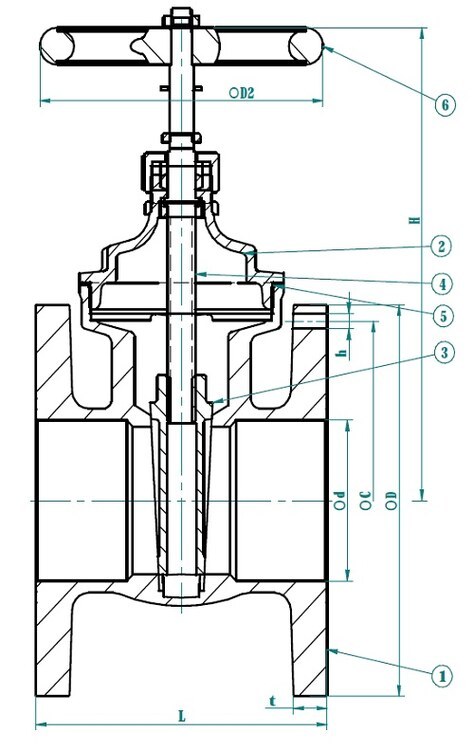

Main Material:

1-Body: Bronze (BC6)

2-Bonnet: Bronze (BC6)

3-Disc:Bronze(BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR or non-asbestos

6-Handwheel: Cast Iron (FC200)

Main Size List(mm):

DN d L D C No of Bolt h t H D2
15 20 80 80 60 4 12 9 109 80
20 25 80 85 65 4 12 9 110 80
25 25 80 95 75 4 12 9 110 80
32 39 100 115 90 4 19 11 142 100
40 39 100 120 95 4 19 11 142 100
50 50 115 130 105 4 19 12 167 125
65 62 127 155 130 4 19 13 195 125
80 74 142 180 145 4 19 15 218 140
100 100 165 200 165 8 19 15 271 180
