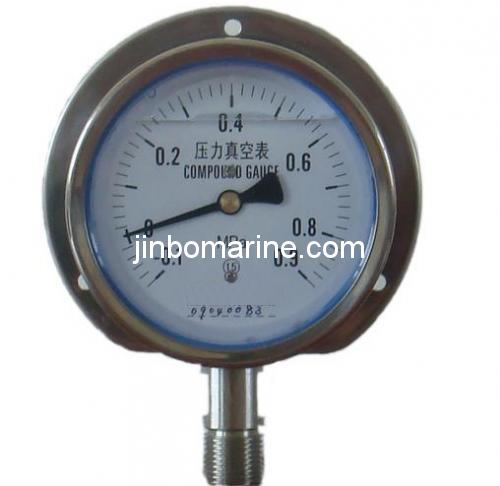

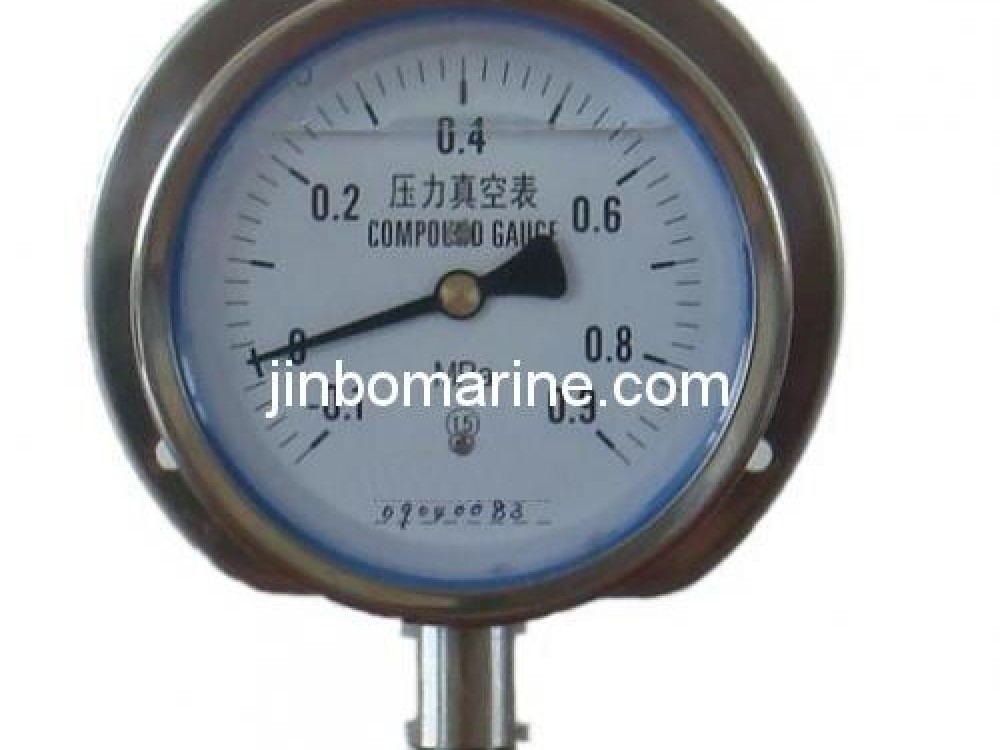

Marine Compound Gauge

Marine Compound Gauge is also called as marine pressure vacuum gauge. It can measure the pressure and the vacuum.

Dial Diameter(mm)：60,75,100,150 ；
Measurement Range (Mpa): 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60 -0.10~0, -0.1~-0.06, -0.1~0.15, -0.1~0.3, -0.1~0.5, -0.1~0.9, -0.1~1.5, -0.1~2.4
Accuracy：2.5,1.6,1.0
Connection Thread：M14×1.5,M10×1,M20×1.5,G1/2", G3/8"
Working Temperature:-40℃～70℃

Case Material:iron alloy, aluminum alloy, stainless steel, copper alloy
