Marine Nodular Iron Globe Valve JIS F7321 5K
- Category:JIS Marine Globe Valve
- Material:Nodular Iron/Ductile Iron
- Standards:JIS F7321
- Certificate:CCS, Mill Certifcate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

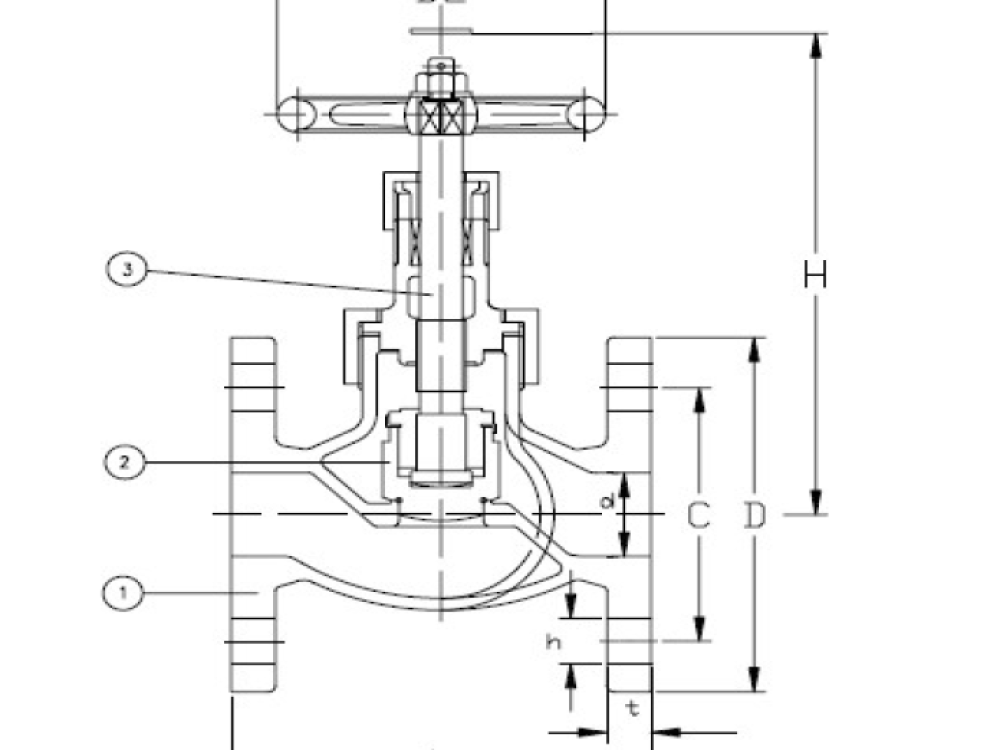

Marine Nodular Iron Globe Valve JIS F7321 5K Drawing

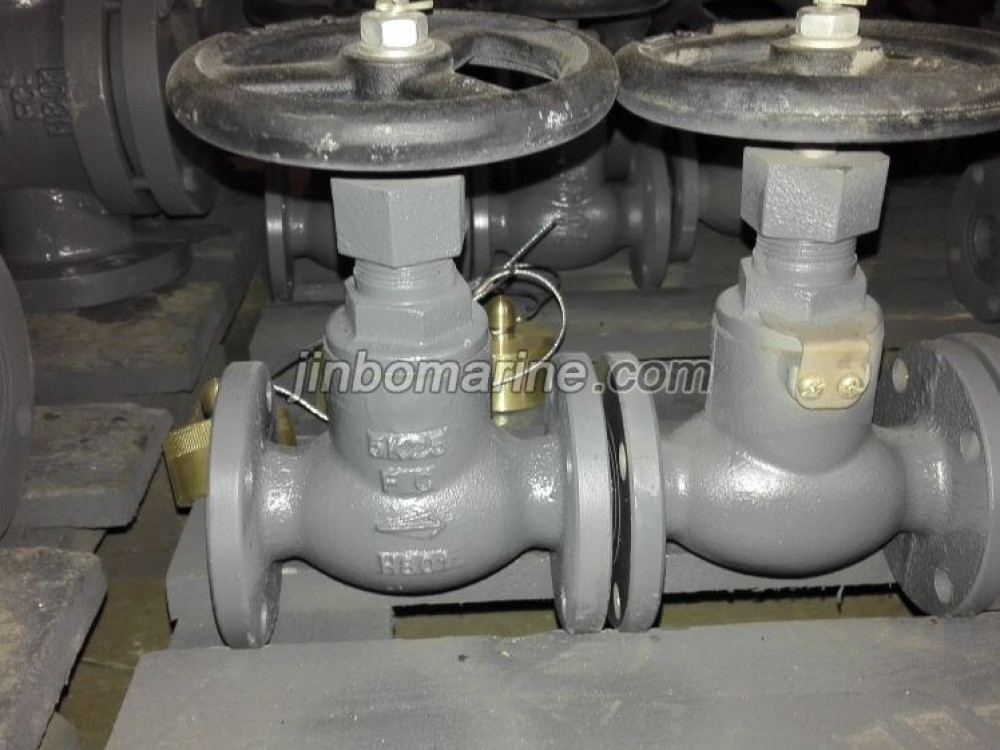

China Marine Nodular Iron Globe Valve JIS F7321 5K:
Marine Nodular Iron Globe Valve or Marine Ductile Iron Globe Valve is from small size DN15~DN40.
Design Standard: JIS F7312-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange size as per JIS B2220 -5K
Material:
Body/Bonnet-Ductile Iron FCD450
Seat-SUS (SCS2) /Bronze (BC6)
Stem-SUS (SCS2) /Brass (C3771BD)
Main Size List (mm):
| DN SIZE | IMPA CODE | L | C | Hole | Weight (kg) |
| 5K15 | 750301 | 100 | 80 | 4 X D12 | 1.98 |
| 5K20 | 750302 | 110 | 85 | 4 X D12 | 2.80 |
| 5K25 | 750303 | 120 | 95 | 4 X D12 | 4.18 |
| 5K32 | 750304 | 140 | 115 | 4 X D15 | 5.53 |
| 5K40 | 750305 | 160 | 120 | 4 X D15 | 7.08 |
