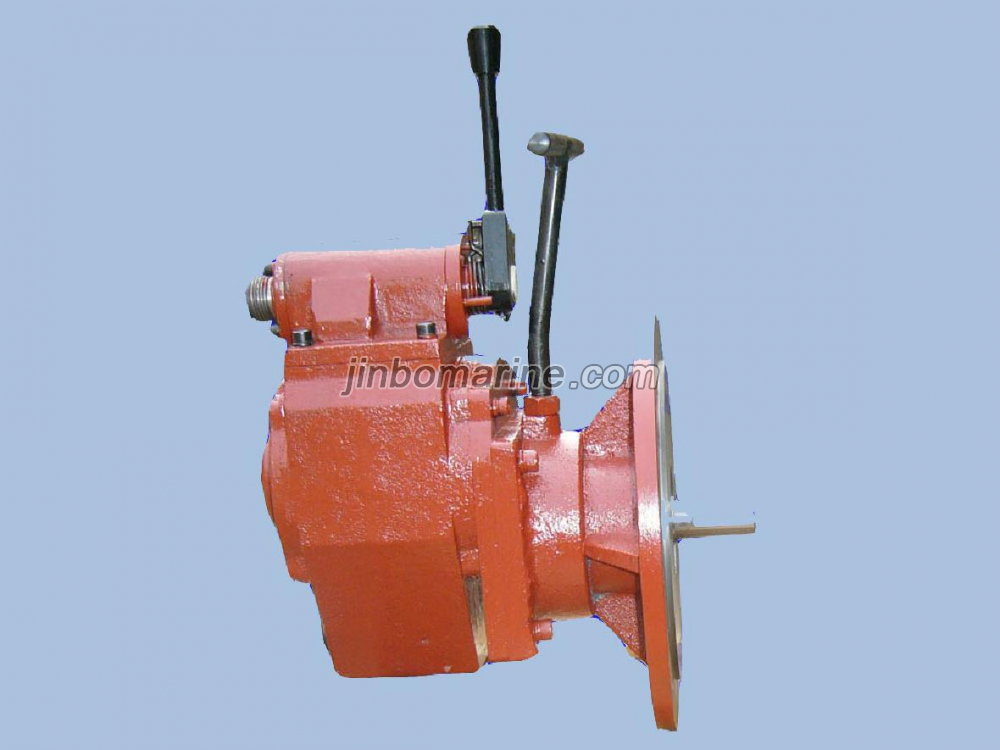

Marine Pneumatic Motor TMYJ4-4B/TMYJ6-4B

Request a Quote Not what you need, please send your RFQs via Email.

Details

Introduction

1.Marine pneumatic motor (hereinafter referred to as pneumatic motor) is a device that converts the pressure energy of compressed air into rotating mechanical energy.Its function is equivalent to a motor or a hydraulic motor, that is, the output torque to drive the mechanism for rotation.

2. the main difference between pneumatic motor and electric motor (or motor) is: high adaptability, small temperature rise;Speed can be changed with the load;Quick start, quick stop, and very easy to change direction;Simple stepless speed regulation, from zero to maximum, flexible operation;The starting torque is large, and the band load starts;Simple structure and long service life

3.not affected by the external environment, even in the water, dust, damp, dirty and other harsh environment, because the air motor running internal pressure is greater than the external pressure.

4.safety, explosion-proof, pneumatic motor does not produce sparks, overheating, explosion, short circuit (electricity) and other dangerous factors, especially suitable for the environment with inflammable and explosive substances or high temperature, can be used for LNG carriers, petrochemical raw material carriers, Marine platforms, deck machinery, etc

Technical data sheet

Model

Power(KW)

Working pressure(Mpa)

Rated speed(r/min)

Torque (m.N)

Gas Consumption(m³/min)

TMYJ4-4B

4.4

0.63

800

52

5.9

TMYJ6-4B

6

0.63

700

82

7.6

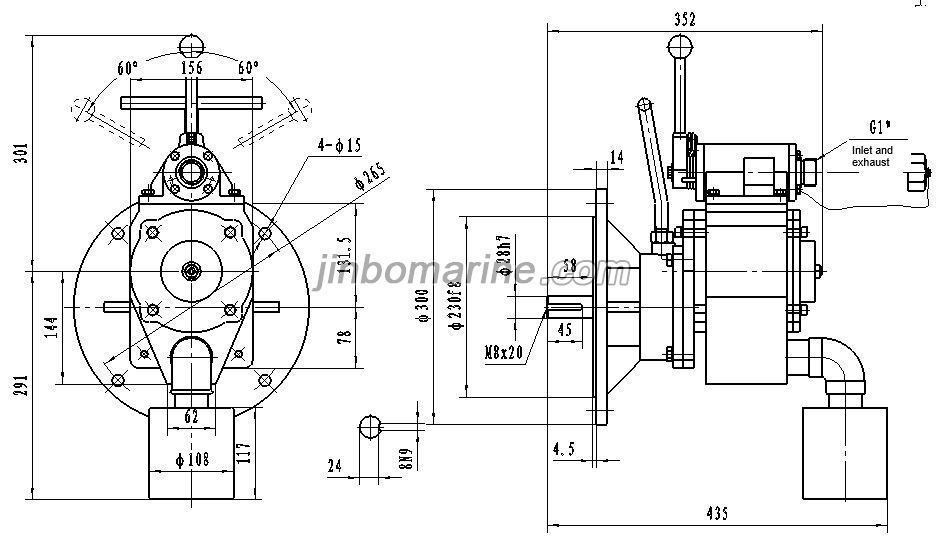

Mounting and Overall Dimensions

TMYJ4-4B

TMYJ6-4B
