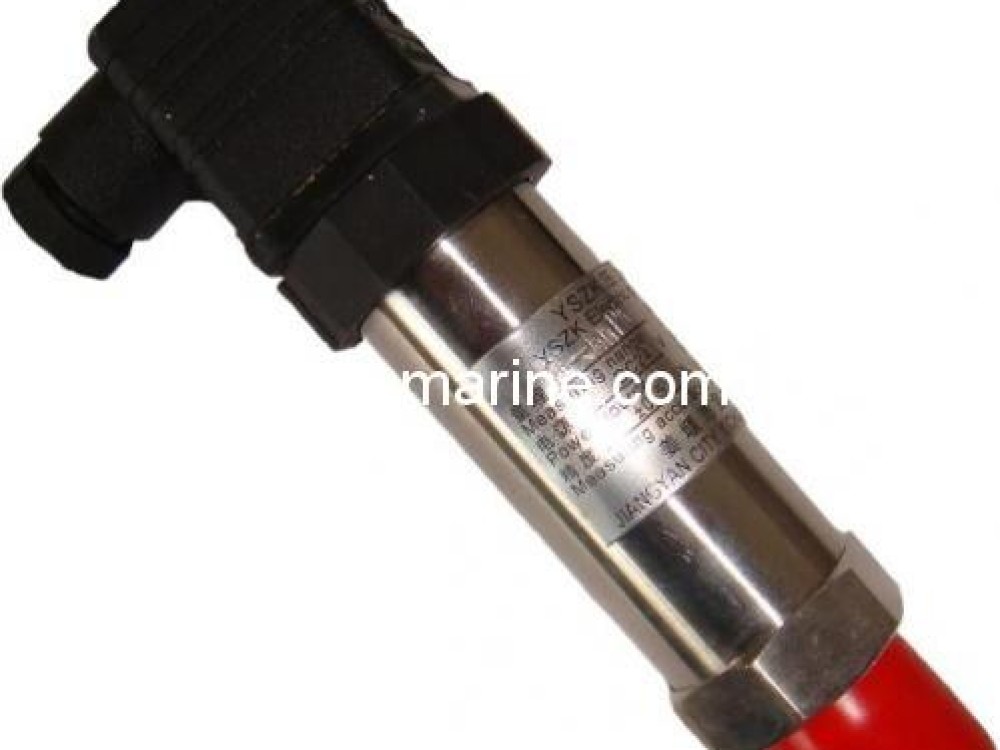

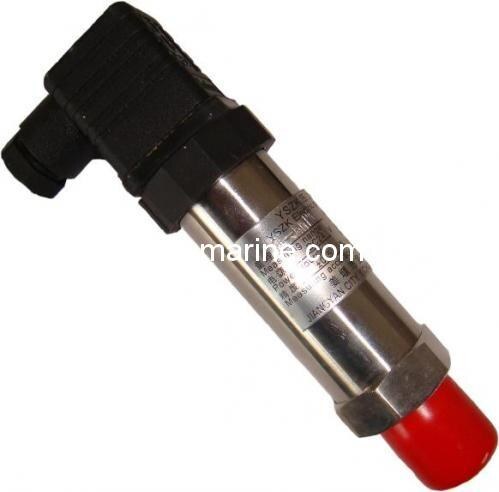

Marine Pressure Sensor YSZK series

Marine Pressure Sensor YSZK series is composed of diffuse silicon pressure sensor and digital signal transmitting circuit. It is covered by the stainless steel body, with the features small size, easy installment, high accuracy, reliability and long service life.It is used to measure the pressure of liquid and gas in the vessels and other equipments.

Supply Power: DC 24V

Accuracy: +-0.5% FS

Working Temperature: -20~80 degree centigrade

Output Signal: DC4~20mA

Protection: IP66

Overload: 250% above max range

Pressure Connection Size: G1/4",G1/2" M20*1.5
