Marine Steel Weathertight Door (Round Corner)
- Category:Marine Door
- Material:Steel
- Standards:CB/T3477-1996
- Certificate:CCS,DNV,GL, LR, ABS, BV, NK,KR,RINA,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

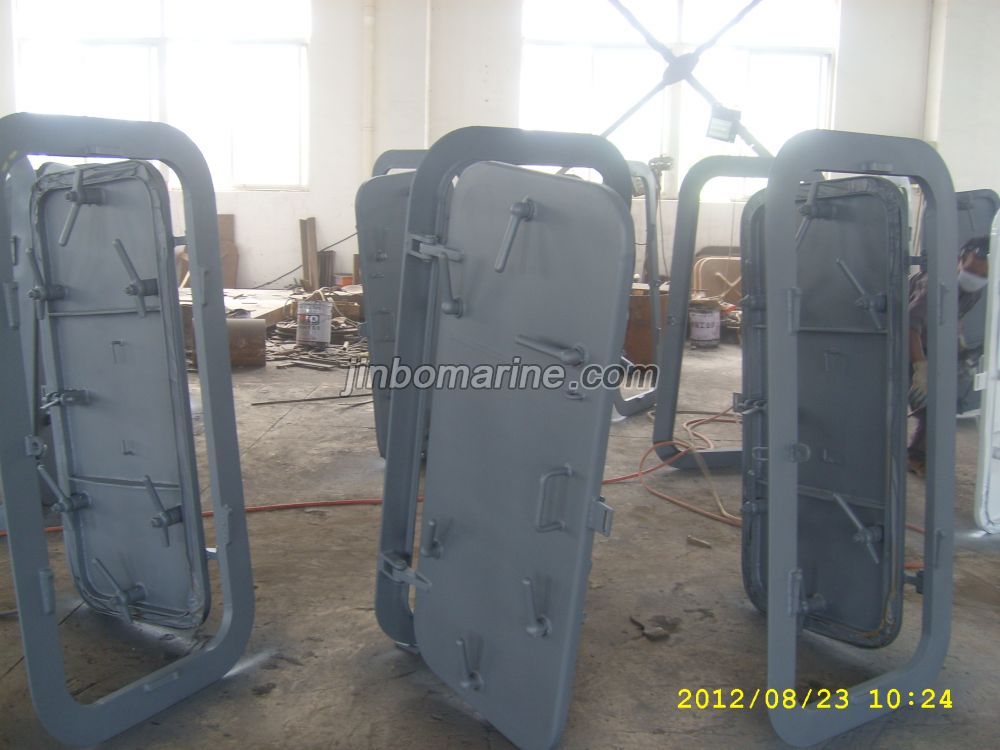

China Marine Steel Weathertight Door (Round Corner):
Standard: CB/T3477-1996
It is used as the doorway of superstructure abover freeboard deck or deck house, meet the requirements of ISO6042-1980.
1.Door Class and Applicable Position
| Class | Applicable Position |
| A | Front bulkhead of the first superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular) |
| B | Front bulkhead of the second superstructure above freeboard deck(in the range 0.1-0.7L forward after perpendicular), and the aft bulkhead & side wall of the first superstructure. |
| C | Front bulkhead of the third superstructure above freeboard deck(in the range 0.2-0.6L forward after perpendicular),and the aft bulkhead & side wall of the second superstructure. |
| D | Front bulkhead of the fourth superstructure above freeboard deckand the aft bulkhead & side wall of the third superstructure. |

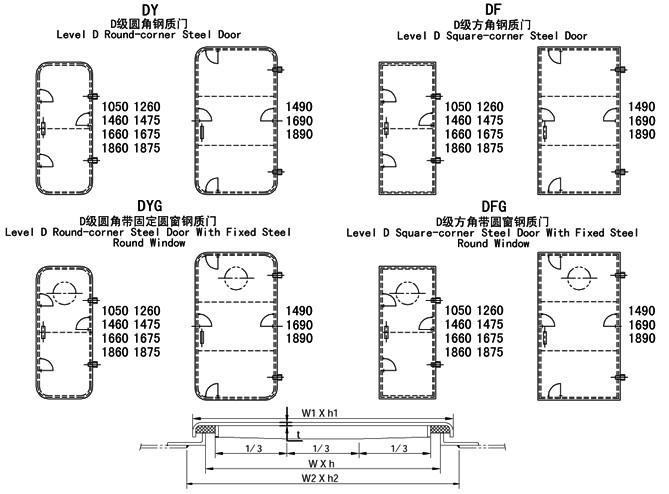

2.Door Type
AF-Class A, square corner
AY-Class A, round corner
BF-Class B, square corner
BY-Class B, round corner
CF-Class C, square corner
CY-Class C, round corner
DF-Class D, square corner
DY-Class D, round corner
| Door Leaf Thickness | Size Of Shelter | Frame Height | Frame Material |
| 8 | 50x6 | 32 | Angle Steel L100X63X10 |
| 6 | 32x4 | 34 | Angle Steel L100X63X10 |
| 4 | 32x4 | 36 | Angle Steel L100X63X8 |
3.Test Requirement:
Class A,B,C-The door must pass the hose test with the nozzle diameter 12.5mm, the water pressure 0.25Mpa.
Class D-The door must pass the hose test from the top from the bottom ,without the water pressure requirement.
4.Main Size List(mm):
Class A
| Type | Standard Code | Doorway Size | Door Leaf Size | Wall Opening Size | Door Leaf Thickness | Stiffener | |||||||
| Length of vessel L (meter) | H3 | ||||||||||||
| HxW | H1xW1 | AF | AY | ≤80 | ＞80 | ≤80 | 80～120 | 120～150 | 150～210 | 210～300 | |||
| AF AY | 1050 | 1000x500 | 1055x555 | 1100x600xR80 | 1100x600xR150 | 6 | — | 75x6 | — | — | — | — | — |
| 1260 | 1200x600 | 1255x655 | 1300x700xR80 | 1300x700xR150 | 6 | — | 75x6 | — | — | — | — | 400 | |
| 1460 | 1400x600 | 1455x655 | 1500x700xR80 | 1500x700xR150 | 6 | 8 | — | 65x9 | 65x9 | 75x9 | 75x9 | 300 | |
| 1475 | 1400x750 | 1455x805 | 1500x850xR80 | 1500x850xR150 | 6 | 8 | — | 75x9 | 75x12 | 90x9 | 90x12 | 300 | |
| 1490 | 1400x900 | 1455x955 | 1500x1000xR80 | 1500x1000xR150 | — | 8 | — | 90x9 | 90x12 | 100x12 | 100x12 | 300 | |
| 1660 | 1600x600 | 1655x655 | 1700x700xR80 | 1700x700xR150 | — | 8 | — | 65x9 | 75x9 | 75x12 | 75x12 | 340 | |
| 1675 | 1600x750 | 1655x805 | 1700x850xR80 | 1700x850xR150 | — | 8 | — | 75x12 | 90x9 | 90x12 | 90x12 | 340 | |
| 1690 | 1600x900 | 1655x955 | 1700x1000xR80 | 1700x1000xR150 | — | 8 | — | 90x12 | 100x12 | 125x9 | 125x9 | 340 | |
Class B
| Type | Standard Code | Doorway Size | Door Leaf Size | Wall Opening Size | Door Leaf Thickness | Stiffener | ||||||||
| Length of vessel L (meter) | H3 | |||||||||||||
| HxW | H1xW1 | BF | BY | ≤80 | ＞80 | ≤80 | 80～150 | 150～210 | 210～300 | 150～210 | 210～300 | |||
| BF BY | 1050 | 1000x500 | 1055x555 | 1100x600xR80 | 1100x600xR150 | 6 | — | 50x5 | — | — | — | — | — | — |
| 1260 | 1200x600 | 1255x655 | 1300x700xR80 | 1300x700xR150 | 6 | — | 50x5 | — | — | — | — | — | 400 | |
| 1460 | 1400x600 | 1455x655 | 1500x700xR80 | 1500x700xR150 | 6 | 8 | 50x5 | 65x6 | 65x9 | 65x9 | 65x9 | 65x9 | 470 | |
| 1475 | 1400x750 | 1455x805 | 1500x850xR80 | 1500x850xR150 | 6 | 8 | 50x5 | 65x9 | 75x9 | 75x9 | 75x9 | 75x9 | 470 | |
| 1490 | 1400x900 | 1455x955 | 1500x1000xR80 | 1500x1000xR150 | — | 8 | — | 75x9 | 75x12 | 75x12 | 75x12 | 75x12 | 470 | |
| 1660 | 1600x600 | 1655x655 | 1700x700xR80 | 1700x700xR150 | — | 8 | — | 65x6 | 65x9 | 65x9 | 65x9 | 65x9 | 540 | |
| 1675 | 1600x750 | 1655x805 | 1700x850xR80 | 1700x850xR150 | — | 8 | — | 65x9 | 75x9 | 75x12 | 75x9 | 75x12 | 540 | |
| 1690 | 1600x900 | 1655x955 | 1700x1000xR80 | 1700x1000xR150 | — | 8 | — | 75x9 | 75x12 | 90x12 | 75x12 | 90x12 | 540 | |
Class C
| Type | Standard Code | Doorway Size | Door Leaf Size | Wall Opening Size | Door Leaf Thickness | Stiffener | |||||
| Length of vessel L (meter) | H3 | ||||||||||
| HxW | H1xW1 | CF | CY | ≤80 | ＞80 | ≤80 | 80～140 | 140～300 | |||
| CF CY | 1050 | 1000x500 | 1055x555 | 1100x600xR80 | 1100x600xR150 | 4 | — | 50x5 | — | — | — |
| 1260 | 1200x600 | 1255x655 | 1300x700xR80 | 1300x700xR150 | 4 | — | 50x5 | — | — | 400 | |
| 1460 | 1400x600 | 1455x655 | 1500x700xR80 | 1500x700xR150 | 4 | 6 | 50x5 | 65x6 | 65x6 | 470 | |
| 1475 | 1400x750 | 1455x805 | 1500x850xR80 | 1500x850xR150 | 4 | 6 | 50x5 | 65x6 | 65x6 | 470 | |
| 1490 | 1400x900 | 1455x955 | 1500x1000xR80 | 1500x1000xR150 | — | 6 | — | 65x6 | 65x9 | 470 | |
| 1660 | 1600x600 | 1655x655 | 1700x700xR80 | 1700x700xR150 | — | 6 | — | 65x6 | 65x6 | 540 | |
| 1675 | 1600x750 | 1655x805 | 1700x850xR80 | 1700x850xR150 | — | 6 | — | 65x6 | 65x6 | 540 | |
| 1690 | 1600x900 | 1655x955 | 1700x1000xR80 | 1700x1000xR150 | — | 6 | — | 65x6 | 65x9 | 540 | |
Class D
| Type | Standard Code | Doorway Size | Door Leaf Size | Wall Opening Size | Door Leaf Thickness | Stiffener | ||
| HxW | H1xW1 | DF | DY | WidthxThickness | H3 | |||
| DF DY | 1050 | 1000x500 | 1055x555 | 1100x600xR80 | 1100x600xR150 | 4 | 50x5 | — |
| 1260 | 1200x600 | 1255x655 | 1300x700xR80 | 1300x700xR150 | 4 | 50x5 | — | |
| 1460 | 1400x600 | 1455x655 | 1500x700xR80 | 1500x700xR150 | 4 | 50x5 | — | |
| 1475 | 1400x750 | 1455x805 | 1500x850xR80 | 1500x850xR150 | 4 | 50x5 | — | |
| 1490 | 1400x900 | 1455x955 | 1500x1000xR80 | 1500x1000xR150 | 4 | 50x5 | 600 | |
| 1660 | 1600x600 | 1655x655 | 1700x700xR80 | 1700x700xR150 | 6 | 65x6 | — | |
| 1675 | 1600x750 | 1655x805 | 1700x850xR80 | 1700x850xR150 | 6 | 65x6 | — | |
| 1690 | 1600x900 | 1655x955 | 1700x1000xR80 | 1700x1000xR150 | 6 | 65x6 | 600 | |
| 1860 | 1800x600 | 1855x655 | 1900x700xR80 | 1900x700xR150 | 6 | 65x6 | — | |
| 1875 | 1800x750 | 1855x805 | 1900x850xR80 | 1900x850xR150 | 6 | 65x6 | — | |
| 1890 | 1800x900 | 1855x955 | 1900x1000xR80 | 1900x1000xR150 | 6 | 65x6 | 600 | |
