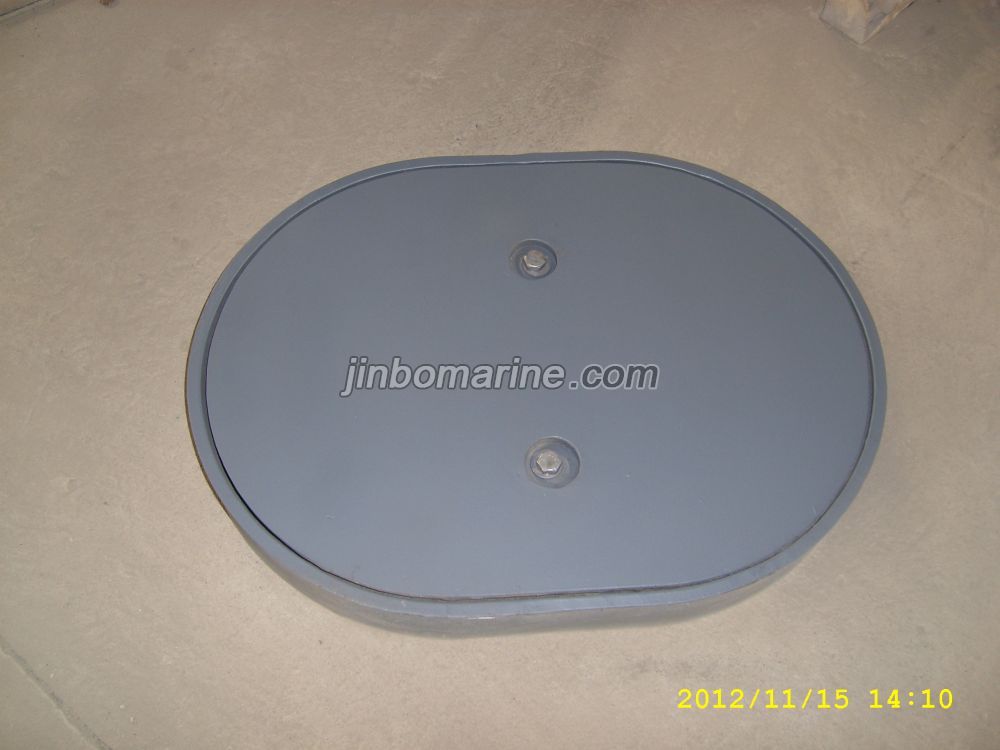

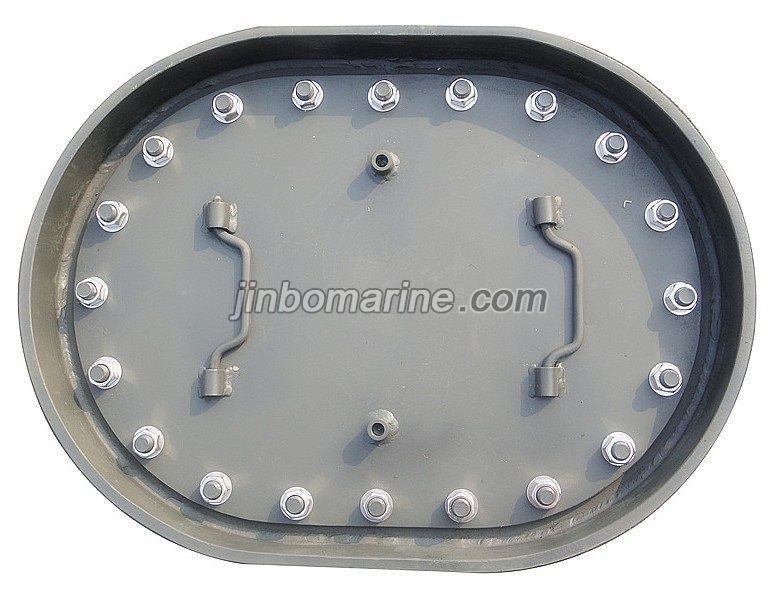

Marine Sunk Manhole Cover Type C
- Category:Marine Cover
- Material:Steel
- Standards:CB/T19-2001
- Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

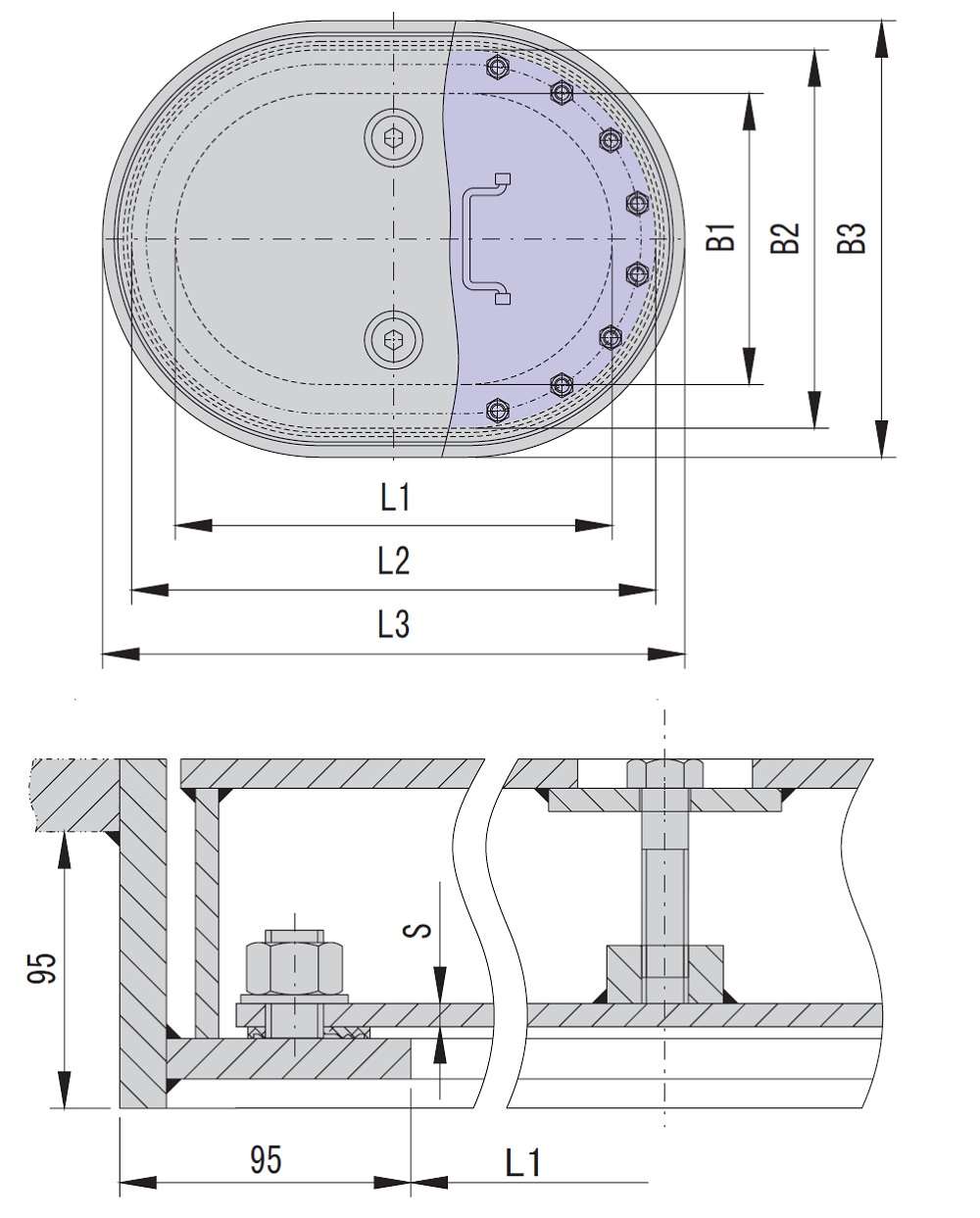

Marine Sunk Manhole Cover Type C Drawing
China Marine Sunk Manhole Cover Type C:
Standard: CB/T19-2001
Marine Manhole Cover is used for manhole on the oil tanks, water tanks, voil tanks and other tanks on various shipes. It is fixed on the falt positions on the hold bottom, deck and bulkhead.There are Type A,B,C & D. The shape can be round, oval, square.
*Manhole Cover Type C is Marine Sunk Manhole Cover.And in GB11628-89, it is Type D.
Main Material:
Cover: Carbon Steel
Coaming: Carbon Steel
Seal Ring: NBR
Bolt, Nut, Washer: Stainless Steel, Caron Steel , Copper
Main Size List(mm):
| Model | Nominal Size | L | L1 | L2 | B | B1 | B2 | S | Bolt | Weight | |
| LxB | Diamter | Quantity | kgs | ||||||||
| C1 | 450x350 | 450 | 470 | 650 | 350 | 470 | 550 | 10 | M20 | 16 | 116.6 |
| 12 | 121.6 | ||||||||||
| 14 | 128.6 | ||||||||||
| 600x400 | 600 | 720 | 800 | 400 | 520 | 600 | 10 | 20 | 136.1 | ||
| 12 | 142.2 | ||||||||||
| 14 | 149.5 | ||||||||||
| 800x600 | 800 | 920 | 1000 | 600 | 720 | 800 | 12 | 26 | 171.5 | ||
| 14 | 182.6 | ||||||||||
| 18 | 206.8 | ||||||||||
| C2 | 800x400 (Oval) | 800 | 930 | 1010 | 400 | 530 | 610 | 12 | 24 | 102.8 | |
| 14 | 118.2 | ||||||||||
| 18 | 146.2 | ||||||||||
| 18 | 76.2 | ||||||||||
