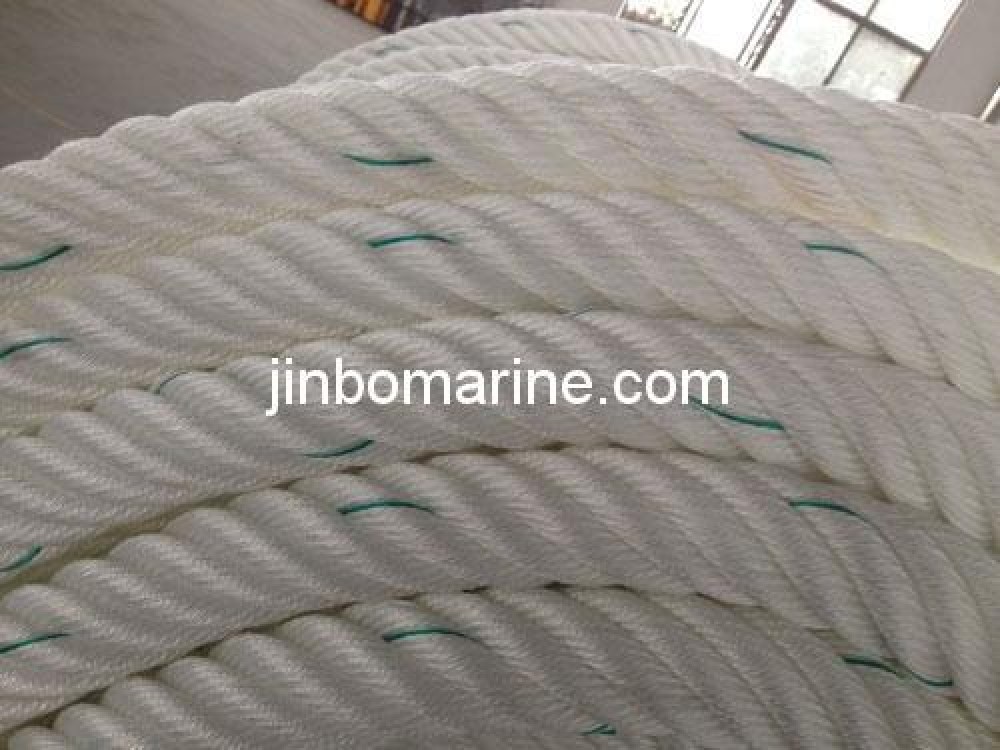

Nylon Single Filament 6 Ply Composite Rope
- Category:Mooring Rope
- Material:nylon
- Standards:International standard
- Certificate:DNV,LR,CCS,BV,GL,ABS,RINA,KR,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Nylon Single Filament 6 Ply Composite Rope.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Nylon Single Filament 6 Ply Composite Rope:
Processed by special technology,it has superior wearing resistance,which is double than that of normal chemical-fiber ropes and cables therefore it has been widely used in mooring and towing of ships and vessels. The product are mainly used in fields of ocean transportation,heavy industry,shipbuilding,petroleum survey and harbor operation etc.
Main Performance:
| Material | Polyamide Multifilament/Nylon Monofilament | Polypropylene Multifilament/Nylon Monofilament | Polyester Multifilament/Nylon Monofilament |
| Density |
1.14 non floating |
0.98 floating |
1.22 non floating |
| Melting point | 215℃ | 165℃ | 260℃ |
| Abrasion resistance | Very good | Good | Very good |
| UV resistance | Very good | Medium | Good |
| Temperature resistance | 120℃ Max | 70℃ Max | 120℃ Max |
| Chemical resistance | Very good | Good | Good |
Parameter Table:
| Specifications | Polyamide Multifilament/Nylon Monofilament | Polypropylene Multifilament/Nylon Monofilament | Polyester Multifilament/Nylon Monofilament | ||||
| Diameter | Circumference | Linear Density(Ktex) | Breaking Strength(KN) | Linear Density(Ktex) | Breaking Strength(KN) | Linear Density(Ktex) | Breaking Strength(KN) |
| mm | Inch | Ktex | KN | Ktex | KN | Ktex | KN |
| 28 | 3 1/2“ | 495 | 156 | 350 | 131 | 594 | 138 |
| 32 | 4“ | 640 | 197 | 485 | 167 | 778 | 177 |
| 36 | 4 1/2“ | 815 | 246 | 615 | 209 | 982 | 219 |
| 40 | 5“ | 1010 | 296 | 755 | 252 | 1215 | 270 |
| 44 | 5 1/2“ | 1260 | 354 | 925 | 303 | 1475 | 321 |
| 48 | 6“ | 1450 | 415 | 1090 | 353 | 1750 | 378 |
| 52 | 6 1/2“ | 1690 | 482 | 1280 | 408 | 2050 | 442 |
| 56 | 7“ | 1970 | 553 | 1490 | 467 | 2380 | 505 |
| 60 | 7 1/2“ | 2250 | 631 | 1710 | 534 | 2730 | 562 |
| 64 | 8“ | 2570 | 712 | 1940 | 603 | 3110 | 653 |
| 72 | 9“ | 3250 | 889 | 2460 | 758 | 3930 | 813 |
| 80 | 10“ | 4020 | 1087 | 3050 | 932 | 4850 | 997 |
| 88 | 11“ | 4870 | 1296 | 3690 | 1118 | 5870 | 1196 |
| 96 | 12“ | 5790 | 1632 | 4380 | 1320 | 6990 | 1415 |
