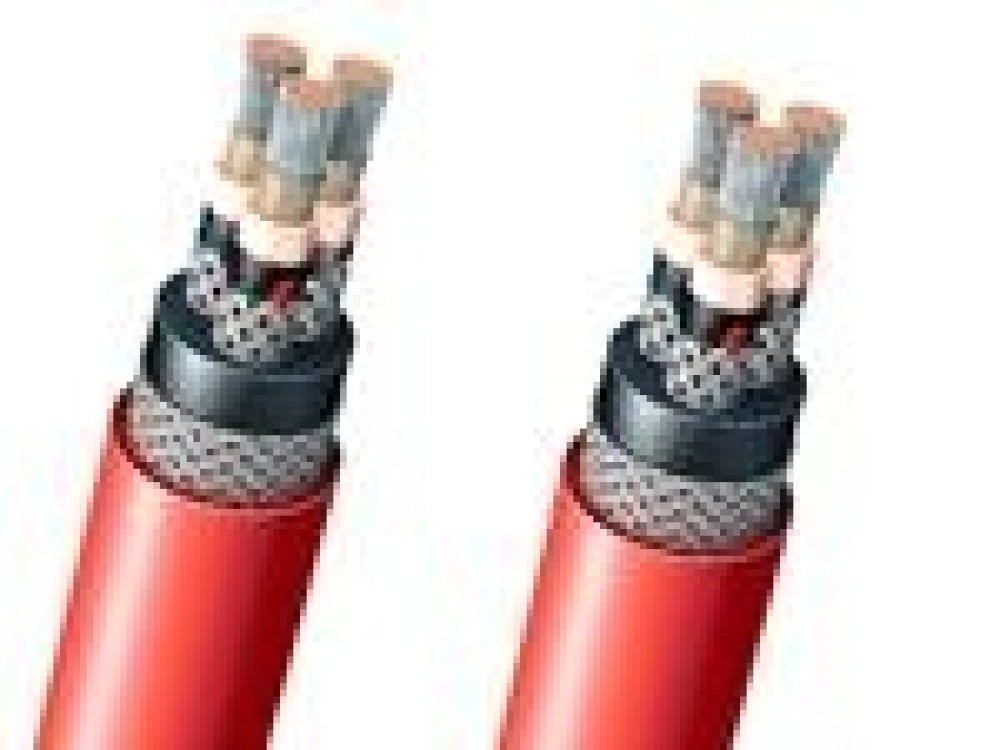

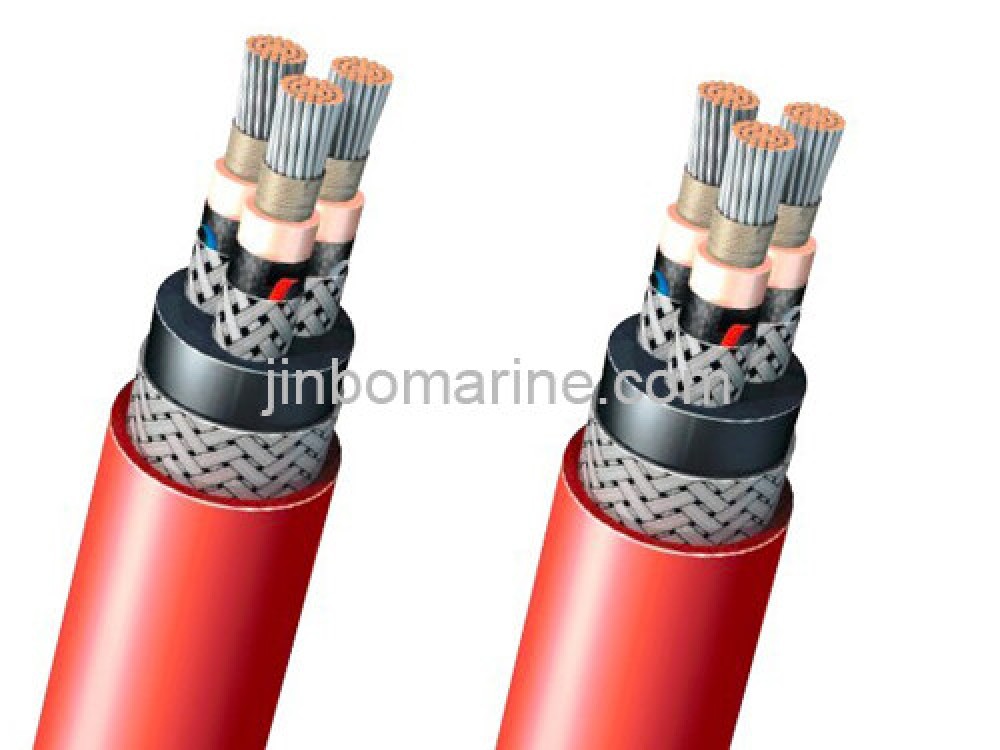

P6 BFOU 3.6/6KV Halogen-free Power Cable (NEK606)

  • Category:NEK606 Cable
  • Material:Tinned Copper/Mica Tape+EPR insulation/SHF1 sheath/Tinned Copper Wire Braided/SHF1
  • Standards:NEK 606-2004
  • Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China P6 BFOU 3.6/6KV Halogen-free Power Cable (NEK606):

P6 BFOU 3.6/6KV Halogen-free Fire-Resistant Cable

P7 BFOU 6/10KV Halogen-free Fire-Resistant Cable

P6/P13 BFOU 3.6/6KV Halogen-free Mud-Resistant Fire-resistant Cable

P7P/14 BFOU 6/10KV Halogen-free Mud-Resistant Fire-resistant Cable

Cable Construction

Classification

Code

Construction details

Conductor

Tinned Annealed Stranded Copper Wire

Conductor Screening

Semi conducting tape

Insulation

B

EP Rubber

Insulation Screening

Semi conducting tape and tinned copper wire braid

Bedding/Inner Covering

F

Halogen-free compound SHF1

Armor

O

Tinned Copper wire braided

Outer Sheath

U

Halogen-free Thermoset compound SHF2

Halogen-free mud resistant thermoset compound, SHF Mud

Standards

Design : IEC 60092-354

NEK 606-2004

IEC 60332-3 Category A

IEC60754-1

IEC 61034-1

Cores & Size

Cores: 1,2,3,4,5, 7,9,10, 12, 14,16,19,24,27,30, 37

Size (sqmm): 1.5, 2.5, 4, 6,10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300

Feature

Halogen-free, Low Smoke, Flame retardant, Mud Resistant

Application:

The cable is fixed installation in explosion risk and safe area; High Voltage power cables for general purposes; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids
