Permanent Chain Chasers
- Category:Chain Chaser
- Material:Casting Steel
- Certificate:Mill Certificate
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Permanent Chain Chasers:

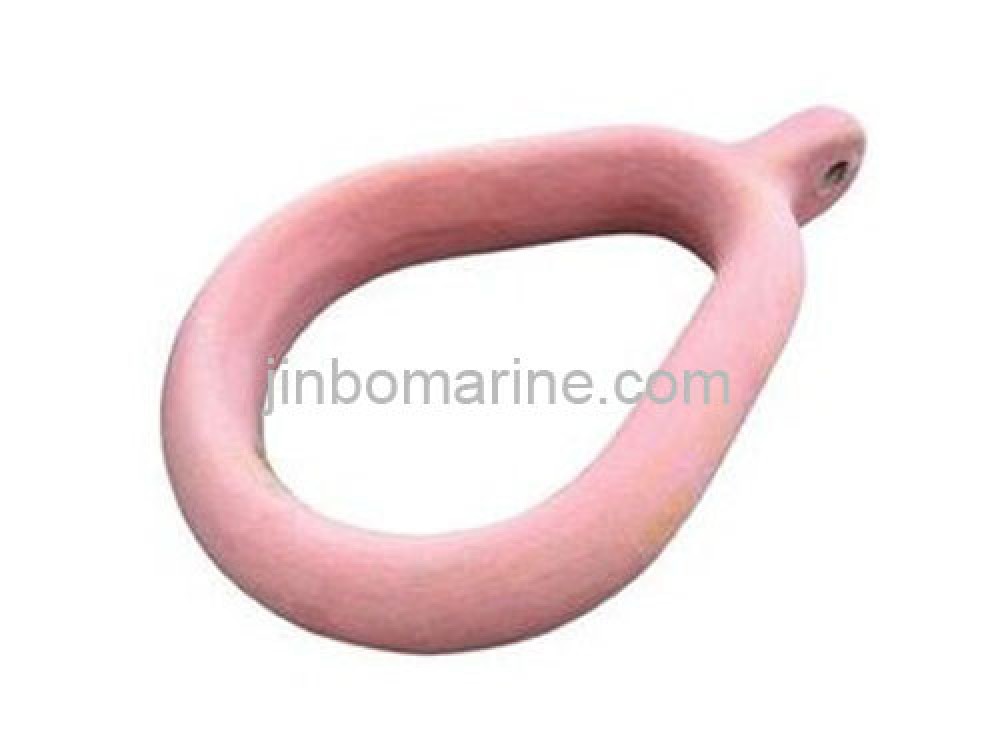

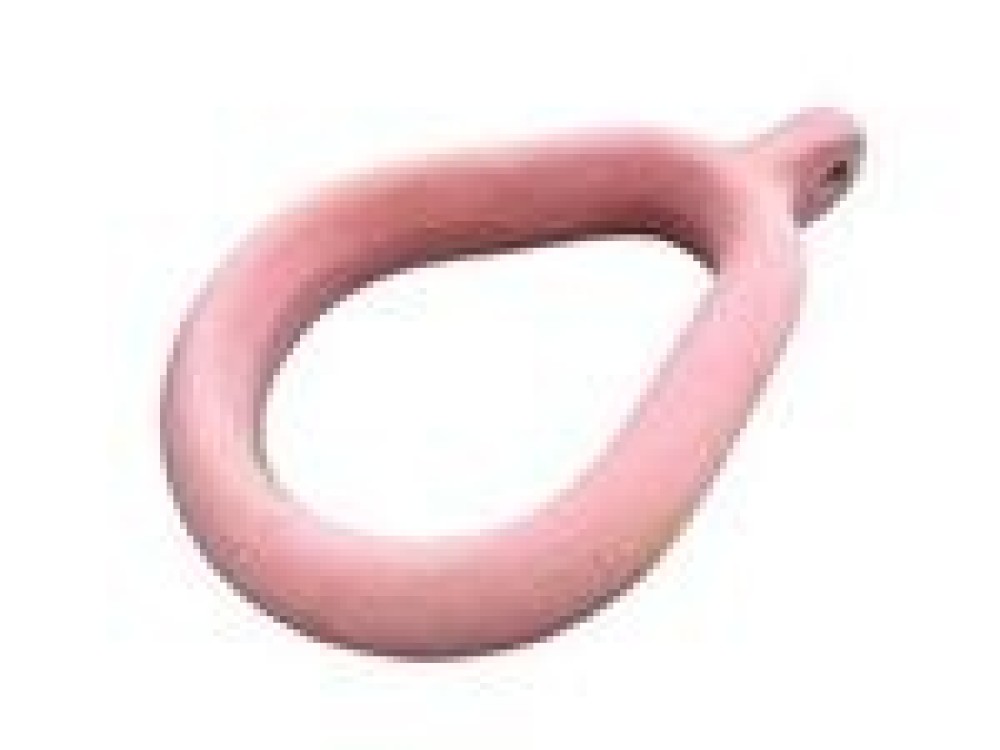

As a practical alternative to the buoy and pennant, permanent chain chasers were introduced. The pear shaped permanent chasers with shackle eye are in widespread use with semi-submersible drilling rigs.
The Permanent Chain Chasers are suitable for anchor to 15tons and 30 tons respectively, chain to 3 1/2inch and 4 1/2inch and Water depth to 200M and more.

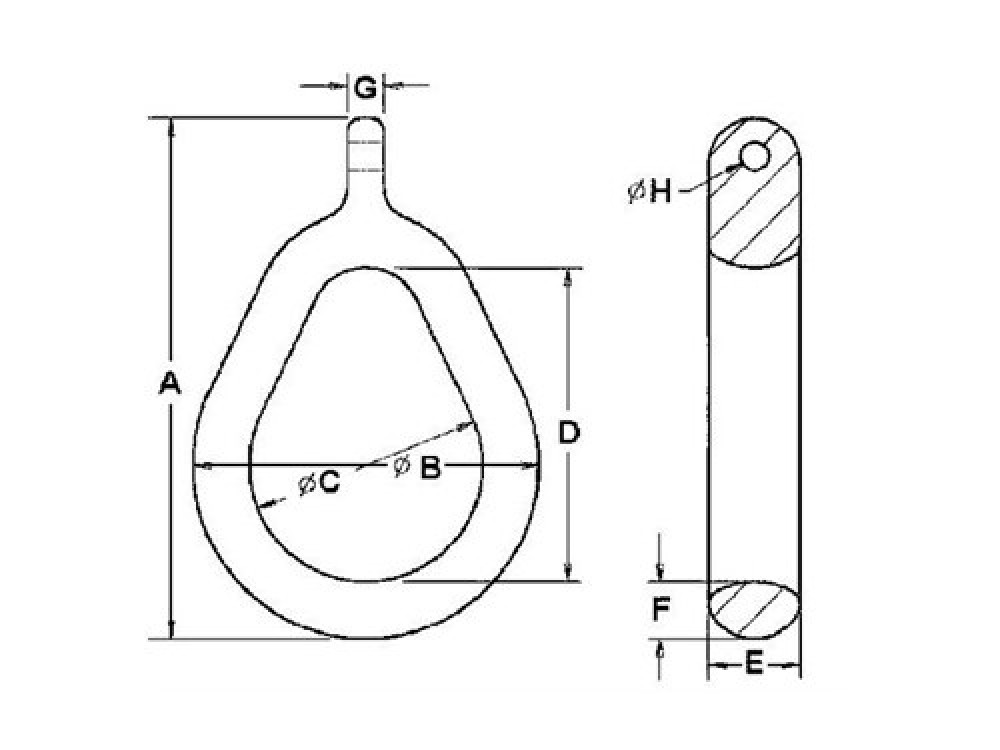

Main specification
| SWL(Ton) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | G(mm) | H(mm) | Proof Load(T) | Weight(kg) |
| 100 | 1657 | 1143 | 991 | 762 | 305 | 124 | 86 | 250 | 1088 |
| 130 | 1702 | 1168 | 991 | 762 | 381 | 130 | 99 | 250 | 1451 |
