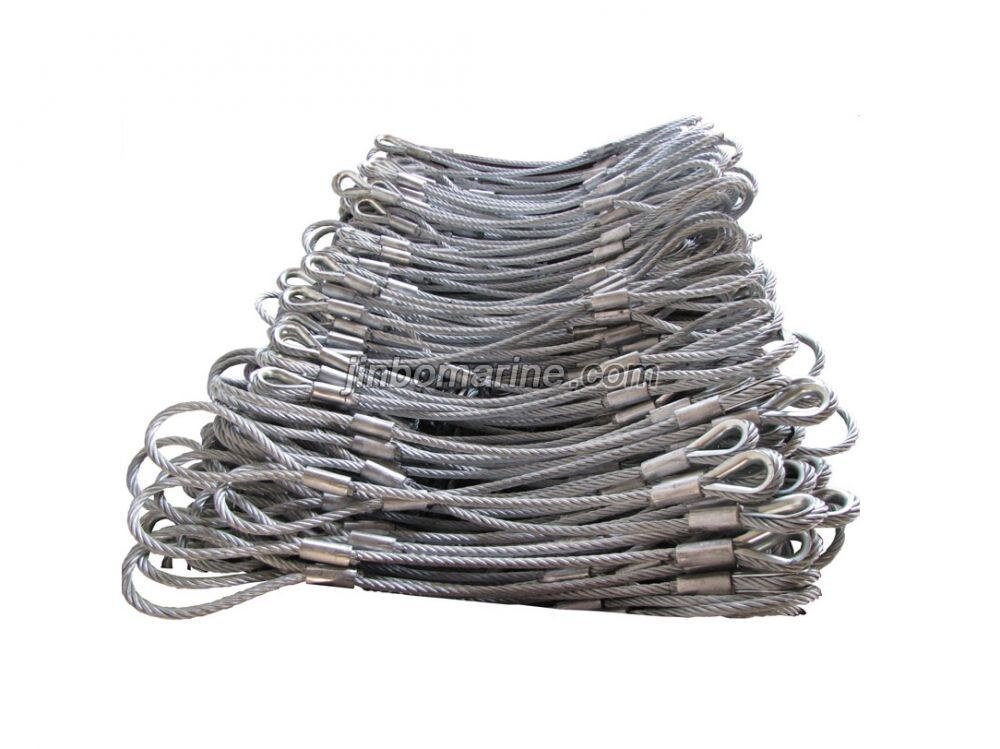

Pressed Steel Wire Rope Sling
- Category:Chain Sling
- Material:Galvanized Steel Wire Rope
- Standards:GB/T16271-1996.
- Packing Details:Standard Export Packaging
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Pressed Steel Wire Rope Sling:
VAF06-L
V- teel wite rope sling

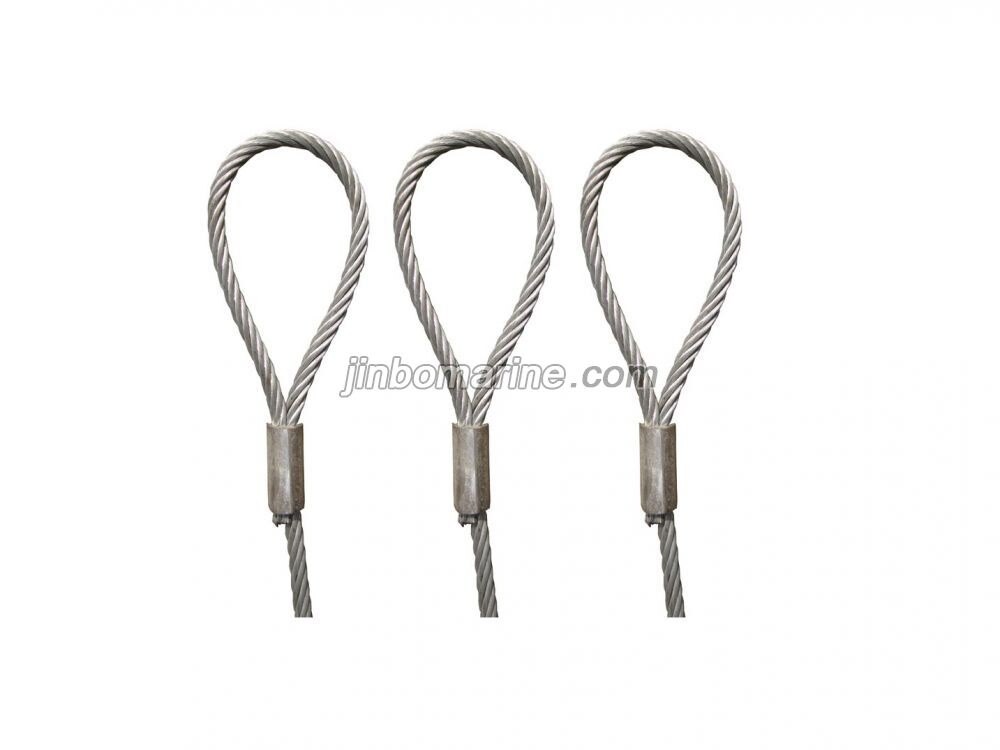

A----- Pressed type (with straight aluminium ferrule without thimble)
F----- Steel wire rope cope(F-FC,W-IWRC)
06-----Steel wire rope core diameter
L----- fective length of steel wire rope
The specification of the steel wire rope used by the following working load in the table:
Dia6mm-60mm use the construction of 6*37(b)-1670
Dia 62mm-120mm use the construction of 8*61(b)-1670
Dia 122mm-190mm use the construction of 8*91(ab)-1670
Different construcrtion of the rope means different working load,we can calculate the working load with the steel wire rope construction that the customer required.
The sling’s breaking load is 5 times of its working load .
The pressed type for the rope with dia 90mm is pressed two aluminium ferrule on each end of the sling.
Producs type |
Dia of rope(d) (mm) |
Working load limit |

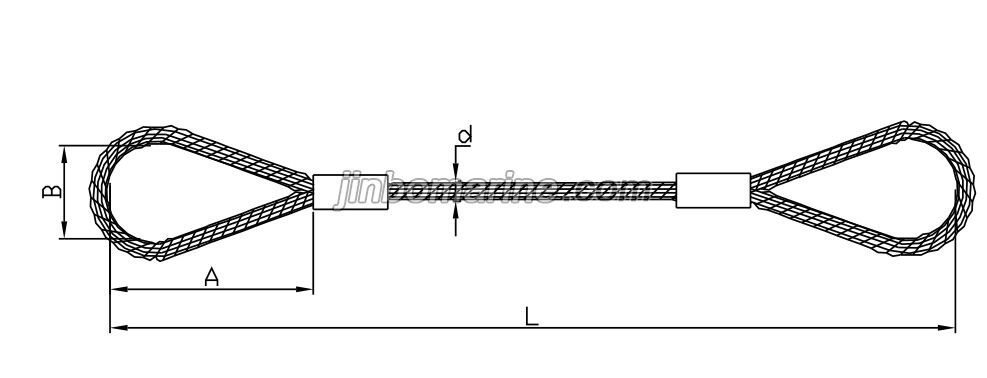

Approx.eye Ength A(mm) |
||
FC | IWR | kN | kN | ||
VAF06 | VBW06 | 6 | 3.2 | 3.4 | 180 |
VAF07 | VBW07 | 7 | 4.3 | 4.7 | 190 |
VAF08 | VBW08 | 8 | 5.7 | 6.1 | 210 |
VAF09 | VBW09 | 9 | 7.2 | 7.8 | 230 |
VAF10 | VBW10 | 10 | 8.9 | 6.9 | 230 |
VAF11 | VBW11 | 11 | 11 | 12 | 250 |
VAF12 | VBW12 | 12 | 13 | 14 | 260 |
VAF13 | VBW13 | 13 | 15 | 16 | 260 |
VAF14 | VBW14 | 14 | 17 | 19 | 280 |
VAF16 | VBW16 | 16 | 23 | 24 | 320 |
VAF18 | VBW18 | 18 | 29 | 31 | 360 |
VAF20 | VBW20 | 20 | 35 | 38 | 400 |
VAF22 | VBW22 | 22 | 43 | 46 | 440 |
VAF24 | VBW24 | 24 | 51 | 55 | 480 |
VAF26 | VBW26 | 26 | 60 | 65 | 520 |
VAF28 | VBW28 | 28 | 69 | 75 | 560 |
VAF30 | VBW30 | 30 | 80 | 86 | 600 |
VAF32 | VBW32 | 32 | 91 | 98 | 640 |
VAF34 | VBW34 | 34 | 102 | 110 | 680 |
VAF36 | VBW36 | 36 | 115 | 124 | 720 |
VAF38 | VBW38 | 38 | 128 | 138 | 760 |
VAF40 | VBW40 | 40 | 142 | 153 | 800 |
VAF42 | VBW42 | 42 | 157 | 169 | 840 |
VAF44 | VBW44 | 44 | 172 | 185 | 880 |
VAF46 | VBW46 | 46 | 187 | 203 | 920 |
VAF48 | VBW48 | 48 | 203 | 220 | 960 |
VAF50 | VBW50 | 50 | 221 | 240 | 1000 |
VAF52 | VBW52 | 52 | 239 | 259 | 1040 |
VAF54 | VBW54 | 54 | 258 | 279 | 1080 |
VAF56 | VBW56 | 56 | 277 | 301 | 1120 |
VAF58 | VBW58 | 58 | 298 | 322 | 1160 |
VAF60 | VBW60 | 60 | 319 | 345 | 1200 |
