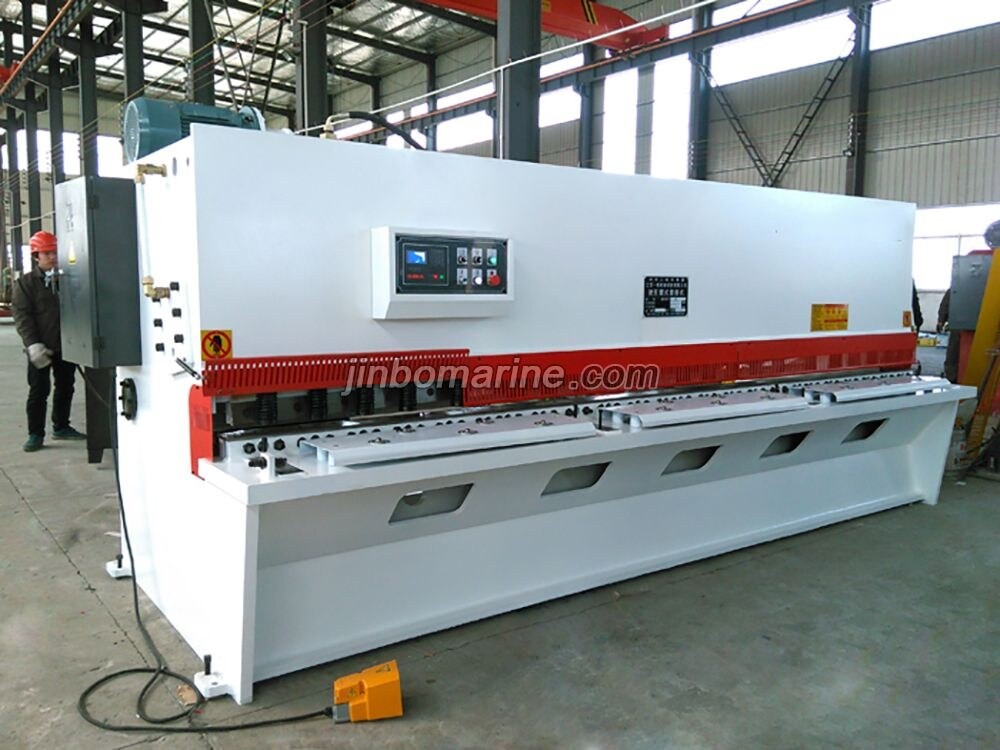

QC12Y Hydraulic Swing Beam Shear For Shipyard

Request a Quote Not what you need, please send your RFQs via Email.

Details

QC12Y Hydraulic Swing Beam Shear Characteristics

1. Steel plate welded construction, hydraulic drive, nitrogen cylinder return.

2. Convenient operation, reliable performance and beautiful appearance.

3.Blade gap adjustment has the instruction board to display. The adjustment is convenient and quick.

4. It has the lighting device and can adjust the travel volume of the up shaft to any extent.

5. Working area has the fence type personal safety protection devices.

6. Back gauge size and cutting times both have the digital display device.

QC12Y Hydraulic Swing Beam Shear Technical Specifications

Model Shearing Shearing Shearing Number of Back gauge Blade L Blade Motor
Thickness(mm) Width(mm) Angle(°) Stroke(min-1) Range(mm) ength(mm) Material Power(KW)
QCQ12Y-4x2000 4 2000 1.5 10-18 20-460 2050 9CrSi 4
QC12Y-4x2500 4 2500 1.5 10-18 20-460 2600 9CrSi 4
QC12Y-4x3200 4 3200 1.5 8-18 20-580 3300 9CrSi 7.5
QC12Y-4x4000 4 4000 1.5 8-12 20-580 4100 9CrSi 7.5
QC12Y-6x2500 6 2500 1.5 10-18 20-580 2600 9CrSi 7.5
QC12Y-6x3200 6 3200 1.5 8-14 20-580 3300 9CrSi 7.5
QC12Y-6x4000 6 4000 1.5 8-12 20-580 4100 9CrSi 7.5
QC12Y-6x4500 6 4500 1.5 8-11 20-580 4600 9CrSi 7.5
QC12Y-6x6000 6 6000 1.5 5-7 20-800 6150 9CrSi 11
QC12Y-8x2500 8 2500 1.5 10-14 20-580 2600 9CrSi 11
QC12Y-8x3200 8 3200 1.5 8-10 20-580 3300 9CrSi 11
QC12Y-8x4000 8 4000 1.5 5-8 20-580 4100 9CrSi 11
QC12Y-10x2500 10 2500 1.5 5-10 20-600 2600 9CrSi 15
QC12Y-10x3200 10 3200 1.5 8-10 20-580 3300 9CrSi 15
QC12Y-10x4000 10 4000 1.5 5-8 20-600 4100 9CrSi 15
QC12Y-12x2500 12 2500 2 5-10 20-580 2600 9CrSi 15
QC12Y-12x3200 12 3200 2 4-9 20-580 3300 9CrSi 15
QC12Y-12x4000 12 4000 2 4-8 20-800 4100 9CrSi 15
QC12Y-16x1500 16 1500 2 8 20-800 1560 9CrSi 22
QC12Y-16x2500 16 2500 2 8 20-800 2600 9CrSi 22
QC12Y-16x3200 16 3200 2.5 4-8 20-800 3300 9CrSi 22
QC12Y-16x4000 16 4000 2 5 20-800 4100 9CrSi 22
