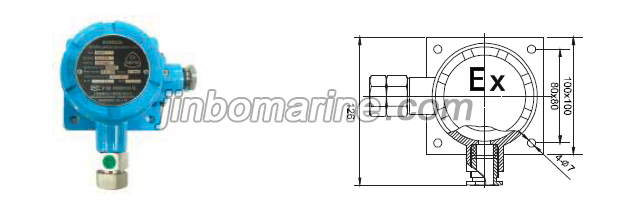

RDKR Hydrocarbon gas detection transmitter

RDKR Hydrocarbon gas detection transmitter is a intrinsically safe combustible gas detectors which current of output is 4-20mA, its gas sensors is Figaro TGS sensors, analog circuit design for the control circuit, with the installation of easy-to-use, performance, stability, a strong vibration-resistant, Preconcentration of gas and the main report to the police and so on. It is to detect flammable gases in the environment and converted to standard signal output .it can be used in shipbuilding industry where needs combustible gas detection of dangerous places.
Output signal: 4~20mA
Display unit: RDYB-204B
Power: DC11~26, 3-wires
Power consumption: 1.2W
Accuracy: +/-3%LEL
Resolution: 1%LEL
Working temperature: 0~50degree


Fixed installation, continuous service
Compatible electromagnetic design, anti-surge, pluse resistance, antistaic, anti-voltage sags
Simple construction, easy installation, reliable operation, nit high pressure, anti ESD
Working temp. Range is -40~+85H
Preventing liquid fluctuation design and optionaly, supply SST protection pipe
