RMC-101 RMC-301 RMC-501 SUPER THIN SINGLE HYDRAULIC CYLINDER
Product Features
1. Low height, suitable for general narrow space operation needs, short lift, can be used for multiple leveling purposes.
2. The outer surface of the spindle is treated with hard chrome to increase its service life.
3. The spindle has an automatic retraction function

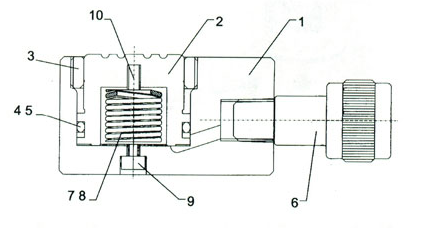

| 10 | PTBOLT | 1 |
| 9 | WRENCH BOLT | 1 |
| 8 | SPRING BOLT | 1 |
| 7 | TENSION SPRING | 1 |
| 6 | COUPLER | 1 |
| 5 | PTFE | 1 |
| 4 | 0-RING | 1 |
| 3 | COVER NUT | 1 |
| 2 | PISTON | 1 |
| 1 | CYLINDER | 1 |
Techincal data:
|
Item NO. |
Product No. |
(T) Tonnage Tons |
(mm) Work travel |
(cm) Cylinder Effective Area |
(L) Oi Capacity |
(mm) Collapsed Holght |
( mm) Extended Height |
(mm) Outside Dia. |
(mm) Cylinder Bore Dia. |
(mm) Plun Dia. |
(ZG) Thread forinput oil-port |
(KG) Welght |
| RMC-101 | 101010 | 10 | 11 | 11.3 | 0.016 | 47 | 58 | 81×56 | 43 | 38 | 3/8"—19 | 1.5 |
| RMC-201 | 102010 | 20 | 11 | 22 | 0.031 | 52 | 63 | 100x77 | 60 | 53 | 3/8"—19 | 2.7 |
| RMC-301 | 103010 | 30 | 12 | 31.1 | 0.05 | 63 | 75 | 115x95 | 75 | 63 | 3/8"—19 | 4.5 |
| RMC-501 | 105010 | 50 | 16 | 56.7 | 0.113 | 69 | 85 | 138x115 | 95 | 85 | 3/8"—19 | 7 |
| RMC-1001 | 101000 | 100 | 16 | 95 | 0.211 | 86 | 102 | 185x160 | 130 | 110 | 3/8”—19 | 15.7 |
