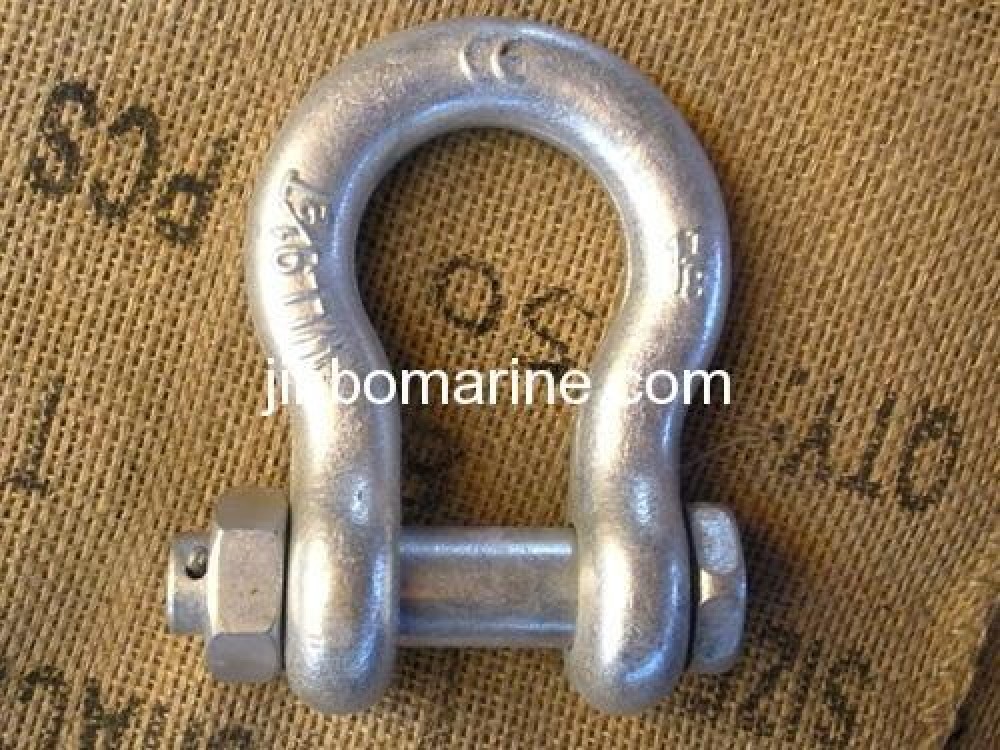

Safety Bow Shackle G2130

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Safety Bow Shackle G2130:

US Type Bolt Anchor Shackle G2130

Forged Shackle

High Tensile force

Standard: U.S Type

4/6 Times Working Load

Main Specification

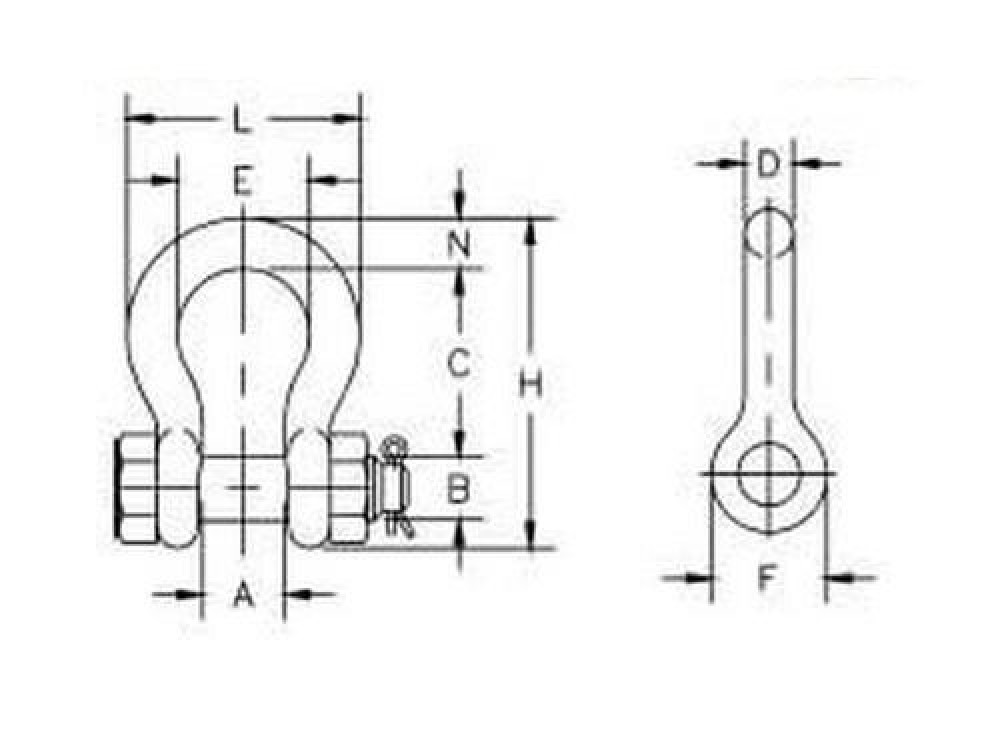

Nominal Size Working Load Dimensions Weight
(in.) (tons) A B C D E F H L N (lbs.)
3/16 1/3 0.38 0.25 0.88 0.19 0.6 0.56 1.47 0.98 0.19 0.06
1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.84 1.28 0.25 0.11
5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 2.09 1.47 0.31 0.22
3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 2.49 1.78 0.38 0.33
7/16 1 1/2 0.75 0.5 1.69 0.44 1.16 1.06 2.91 2.03 0.44 0.49
1/2 2 0.81 0.64 1.88 0.5 1.31 1.19 3.28 2.31 0.5 0.79
5/8 3 1/4 1.06 0.77 2.38 0.63 1.69 1.5 4.19 2.94 0.69 1.68
3/4 4 3/4 1.25 0.89 2.81 0.75 2 1.81 4.97 3.5 0.81 2.72
7/8 6 1/2 1.44 1.02 3.31 0.88 2.28 2.09 5.83 4.03 0.97 3.95
l 8 1/2 1.69 1.15 3.75 1 2.69 2.38 6.56 4.69 1.06 5.66
l 1/8 9 1/2 1.81 1.25 4.25 1.13 2.91 2.69 7.47 5.16 1.25 8.27
l 1/4 12 2.03 1.4 4.69 1.29 3.25 3 8.25 5.75 1.38 11.71
l 3/8 13 1/1 2.25 1.53 5.25 1.42 3.63 3.31 9.16 6.38 1.5 15.83
l 1/2 17 2.38 1.66 5.75 1.53 3.88 3.63 10 6.88 1.62 19
l 3/4 25 2.88 2.04 7 1.84 5 4.19 12.34 8.8 2.25 33.91
2 35 3.25 2.3 7.75 2.08 5.75 4.81 13.68 10.15 2.4 52.25
2.5 55 4.13 2.8 10.5 2.71 7.25 5.69 17.9 12.75 3.13 98.25
3 85 5 3.3 13 3.12 7.88 6.5 21.5 14.62 3.62 154
3.5 120 5.25 3.76 14.63 3.62 9 8 24.88 17.02 4.38 265
4 150 5.5 4.26 14.5 4 10 9 25.68 18 4.56 338
