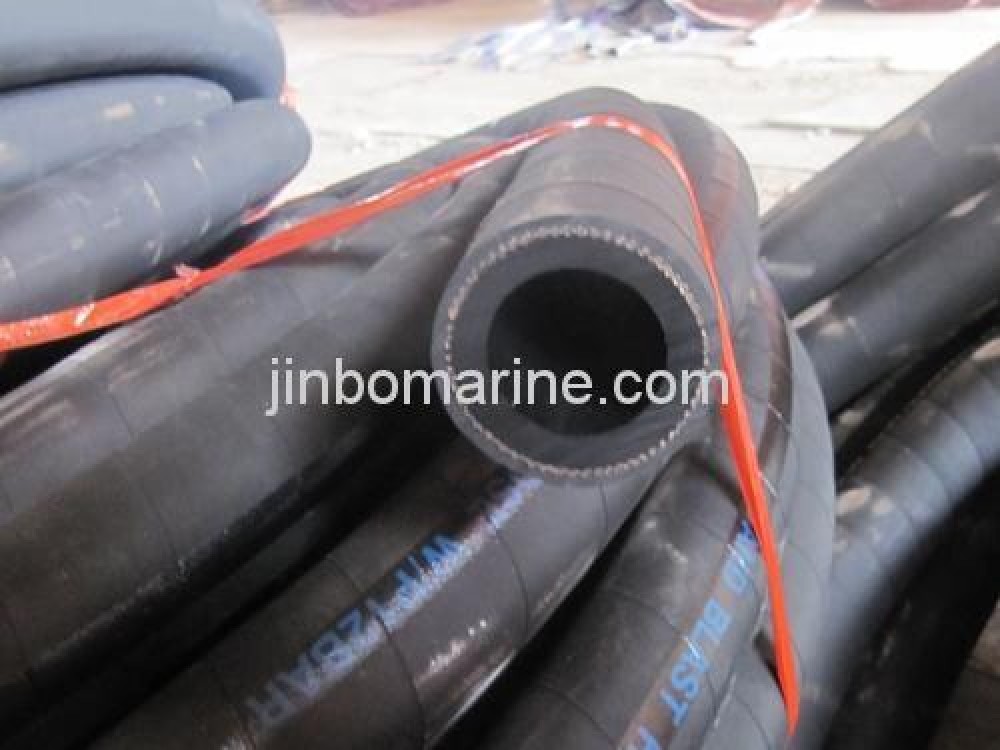

Sandblasting Hose

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Sandblasting Hose:

Used casting, steel, stone, sand, cement and other abrasive amterial in sandblacking service

Characteristics: high tensile; wear, weather, ozone and aging resistance

Working temperature: -20 TO 80℃

Safety Factor: 1:3

Hose Lining: NR, SBR, BR Blend

Reinforcement Layer: Tire cord with helix wire

Cover Rubber Layer: SBR

Main Specification

ID OD Length Bend radium WP Weight
in mm in mm ft m in mm Psi Kg/cm² Kg/m
1 25.4 1.701 43.2 200 60 6 150 200 15 1.38
1 1/4 31.8 1.953 49.6 200 60 8 200 200 15 1.6
1 1/2 38.1 2.232 56.7 200 60 10 250 200 15 1.91
2 50.8 2.772 70.4 200 60 12 300 150 10 2.6
2 1/2 63.5 3.272 83.1 200 60 15 375 150 10 3.1
3 76.2 3.811 96.8 200 60 20 500 150 10 3.95
4 101.6 5.047 128.2 200 60 28 700 150 10 6.48
5 127 6.091 154.7 100 30 40 1000 150 10 8.48
6 152.4 7.177 182.3 100 30 48 1200 150 10 11.07
