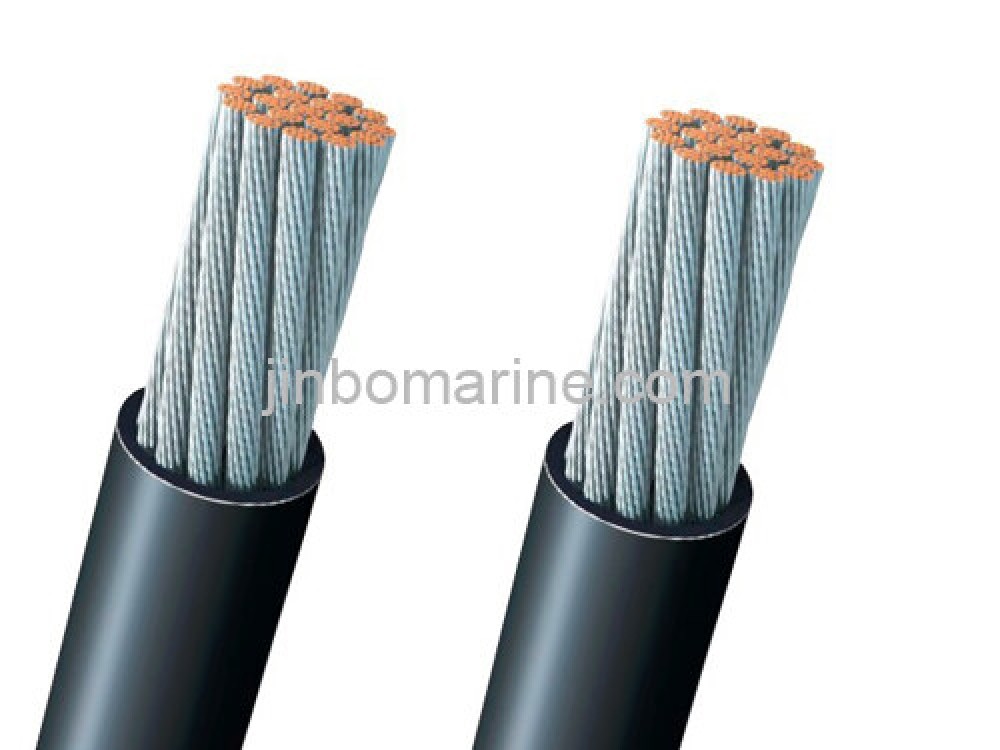

SCP Switch board Cable
- Category:JIS C 3410 Cable
- Material:Tinned Copper/XLPE insulation
- Standards:JIS C 3410-1999
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China SCP Switch board Cable:
JIS C 3410-1999 Switchboard Cable
SCP Switch Board Cable
Conductor: Tinned Copper Wire
Insulation: XLPE insulation
Sheath: PVC Sheath
Design : JIC C 3410(1999)
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Cores & Size
Number of Conductor: 1 Core
Size of Conductor (mm2):1, 1.5 2.5 4 6 10 16 25 35 50
Maximum Working Voltage and Testing Voltage
| Nominal voltage (V) | Maximum working voltage (V) | (Test voltage) V/min. | |
| a.c | d.c | ||
| 250V | 250V | 450V | 1500/5 |
| 0.6/1 kV | 0.6/1 kV | 0.9/1.5kV | 3500/5 |
Minimum Bending Radius
The bending radius for the installation of cables should be not less than the values given as follows：
| Type of cable | Minimum bending radius |
 |
|
| Up to 1.8/3kV | Unarmored or unbraided |
|
|
| D ≤ 25mm | 4XD | ||
| D > 25mm | 6XD | ||
| Metal braid screened or armored | 6XD | ||
| Tape screened | 8XD | ||
| 3.6/6kV | Single core | 12XD | |
| above | 3-core | 9XD | |
