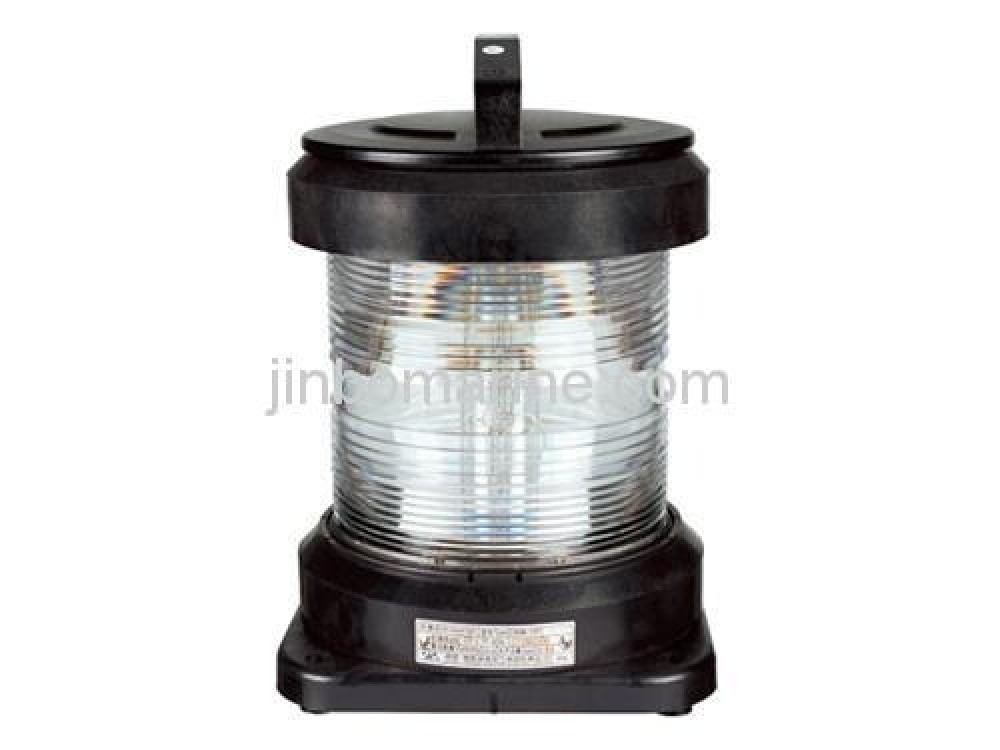

Single-Deck Navigation Signal Light CXH-11P
- Category:Marine Navigation Signal Light
- Material:Engineering Plastic, Steel, Stainless Steel
- Standards:IEC60598-1-2008
- Certificate:CCS Type Approval Certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Single-Deck Navigation Signal Light CXH-11P:
The Navigation Signal Light used to the ship with length50M or above as lamp signal liaison when night navigation.
Product Advantage:
1. The signal lights have the seal structure, waterproof under the extreme enviroment.
2. The sheel is made of high-strength engineering plastic PA+GF, the lamp shade use injection of PC, lens hood of good quality
3. Special light bulb with average life up to 700hrs.
4. Working Temperature:-30℃-55℃
Standards:
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Voltage | 24V | 110V | 220V |
| Power | 60W | 60W | 60W |
| Luminous Intensity | 60cd | ||
| Lamp Holder | P28S | ||
| Protection Class | IP56 | ||
| Cable Outside Diameter | Dia.9 | ||
| Name | Type | Visibility | Level Arc | Color | Weight |

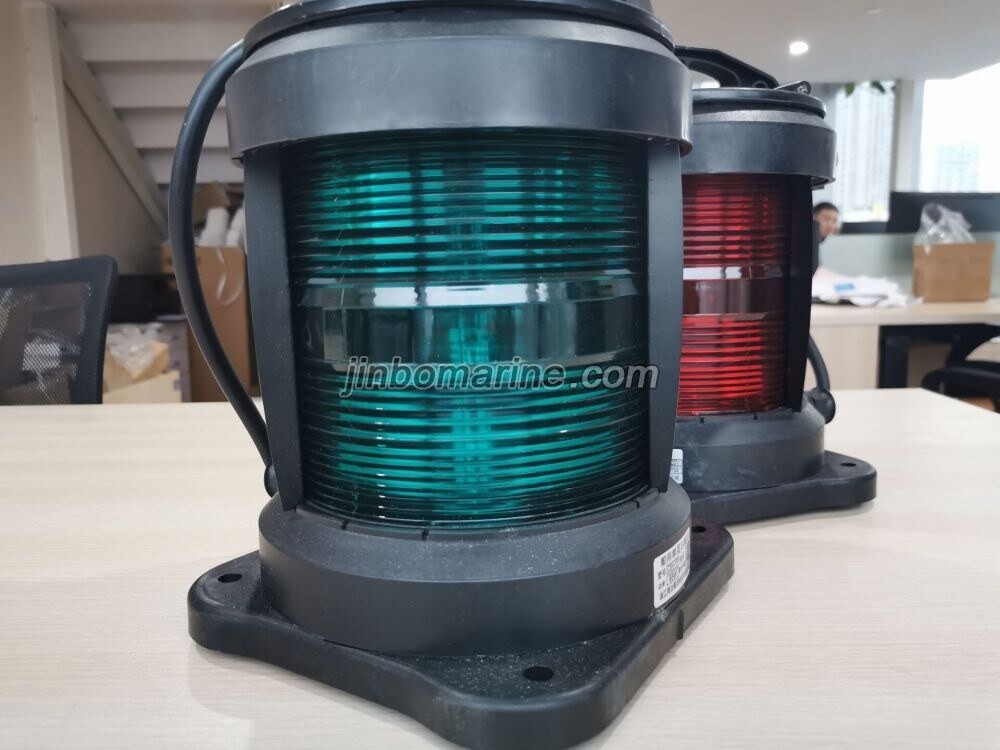

| Starboard Light | CXH1-11P | 3n.m | 112.5o | Green | 3.2KGS |

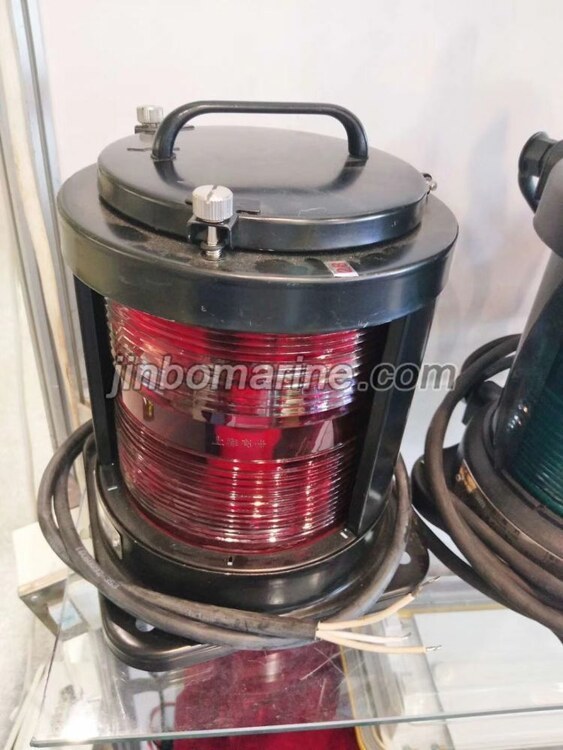

| Port Light | CXH2-11P | 3n.m | 112.5o | Red | 3.2KGS |

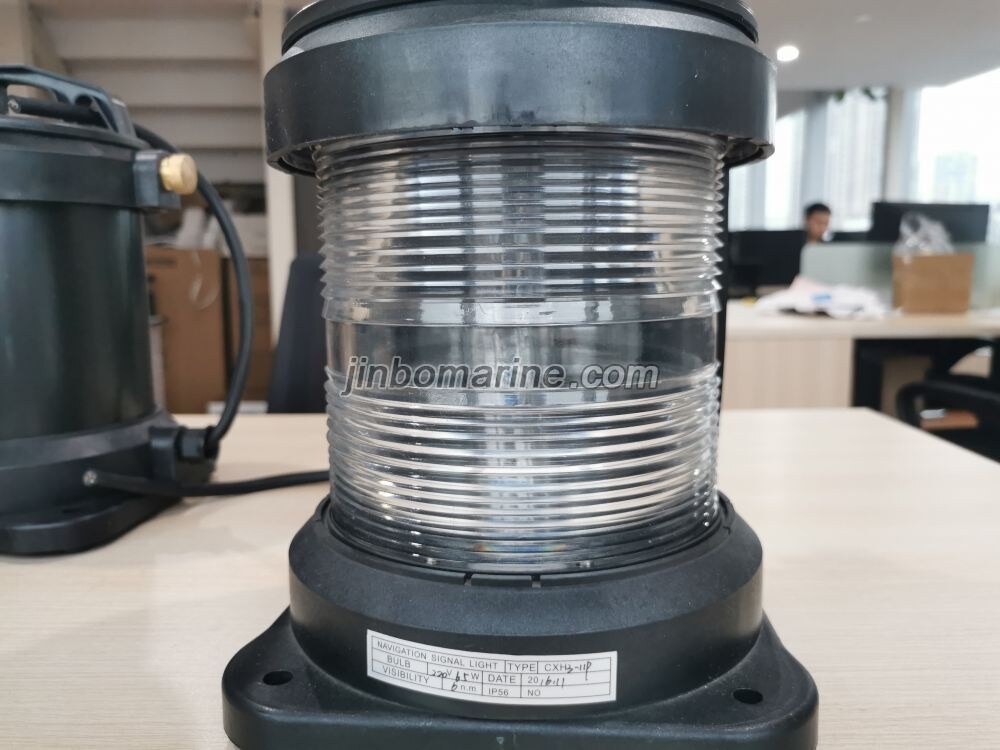

| Masthead Light | CXH3-11P | 6n.m | 225o | White | 3.2KGS |
| Stern Light | CXH4-11P | 3n.m | 135o | White/Yellow | 3.2KGS |
| All-round- Light | CXH6-11P | 3n.m | 360o | Red/green/white | 3.2KGS |
The description/sizes may be different with goods, please check with us when order.
