U Type Rubber Fender

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

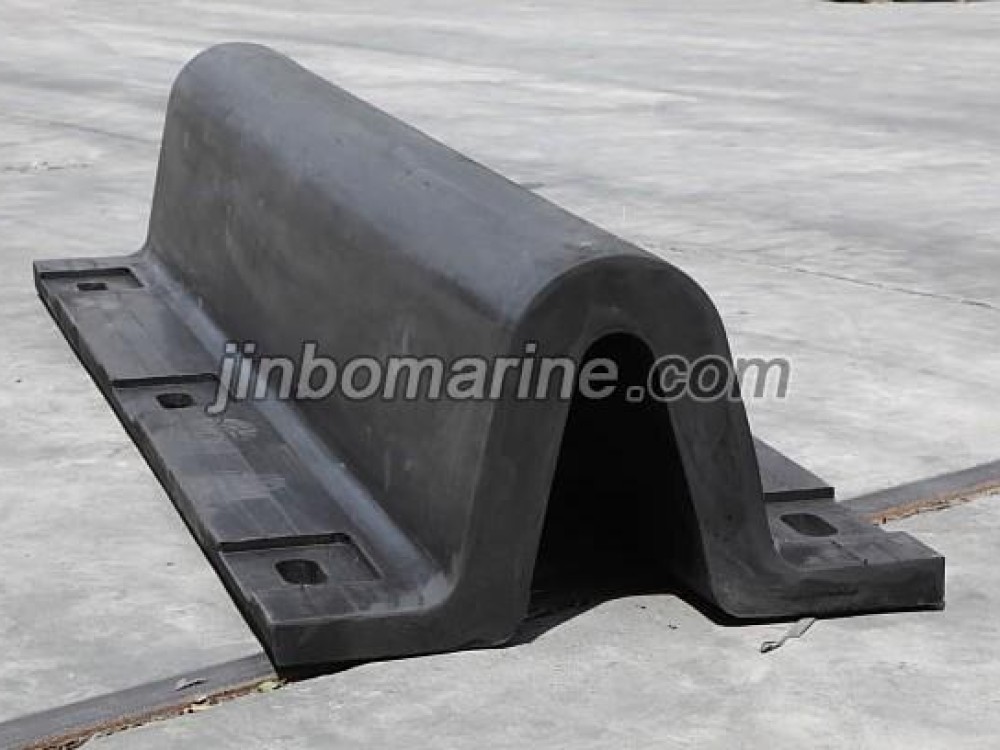

China U Type Rubber Fender:

The U type marine rubber fender is typically mounted to a dock or a ship to counteract the collision force between the dock and the ship generated during mooring and berthing, thus preventing ships and docks from being damaged.

Feature:

1. This type of rubber fender features high energy absorption performance and proper reaction force.
2. With high strength construction parts, it offers long service life.
3. It is easy for replacement.

Specifications of U Type Marine Fender

Type

H

h

B

B1

C

Q

e

f

d

g

U300H×1500L

300

35

540

430

150

600

60

90

32

80

U300H×900L

Performance

Reaction Force

Unit

Measured data

CompressiveDeflection

50.0%

Tons/M

33

CompressiveDeflection

62.5%

Tons/M

40

Energy Absorption

CompressiveDeflection

50.0%

Tons/M

1.6

CompressiveDeflection

62.5%

Tons/M

2.9
