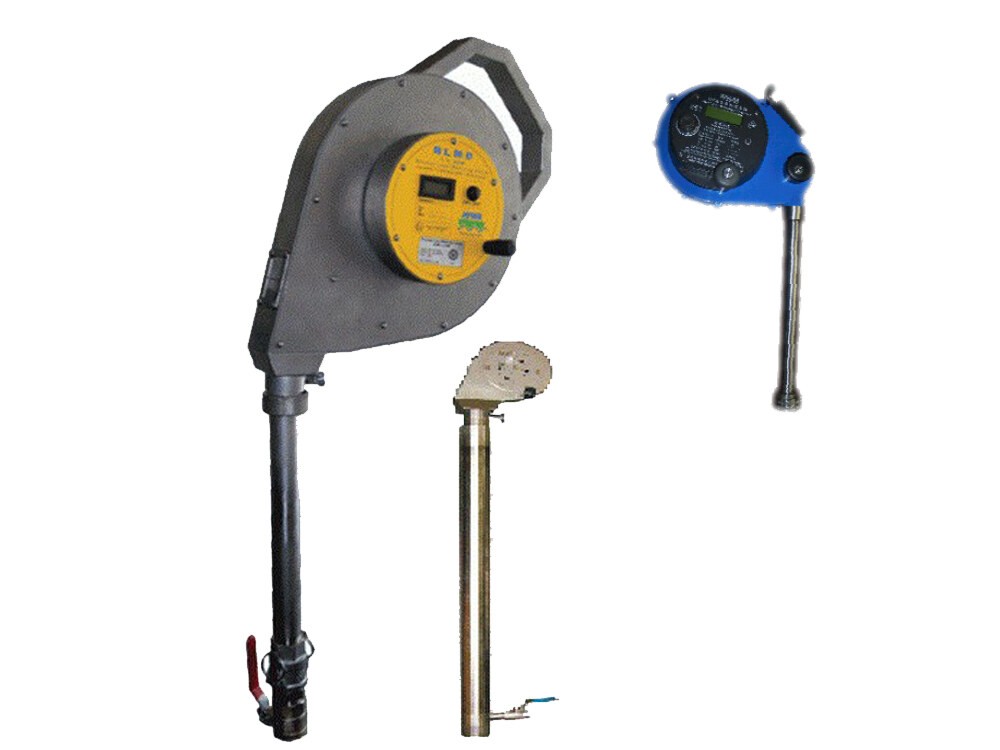

UIT Poratable Oil Water Interface Detector

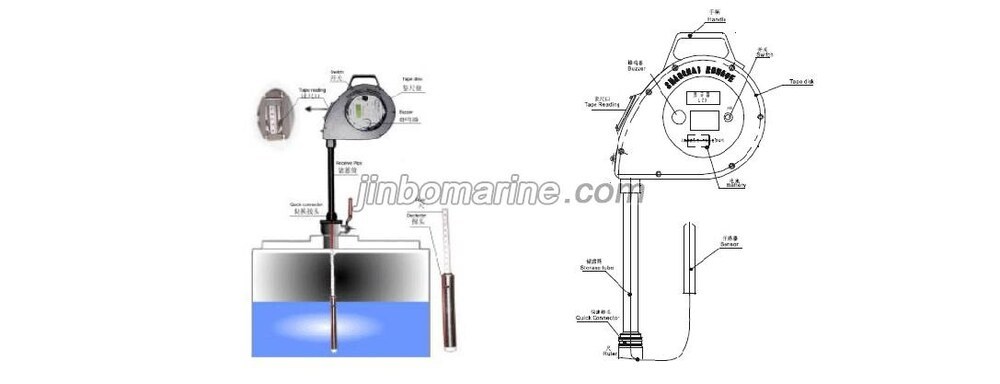

UIT Portable Oil Water Interface Detector is composed of probe, rule and display unit. It is mainly used to measure the oil level or water level in a tank, as well as temperature of oil or water.

A. GB/T 12921-1991 SHIPPING OILWATER INTERFACE DETECTOR SPECIFICATIONS
B. MEPC5(XII) OILWATER INTERFACE DETECTOR SPECIFICATIONS,OPEN TAPE UTI
The device is with CMC certificate, Explosion certificate, CCS certificate and LR certificate.

The device's tape and probe is patent authority.

• Measuring accuracy :< ±10mm
• Display mode: hearing type
• Tape length: 15m, 30m
• Tape format Metric system minimum scale 1mm
• Minimum detector level surface: 6mm
• Ambient temperature:－25℃～70℃
• Medium temperature:－25℃～110℃
• Density contrast range:0.06~0.25g/cm3
• Tape accuracy: I
• Reaction time :< 3s
• Ex-proof rank: Exia II BT4
• Shell protection level: detecting head with X8, the shell of display device with IP44
• Interface standard: quick-change coupler B50 JB/ZQ 4078-1997
