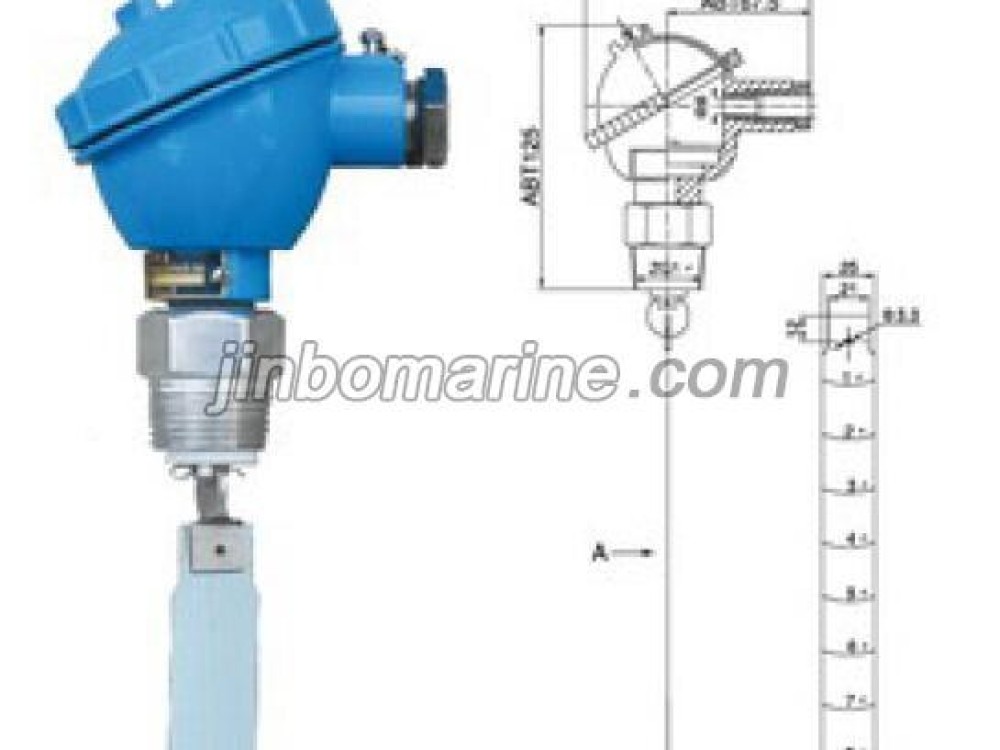

UQK Type Flow Direction Switch
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,NK,DNV,RINA,KR and EC certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
UQK Type Flow Direction Switch utilize flow liquid push the blade to make deflection,magnetic steel drive the magnetic swith motion to create an output signal. It is used to monitoring or alarming liquid flow direction in ballast pipe and oil water pipe of ship.
Main Technical Specification:
Suitable pipe diameter: above 2"
Repeat action error: equal or less than 5%
Blade material:SUS316 / Titanium alloy
Contact capacity:AC220V 0.5A
Maximum allowed pressure:1.5Mpa
Contact type:SPST
Setting action point tolerance:equal or less than ±10%
Working temperature:0-70 centigrade
Connection type:ZG1"/ 1 NPT
Protection: IP56
