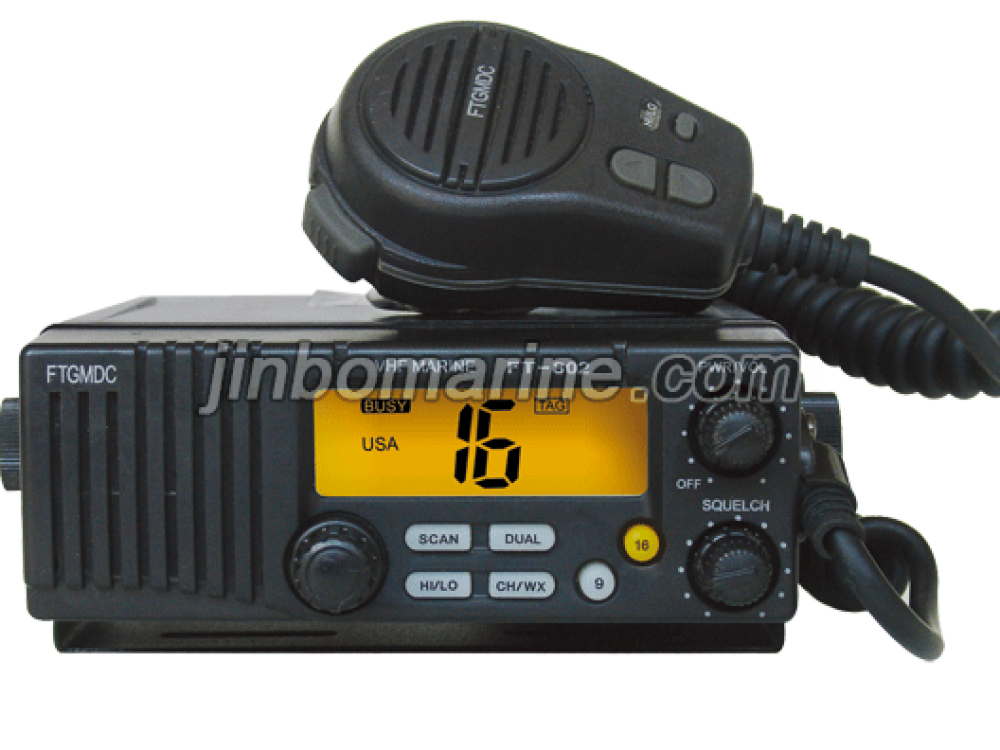

VHF
- Category:Marine Communication And Navigation Equipment
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
VHF
(1).
Main function :
1.Dual -Watch and Tri-Watch
2.All US, International and Canadian , 10 Weather Channel
3.One button change Channel 16 and Channel 9
4.Except 88 dedicated channels , user-program 100 channels.
5.Priority scan
2.All US, International and Canadian , 10 Weather Channel
3.One button change Channel 16 and Channel 9
4.Except 88 dedicated channels , user-program 100 channels.
5.Priority scan
(2).Overall Specifications
1.Frequency range：Tx 156MHz-157.5MHz
Rx 156MHz-163MHz
2.All US, International and Canadian , 10 Weather Channel
3Number of channels：88 channel
4.Channel spacing：25KHz、50KHz
5.Modulation method：FM（16K0J3E)
6.Operating temperature range: –20°C to +60°C
7.Power Supply ：DC 13.8V
8.Dimensions：140（W）×55（H）×155（D）mm
9.Weight：1.0Kg
Rx 156MHz-163MHz
2.All US, International and Canadian , 10 Weather Channel
3Number of channels：88 channel
4.Channel spacing：25KHz、50KHz
5.Modulation method：FM（16K0J3E)
6.Operating temperature range: –20°C to +60°C
7.Power Supply ：DC 13.8V
8.Dimensions：140（W）×55（H）×155（D）mm
9.Weight：1.0Kg
(3).
Transmitter Specifications :
1.Output power：25W / 1W
2.Frequency tolerance：≤±10ppm
3.Modulation limit：≤±5KHz
4.Spurious emissions：≤-65dB
5. Tx Current consumption：High power ≤ 6.0A , Low power ≤ 1.5A（DC13.8V）
6.Audio distortion：≤ 7%
2.Frequency tolerance：≤±10ppm
3.Modulation limit：≤±5KHz
4.Spurious emissions：≤-65dB
5. Tx Current consumption：High power ≤ 6.0A , Low power ≤ 1.5A（DC13.8V）
6.Audio distortion：≤ 7%
(4).
Receiver Specifications :
1.Reference sensitivity：≤ 0.2μV（12dB）
2.Squelch sensitivity threshold：≤ 0.15μV
3.Modulation receiving bandwidth：≥ 2×5KHz
4.Adjacent Channel Selectivity：≥ 65dB
5.Inter modulation rejection ratio：≥ 58dB
6.spurious response：≥ 65dB
7.Audio output power：≥2.5W（8Ω）
8.Audio distortion：≥ 7%
2.Squelch sensitivity threshold：≤ 0.15μV
3.Modulation receiving bandwidth：≥ 2×5KHz
4.Adjacent Channel Selectivity：≥ 65dB
5.Inter modulation rejection ratio：≥ 58dB
6.spurious response：≥ 65dB
7.Audio output power：≥2.5W（8Ω）
8.Audio distortion：≥ 7%
